A1 Auto Parts 325-235-2420 a1auto@a1-autoparts.com 10525 S IH 20 Sweetwater TX 79556

Share to Facebook

A/C Heating

57955

FOUR SEASON

Click Image for Larger View
(Images are representative only and may not reflect the actual product)

❮ ❯

1 / 7


2 / 7


3 / 7


4 / 7


5 / 7


6 / 7


7 / 7


Price:

List:

Shipping:

In Stock: 0

We request registration so we can make sure you receive the right parts
and to properly estimate shipping and handling.
Returns, defects and other issue can arise.
This allows us to handle issues with out much involvement from you.
We aim to be as thorough and speedius as possible.
If you have any questions you can contact us at 325-235-2420

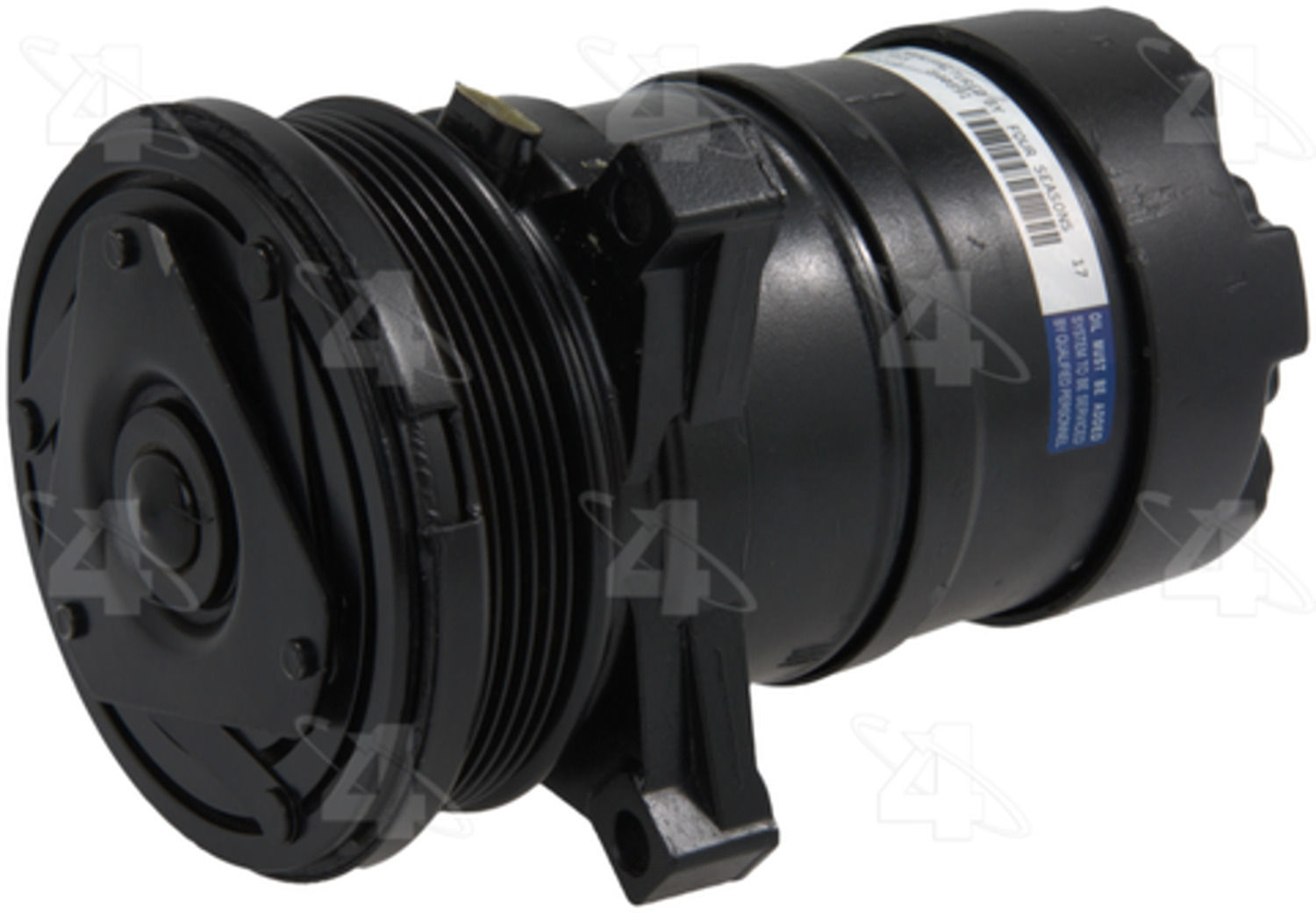

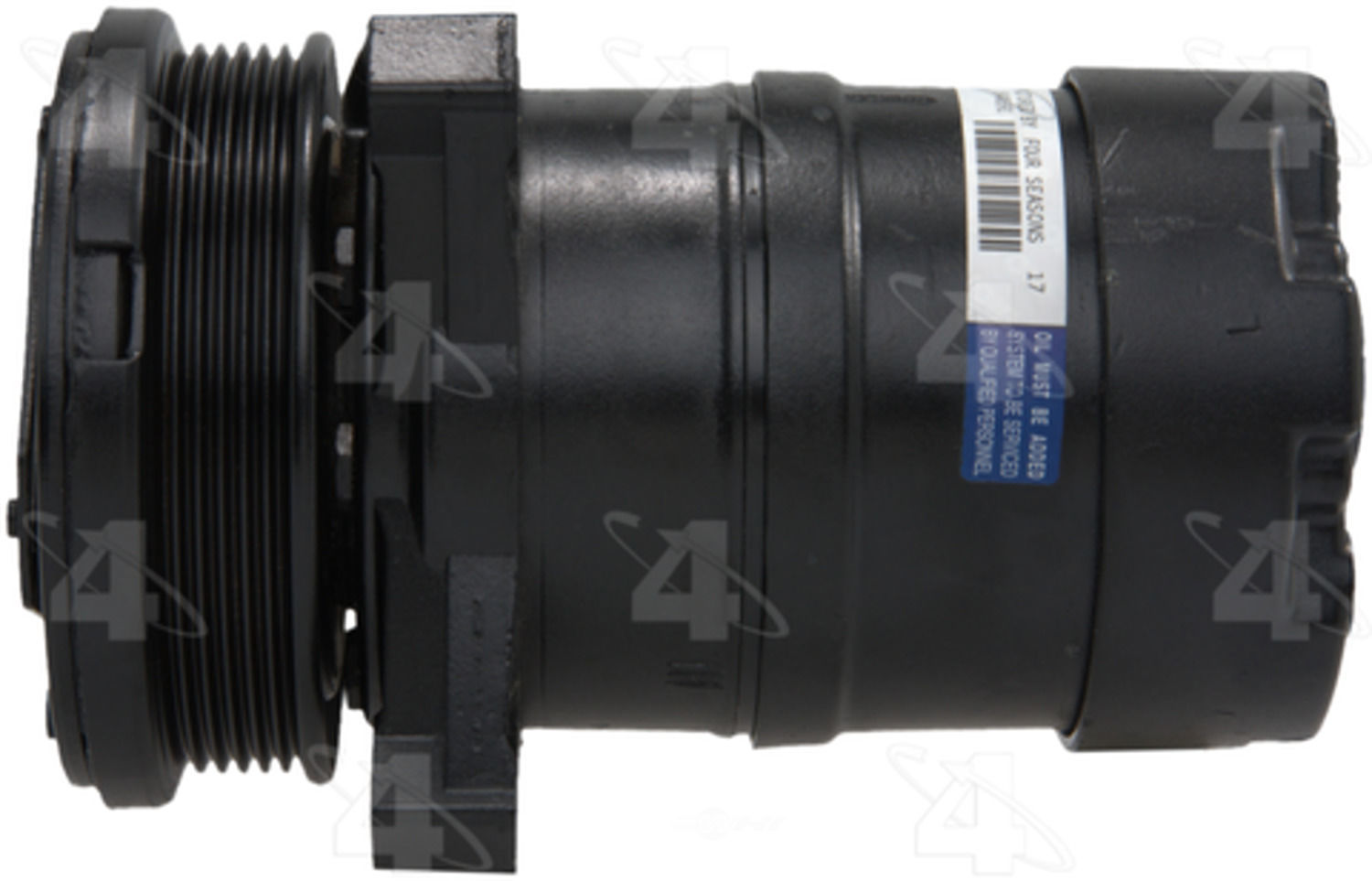

GM HD6 w/ Clutch Reman Compressor A/C Compressor (Remanufactured)

Remanufactured compressors are 100 percent tested to ensure compressor function and noise level meets or exceeds OE specifications Remanufactured compressors come with the R12/R134A/1234yf required O-rings /sealing washers to install the compressor Remanufactured Compressors are built in a ISO9001:2015 Certified facility to ensure consistent quality standards in the Re-manufacturing process Remanufactured compressors are individually vacuum and pressure tested to ensure no leaks Remanufactured compressors come pre-charged with 3 ounces of PAG oil for R134a or R1234yf applications Additional Info: Reman GM HD6 Compressor w/ Clutch Our products are engineered and tested to provide years of trouble free operation. Backed by over 50 years of mobile a/c experience, fix it once and fix it right with Four Seasons. 1. Package Dimensions: 7.75 x 11.38 x 7.00 inches 2. Package Weight: 15.99 lb 3. Package Quantity: 1 4. UPC: 096361579552 5. Clutch Included: Included 6. Clutch Maximum Diameter: 5.000 in 7. Coil Clock Position: 10 8. Coil Voltage: 12 2H 9. Compatible Refrigerant Oil Type: PAG 150 10. Compressor Type: HD6 11. Distance From Clutch To Mounting Flange: 0.59 in 12. Electronic Control Valve: No 13. Mounting Hardware?: Not Included 14. Mounting Type: Type XIII (All Ears w/o Threads) 15. New or Reman: Remanufactured 16. O-Ring A Number/Desc: [24354] / Sealing Washer 17. O-Ring A Quantity: 2 18. O-Ring B Number/Desc: N/A 19. O-Ring B Quantity: N/A 20. Oil Filled: Included 21. Pulley Belt Type: Serpentine 22. Pulley Diameter MM: 127 mm 23. Pulley Groove Quantity: 6 24. Pulley Lip Diameter: 5.000 in 25. Pulley Ridge Diameter: 5.000 in 26. Refrigerant Type: R134a 27. Suction Port Type: Sealing Washer 28. Terminal Type: Pin 29. Type: GM 30. Country of Origin: MX 31. Remanufactured Part: Y

Specifications

Height: 11.38"

Width: 7.75"

Length: 7.00"

Weight: 1 LB

Re-manufactured or New: Remanufactured

From-To:		Make:	Model:	Sub:	Engine:	Notes:
1994	1996	Buick	Commercial Chassis	all	5.7L	A/C Compressor; V8 VIN:P; PerVeh: 1;
1994	1996	Buick	Roadmaster	all	5.7L	A/C Compressor; V8 VIN:P; PerVeh: 1;
1994	1996	Cadillac	Commercial Chassis	all	5.7L	A/C Compressor; V8 VIN:P; PerVeh: 1;
1994	1996	Cadillac	Fleetwood	all	5.7L	A/C Compressor; V8 VIN:P; PerVeh: 1;
1993	1995	Chevrolet	Camaro	all	3.4L	A/C Compressor; V6 VIN:S; PerVeh: 1;
1993	1994	Chevrolet	Camaro	all	5.7L	A/C Compressor; V8 VIN:P; PerVeh: 1;
1995	1996	Chevrolet	Camaro	all	5.7L	A/C Compressor; V8 VIN:P; PerVeh: 1;
1997	1997	Chevrolet	Camaro	all	5.7L	A/C Compressor; V8 VIN:P; PerVeh: 1;
1994	1996	Chevrolet	Caprice	all	4.3L	A/C Compressor; V8 VIN:W; PerVeh: 1;
1994	1996	Chevrolet	Caprice	all	5.7L	A/C Compressor; V8 VIN:P; PerVeh: 1;
1994	1994	Chevrolet	Commercial Chassis	all	5.7L	A/C Compressor; V8 VIN:P; PerVeh: 1;
1994	1996	Chevrolet	Impala	all	5.7L	A/C Compressor; V8 VIN:P; PerVeh: 1;
1993	1995	Pontiac	Firebird	all	3.4L	A/C Compressor; V6 VIN:S; PerVeh: 1;
1993	1993	Pontiac	Firebird	all	5.7L	A/C Compressor; V8 VIN:P; PerVeh: 1;
1994	1997	Pontiac	Firebird	all	5.7L	A/C Compressor; V8 VIN:P; PerVeh: 1;

Information
86953142
4S_306_Guide_to_Comp_Compatibility
AB327_Work_in_the_Winter
AB_339_Shaft_Seal_Lubrication
4S_303_Bearing_Failures
4S_316_GM_Compressor_Noise
AB336_Tech_Tip_Clutch_Coil_Diagnosis
4S_399_GM_Diode_Installation
AB_325_H_6_Series_Compressor_Body_Leaks
FS_429_Mid-Year_Part_Change
4S_388_Replacing_Compressor_Assembly_vs_Clutch
AB_344_Compressor_Shaft_Nut_Elimination
AB_346_Break_Away_Torque_and_the_Spanner_Wrench

GENERAL MOTORS CORP	1136077
GENERAL MOTORS CORP	1136411
GENERAL MOTORS CORP	1136491
GENERAL MOTORS CORP	1136488
GENERAL MOTORS CORP	1136508
GENERAL MOTORS CORP	1136515
GENERAL MOTORS CORP	1136516
GENERAL MOTORS CORP	1136530
GENERAL MOTORS CORP	1136535
GENERAL MOTORS CORP	19192527
GENERAL MOTORS CORP	19169357
GENERAL MOTORS CORP	19188306
GENERAL MOTORS CORP	89019368
GENERAL MOTORS CORP	52499051
GENERAL MOTORS CORP	89019226
GENERAL MOTORS CORP	88999295
GENERAL MOTORS CORP	89018936
GENERAL MOTORS OE	89018936
GENERAL MOTORS OE	89019226
GENERAL MOTORS OE	89019368
ACDELCO	15 20047
ACDELCO	15 20135
ACDELCO	15 20154
ACDELCO	15 20178
ACDELCO	19169357
ACDELCO	19188306
ACDELCO	19192527
ACDELCO	52499051
ACDELCO	88999295
ACDELCO	89018936
ACDELCO	89019226
ACDELCO GM ORIGINAL EQUIPMENT	15 20430
ACDELCO GM ORIGINAL EQUIPMENT	1520430
ACDELCO GM ORIGINAL EQUIPMENT CANADA	1520430
ACDELCO GM ORIGINAL EQUIPMENT CANADA	15 20430
ACDELCO GOLDPROFESSIONAL	15 20418
ACDELCO GOLDPROFESSIONAL	1520418
ACDELCO GOLDPROFESSIONAL CANADA	1520418
ACDELCO GOLDPROFESSIONAL CANADA	15 20418
ACDELCO MEXICO COMMON	19188306
ACDELCO US	19188306
ACDELCO US	19169357
ACDELCO US	19192527
ACDELCO US	15 20418
ACDELCO US	15 20178
ACDELCO US	15 20154
ACDELCO US	15 20135
ACDELCO US	15 20430
ACDELCO US	1520430
ACDELCO US	15 20047
ACDELCO US	88999295
ACDELCO US	52499051
Air Pro	35133
Air Pro	35116
AIR PRO QUALITY PARTS	35116
AIR PRO QUALITY PARTS	35133
AIR PROMARITTA	35133
AIR PROMARITTA	35116
APCO AIR	68229
APCO AIR	68241
AUSTIN BAKER INDUSTRIES	03 623
AUSTIN BAKER INDUSTRIES	03 632
AUSTIN BAKER INDUSTRIES	03 634
AUSTIN BAKER INDUSTRIES	10306230
AUTO STAR	13670
AUTOPART INTERNATIONAL	7157955
AUTOPART INTERNATIONAL	2403 558493
AUTOSTAR PRIVATE LABELS	13670
AUTOSTARSTANDARD	13670
BALKAMP	251219
BASE HVAC	251219
BASE HVAC	2504
BASE HVAC	57955
BASE HVAC	A71219
BASE HVAC	01492604
CAR CARE	AC1776NP
CAR CARE	AC1776NPS
CAR CARE	AC1776NPSW
CAR CARE	VAC1776NP
CAR CARE	VAC1776NPSW
CARQUEST	DW57955
CARQUEST	251217
CARQUEST	251219
CARQUESTDENSO	471 9161
CFA AIR CONDITIONING	13670
CFA AIR CONDITIONING	13047
COMPRESSOR WORKS	DW57955
COMPRESSOR WORKS	652114
COOL AIR AND ELECTRIC REMANUFACTURING	1490W6
COOLING DEPOT CANADA	11157955
COOLING DEPOT CANADA	57955
DELCO REMY AMERICA	52499051
DELCO REMY AMERICA	89019226
DELCO REMY AMERICA	88999295
DELCO REMY AMERICA	89018936
DELCO REMY AMERICA	89019368
DELCO REMY AMERICA	1136077
DELCO REMY AMERICA	1136535
DELCO REMY AMERICA	1136411
DELCO REMY AMERICA	1136488
DELCO REMY AMERICA	1136491
DELCO REMY AMERICA	1136508
DELCO REMY AMERICA	1136515
DELCO REMY AMERICA	1136516
DELCO REMY AMERICA	1136530
DELCO REMY AMERICA	19192527
DELCO REMY AMERICA	19169357
DELCO REMY AMERICA	19188306
DELPHI	CS0111
DELPHI	CS0123
DENSO	471 9161
DRIVEWORKS OR FACTORY AIR	DW57955
EVERCO	A71219
FACTORY AIR	57955
FOUR SEASONS	251219
FOUR SEASONS	2504
FOUR SEASONS	A71219
FOUR SEASONS	01492604
FOUR SEASONS PAC KITS I	01492604
FOUR SEASONS PAC KITS I	A71219
FOUR SEASONS PAC KITS I	2504
FOUR SEASONS PAC KITS I	251219
FRIGETTE CORP	204 919
GENERAL MOTORS AU	52499051
GENERAL MOTORS AU	88999295
GENERAL MOTORS AU	1136077
GENERAL MOTORS AU	19188306
GENERAL MOTORS AU	19169357
GENERAL MOTORS AU	19192527
GENERAL MOTORS AU	1136530
GENERAL MOTORS AU	1136516
GENERAL MOTORS AU	1136515
GENERAL MOTORS AU	1136508
GENERAL MOTORS AU	1136491
GENERAL MOTORS AU	1136411
GENERAL MOTORS AU	1136535
GENUINE AIR	7171219
GILMORE PRODUCTS	70 7003R
GILMORE PRODUCTS	57955
GILMORE PRODUCTS	57429
GLOBAL PARTS	5511344
GLOBAL PARTS	5511758
GLOBAL PARTS	ACD1520418
GM GENUINE PARTS	1520430
GM GENUINE PARTS	15 20430
GM GENUINE PARTS CANADA	15 20430
GM GENUINE PARTS CANADA	1520430
MAPCO USA	34605
MAPCO USA	34618
MEXICO ACDELCO GM ORIGINAL EQUIPMENT	89019368
MEXICO GM GENUINE PARTS	89019368
MEXICO GM GENUINE PARTS	1520430
MEXICO GM GENUINE PARTS	15 20430
MURRAY COMPRESSORS	57955
MURRAY HEAT TRANSFER	57955
NAPA	251219
NAPATEMP TEM	251219
NAPATEMP TEM	A71219
OMEGA ENVIRONMENTAL TECHNOLOGIES	20 10670 R
OMEGA TIRE	2010670R
PRIME SOURCE	000656
PRIME SOURCE	001122
PRIME SOURCE	000324
PRIME SOURCE	000010
PROLIANCE READY AIRE	2487
PROLIANCE READY AIRE	2504
RANSHU AC	14 20046C
RANSHU AC	14 20046RC
RANSHU AC	14 20178C
RANSHU AC	14 20178RC
RANSHU AC	14 2919
SPECTRA PREMIUM MOBILITY SOLUTIONS	0657955
SPECTRA PREMIUM MOBILITY SOLUTIONS	6 2482RSW
SPECTRA PREMIUM MOBILITY SOLUTIONS	6 2537RSW
SPECTRA RADIATORSSIZE CODES	62482RSW
SPECTRA RADIATORSSIZE CODES	62537RSW
TAPP	03 623
TAPP	03 634
TAPP	03 632
TCW	15 20178
TCW	90 20046
TCW	90 20178
TCW	15 20046
UNI SELECTCOOLING DEPOT	57955
UNIVERSAL AIR CONDITIONER INC	15 20178
VISTEON	10
VISTEON	001122
VISTEON	000656
VISTEON	000010
VISTEON	000324
