Suspension

RK622087

MOOG

Click Image for Larger View
(Images are representative only and may not reflect the actual product)

❮ ❯

1 / 2


2 / 2


Price: 155.00

List: 388.82

Shipping:

In Stock:

We request registration so we can make sure you receive the right parts
and to properly estimate shipping and handling.
Returns, defects and other issue can arise.
This allows us to handle issues with out much involvement from you.
We aim to be as thorough and speedius as possible.
If you have any questions you can contact us at 325-235-2420

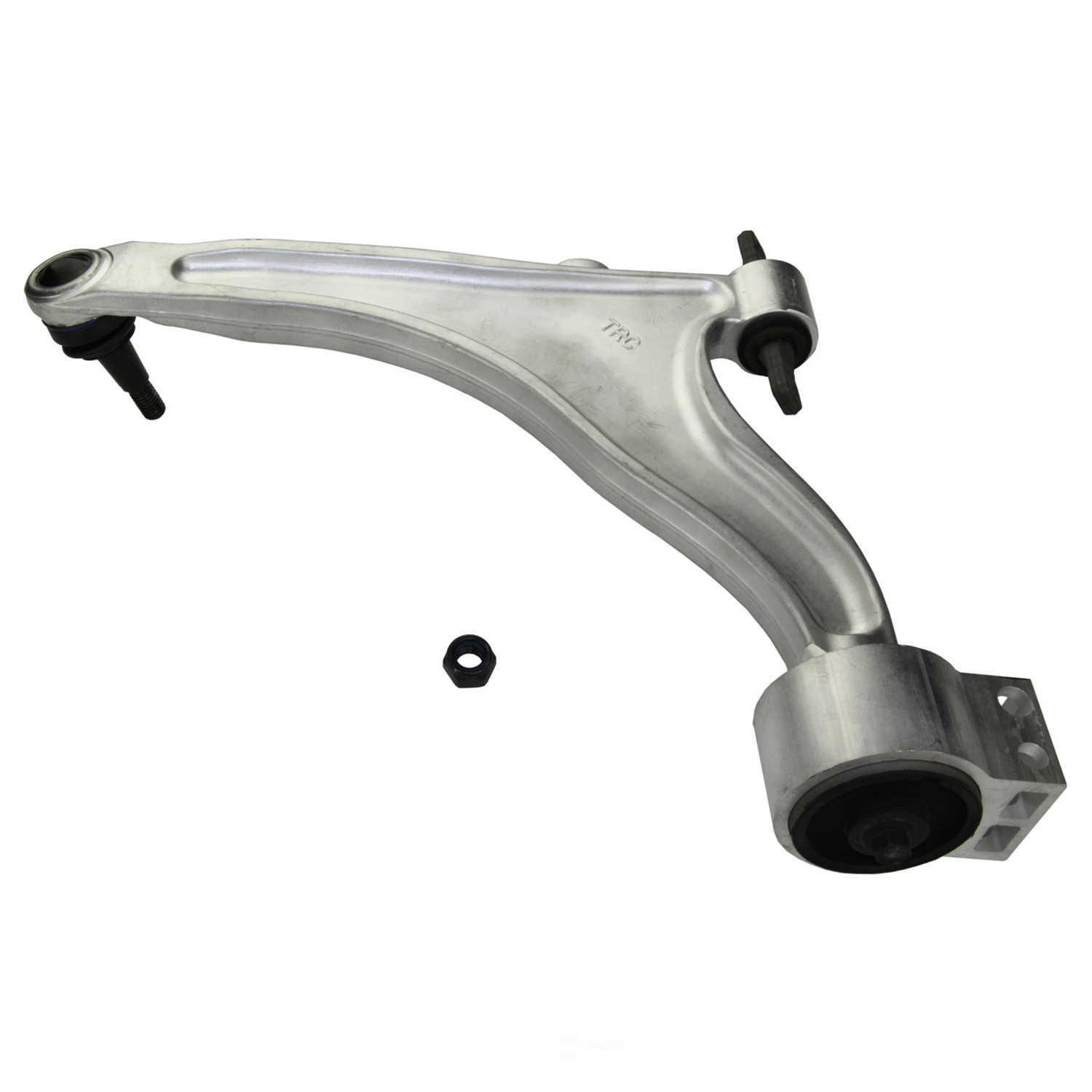

Suspension Control Arm And Ball Joint Assembly Lower W/ball Pass

MOOG RK622087 Suspension Control Arm and Ball Joint Assembly front right lower MOOG premium control arms for foreign and domestic nameplates are engineered for structural strength and corrosion protection. COMPREHENSIVE COVERAGE -- Available for foreign and domestic nameplates HIGHLY PRECISE ENGINEERING -- Optimized bushings for quiet operation and resistance to wear, salt, road grime and oils INSTALLATION READY -- Pre-installed ball joints with sealed sockets for maintenance-free operation LONG LIFE -- Ball stud shape ensures fatigue life, compensating for sag and suspension and adding extra swing when you need it ENHANCED STRUCTURAL STRENGTH -- Heat treated to match or exceed OE requirements to inhibit premature failure ADDED CORROSION PROTECTION -- Coated studs and e-coated cast iron and steel control arms inhibit premature deterioration EASY TO INSTALL -- Precision tolerances for easy installation and steering alignment giving you a perfect fit right out of the box Package Dimensions: 3.5 x 16.5 x 21.0 inches Package Weight: 10.0 lb Package Quantity: 1 UPC: 080066049205 Adjustable: No Ball Joint Mounting Type: Press In Ball Joint Stud Type: Threaded Bushing Material: Rubber Bushings Included: Yes Control Arm Maximum Length: 14.720 IN Grease Fitting Included: No Mounting Hardware Included: Yes Pre-Greased: Yes Country of Origin: TW

Specifications

Height: 21.0

Width: 3.5

Length: 16.5

Weight: 10.0

Re-manufactured or New: New

From-To:		Make:	Model:	Sub:	Engine:	Notes:
2010	2010	Cadillac	SRX	all	2.8L	Suspension Control Arm and Ball Joint Assembly; V6 Turbo VIN:4; PerVeh: 1;
2011	2011	Cadillac	SRX	all	2.8L	Suspension Control Arm and Ball Joint Assembly; V6 Turbo VIN:6; PerVeh: 1;
2011	2011	Cadillac	SRX	all	3.0L	Suspension Control Arm and Ball Joint Assembly; V6 Trim:Luxury; PerVeh: 1;
2011	2011	Cadillac	SRX	all	3.0L	Suspension Control Arm and Ball Joint Assembly; V6 Trim:Premium VIN:Y; PerVeh: 1;
2010	2010	Cadillac	SRX	all	3.0L	Suspension Control Arm and Ball Joint Assembly; V6 VIN:Y; PerVeh: 1;
2011	2011	Cadillac	SRX	all	3.0L	Suspension Control Arm and Ball Joint Assembly; V6 VIN:Y; PerVeh: 1;
2014	2014	Cadillac	SRX	all	3.6L	Suspension Control Arm and Ball Joint Assembly; V6; PerVeh: 1;
2015	2015	Cadillac	SRX	all	3.6L	Suspension Control Arm and Ball Joint Assembly; V6 FLEX VIN:3; PerVeh: 1;
2016	2016	Cadillac	SRX	all	3.6L	Suspension Control Arm and Ball Joint Assembly; V6 FLEX VIN:3; PerVeh: 1;
2012	2013	Cadillac	SRX	all	3.6L	Suspension Control Arm and Ball Joint Assembly; V6 VIN:3; PerVeh: 1;
2014	2015	Cadillac	SRX	all	3.6L	Suspension Control Arm and Ball Joint Assembly; V6 VIN:3; PerVeh: 1;
2016	2016	Cadillac	SRX	all	3.6L	Suspension Control Arm and Ball Joint Assembly; V6 VIN:3; PerVeh: 1;
2015	2016	Cadillac	SRX	all	3.6L	Suspension Control Arm and Ball Joint Assembly; V6 VIN:3, + Others; PerVeh: 1;

Information
MOOG_Premium_Control_Arms_Corrosion_Protection
MOOG_Premium_Control_Arms_1
MOOG_Premium_Control_Arms_3
MOOG_Premium_Control_Arms
MOOG_Premium_Control_Arms_4
MOOG_Premium_Control_Arms_Enhanced_Structural_Strength
MOOG_Premium_Control_Arms_Highly_Precise_Engineering
MOOG_Control_Arms_Brochure
MOOG_Premium_Control_Arms_2
MOOG_Control_Arms_Brochure_Spread
Home
Www
Home
Home

GENERAL MOTORS CORP.	20838573
GENERAL MOTORS CORP.	20903480
GENERAL MOTORS CORP.	20928343
GENERAL MOTORS CORP.	15846061
GENERAL MOTORS CORP.	22833483
GENERAL MOTORS CORP.	22979576
GMC OE	22833483
GMC OE	22979576
GMC OE	15846061
GMC OE	20928343
NISSAN OE	30034602
ACDELCO	15846061
ACDELCO	20838573
ACDELCO	20903480
ACDELCO	20928343
ACDELCO	22833483
ACDELCO GOLD/PROFESSIONAL	45D10424
ACDELCO GOLD/PROFESSIONAL CANADA	45D10424
ACDELCO MEXICO COMMON	22979576
ACDELCO US	22979576
ACDELCO US	22833483
ACDELCO US	45D10424
ACDELCO US	20928343
ACDELCO US	20903480
ACDELCO US	20838573
ACDELCO US	15846061
AUTOPART INTERNATIONAL	2703-425991
AUTOZONE/DORMAN OE SOLUTIONS	524-454
AUTOZONE/DURALAST CHASSIS	CA14604
AUTOZONE/MILE MARKER	CA14604
CTR	CQ0406R
DELCO REMY AMERICA	22833483
DELCO REMY AMERICA	22979576
DELCO REMY AMERICA	15846061
DELCO REMY AMERICA	20838573
DELCO REMY AMERICA	20903480
DELCO REMY AMERICA	20928343
DORMAN	CB91314PR
DORMAN	524-454
DORMAN OE SOLUTIONS	524-454
DORMAN PREMIUM	CB91314PR
DORMAN PREMIUM RD	524-454
Dorman/EZ Drain	524-454
FVP	CB91314
GENERAL MOTORS AU	22979576
GENERAL MOTORS AU	22833483
GENERAL MOTORS AU	20928343
GENERAL MOTORS AU	20903480
GENERAL MOTORS AU	20838573
GENERAL MOTORS AU	15846061
GM GENUINE PARTS	22979576
GM GENUINE PARTS CANADA	22979576
GSP NORTH AMERICA INC.	NS61366
MAS BASE	CB91314
MAS INDUSTRIES	CB91314
MEVOTECH CONTROL ARMS	CMS501164
MEVOTECH LP	CMS501164
MEVOTECH LP	5CB50378
MEVOTECH LP	GS501164
MEVOTECH LP	MS501164
MEVOTECH LP	QGS501164
MEVOTECH ORIGINAL GRADE INTERNATIONAL	GS501164
MEXICO GM GENUINE PARTS	22979576
NAPA CANADA/PREMIUM CONTROL ARMS-NCX	2607092
NAPA/CHASSIS PARTS-NCP	2607092
NAPA/CONTROL ARMS & SUSPENSION-NCP	2607092
NAPA/SERVICE TOOLS-SER	2607092
OMNIPARTS	30034602
PARTS PLUS CHASSIS	PMS501164
PRECISION CONTROL ARMS	5CB50378
PRONTO/MAS	CB91314
QUALITY AUTOMOTIVE PRODUCTS	QGS501164
WORLDPARTS CONTROL ARMS	WC1-14454
