Belts

38145

GATES

Click Image for Larger View
(Images are representative only and may not reflect the actual product)

❮ ❯

1 / 3


2 / 3


3 / 3


Price:

List:

Shipping:

In Stock: 1

We request registration so we can make sure you receive the right parts
and to properly estimate shipping and handling.
Returns, defects and other issue can arise.
This allows us to handle issues with out much involvement from you.
We aim to be as thorough and speedius as possible.
If you have any questions you can contact us at 325-235-2420

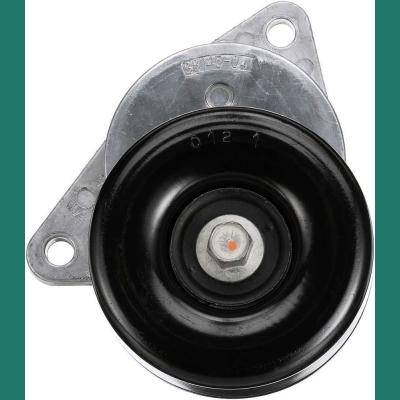

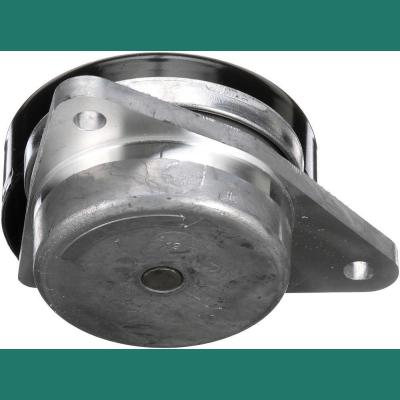

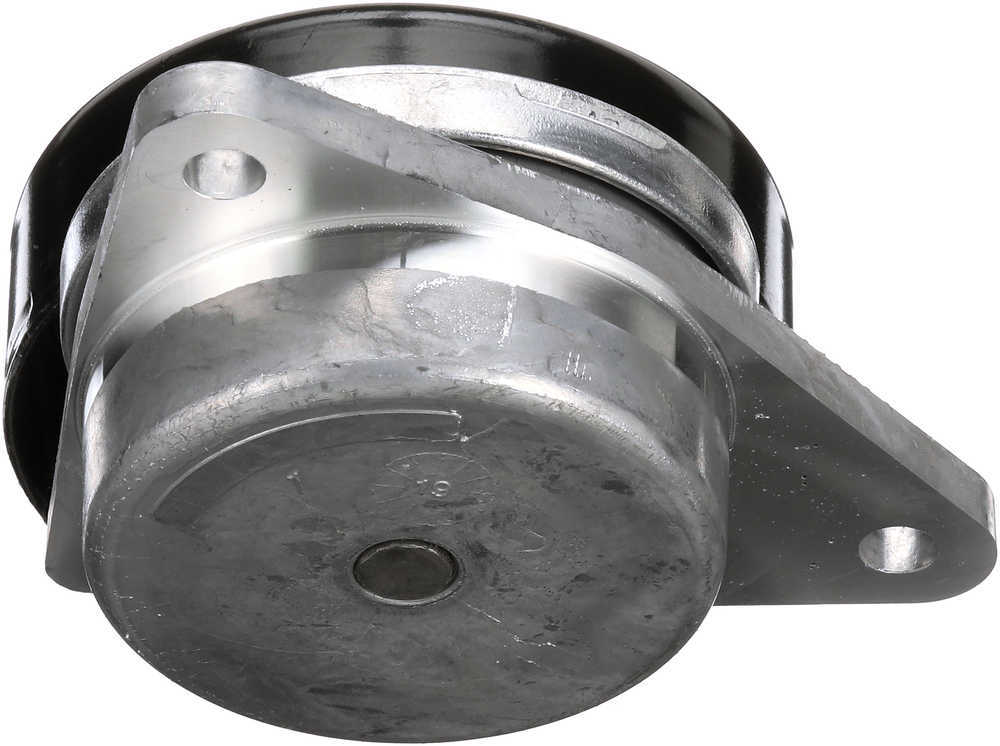

Accessory Drive Belt Tensioner Assembly

Gates is a global leader in Original Equipment system design and brings the same OE-quality, durability, fit and performance to our premium DriveAlign Automatic Belt Tensioners. We ensure every tensioner is manufactured to rigid tolerances and specifications that guarantee OE fit, form and function. Comprehensive line includes parts to fit cars, vans, SUVs and light trucks, domestic and import (European and Asian) Manufactured using the same or improved technology and quality materials as the Original Equipment Manufacturer (OEM) part, assuring a factory match Patented labyrinth seal protects internal components to meet or exceed OE life expectancy requirements Torsional round spring design provides reliability as well as consistent tension Patented vibration-damping system absorbs extreme vibration to improve tensioner, as well as belt and accessory, life Package Weight: 1.85 lb Package Quantity: 1 UPC: 072053525847 Bearing Bore Inside Diameter: .67 IN Bearing Bore Inside Diameter: 17 MM Belt Type: V-Ribbed Contact Surface: Smooth/Backside Contents: Tensioner Assy. Grade Type: OE Improved Groove Quantity: 0 Material: Steel Mounting Hole Quantity: 2 Outside Diameter: 3.54 IN Outside Diameter: 90 MM Pulley 1 Flanged: No Pulley Quantity: 1 Width: 1.2 IN Width: 30.5 MM Country of Origin: MX

Specifications

Weight: 1.85

Re-manufactured or New: New

From-To:		Make:	Model:	Sub:	Engine:	Notes:
1994	1996	Buick	Commercial Chassis	all	5.7L	Accessory Drive Belt Tensioner Assembly; V8 VIN:P; PerVeh: 1;
1994	1996	Buick	Roadmaster	all	5.7L	Accessory Drive Belt Tensioner Assembly; V8 VIN:P; PerVeh: 1;
1994	1996	Cadillac	Commercial Chassis	all	5.7L	Accessory Drive Belt Tensioner Assembly; V8 VIN:P; PerVeh: 1;
1994	1996	Cadillac	Fleetwood	all	5.7L	Accessory Drive Belt Tensioner Assembly; V8 VIN:P; PerVeh: 1;
1993	1995	Chevrolet	Camaro	all	3.4L	Accessory Drive Belt Tensioner Assembly; V6 VIN:S; PerVeh: 1;
1993	1994	Chevrolet	Camaro	all	5.7L	Accessory Drive Belt Tensioner Assembly; V8 VIN:P; PerVeh: 1;
1995	1996	Chevrolet	Camaro	all	5.7L	Accessory Drive Belt Tensioner Assembly; V8 VIN:P; PerVeh: 1;
1997	1997	Chevrolet	Camaro	all	5.7L	Accessory Drive Belt Tensioner Assembly; V8 VIN:P; PerVeh: 1;
1994	1996	Chevrolet	Caprice	all	4.3L	Accessory Drive Belt Tensioner Assembly; V8 VIN:W; PerVeh: 1;
1994	1996	Chevrolet	Caprice	all	5.7L	Accessory Drive Belt Tensioner Assembly; V8 VIN:P; PerVeh: 1;
1994	1994	Chevrolet	Commercial Chassis	all	5.7L	Accessory Drive Belt Tensioner Assembly; V8 VIN:P; PerVeh: 1;
1994	1996	Chevrolet	Impala	all	5.7L	Accessory Drive Belt Tensioner Assembly; V8 VIN:P; PerVeh: 1;
1993	1995	Pontiac	Firebird	all	3.4L	Accessory Drive Belt Tensioner Assembly; V6 VIN:S; PerVeh: 1;
1993	1993	Pontiac	Firebird	all	5.7L	Accessory Drive Belt Tensioner Assembly; V8 VIN:P; PerVeh: 1;
1994	1997	Pontiac	Firebird	all	5.7L	Accessory Drive Belt Tensioner Assembly; V8 VIN:P; PerVeh: 1;

Information
Gates_Technical_Service_Bulletin__TSB_0055
Gates_Technical_Service_Bulletin_TSB_0055
Gates_Technical_Service_Bulletin__TSB_0055_
En
Home
Knowledge-center
Warranty-forms
Resource-library

GENERAL MOTORS CORP.	12552509
GENERAL MOTORS CORP.	10115478
GENERAL MOTORS CORP.	10238703
OEM	10238703
OEM	10115478
OEM	12552509
ACDELCO	10115478
ACDELCO	10238703
ACDELCO	12552509
ACDELCO	88920945
ACDELCO GOLD/PROFESSIONAL	38145
ACDELCO GOLD/PROFESSIONAL CANADA	38145
ACDELCO US	38145
ACDELCO US	12552509
ACDELCO US	88920945
ACDELCO US	10238703
ACDELCO US	10115478
ADVANCE/FRAM FULL SYNTHETIC ENGINE OIL	89232
ADVANCE/FRAM FULL SYNTHETIC ENGINE OIL	305232
ADVANCE/FRAM FULL SYNTHETIC ENGINE OIL	38145
AFTERMARKET PRODUCTS	38145
AFTERMARKET PRODUCTS	305232
AFTERMARKET PRODUCTS	180232
AFTERMARKET PRODUCTS	89232
AFTERMARKET PRODUCTS	999027
AFTERMARKET PRODUCTS	999027A
AFTERMARKET PRODUCTS	419107
AFTERMARKET PRODUCTS	45855
AFTERMARKET PRODUCTS	49252
ALT TENSIONER	ALT04452
ARMOR MARK	35145
AUTOMOTIVE TENSIONERS INC (ATI)	B20192
AUTOPART INTERNATIONAL	2008-203357
AUTOPART INTERNATIONAL	203357
AUTOZONE/DAYCO	89232
AUTOZONE/DURALAST-DAYCO	305232
BANDO	780334
BASE HVAC	45855
CADNA ARMORMARK	35145
CADNA PRESTONE	35145
CARQUEST	38001
CARQUEST	305232
CARQUEST	89232
CARQUEST VEHICLE SOLUTIONS	89232
CARQUEST VEHICLE SOLUTIONS	305232
CARQUEST VEHICLE SOLUTIONS	38145
CARQUEST/ GATES	38145
CARQUEST/MONROE SHOCKS-STRUTS	38145
CARQUEST/MONROE SHOCKS-STRUTS	305232
CARQUEST/MONROE SHOCKS-STRUTS	89232
CONTINENTAL	49252
COOLING DEPOT CANADA	45855
COOLING DEPOT CANADA	11145855
DAYCO PRIVATE LABEL	305232
DAYCO PRODUCTS LLC	89232
DELCO REMY AMERICA	12552509
DELCO REMY AMERICA	10115478
DELCO REMY AMERICA	10238703
DORMAN	419-107
DORMAN - TECHOICE	419-107
Dorman/EZ Drain	419-107
FACTORY AIR	45855
FOUR SEASONS	45855
FRESHSTART	49252
GATES CANADA	38145
GENERAL MOTORS AU	12552509
GENERAL MOTORS AU	10238703
GENERAL MOTORS AU	10115478
GOODYEAR	49252
GOODYEAR	55142
HAYDEN	5855
KOOLKLUTCH	180232
LITENS	999027A
MIGHTY	305232
MURRAY A/C	45855
MURRAY TEMPERATURE CONTROL	45855
NAPA CANADA/BELTS AND HOSE - URA	38145
NAPA/BELTS & HOSE-NBH	38145
PARTS MASTER/CADNA	35145
PARTS MASTER/DAYCO	89232
PARTS MASTER/FOUR SEASONS	45855
PARTS MASTER/HAYDEN	5855
PRONTO/CADNA	35145
SERVICE CHAMP BELTS AND TENSIONERS	49252
SKP	SK89232
STANT	38145
TENDECO	999027
TRUMARK	45855
UNI-SELECT/COOLING DEPOT	45855
UNI-SELECT/MOTORAD	45855
