Cooling Engine

22344

GATES

Click Image for Larger View
(Images are representative only and may not reflect the actual product)

❮ ❯

1 / 1


Price:

List:

Shipping:

In Stock: 1

We request registration so we can make sure you receive the right parts
and to properly estimate shipping and handling.
Returns, defects and other issue can arise.
This allows us to handle issues with out much involvement from you.
We aim to be as thorough and speedius as possible.
If you have any questions you can contact us at 325-235-2420

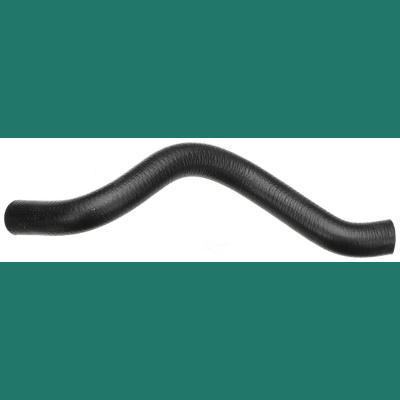

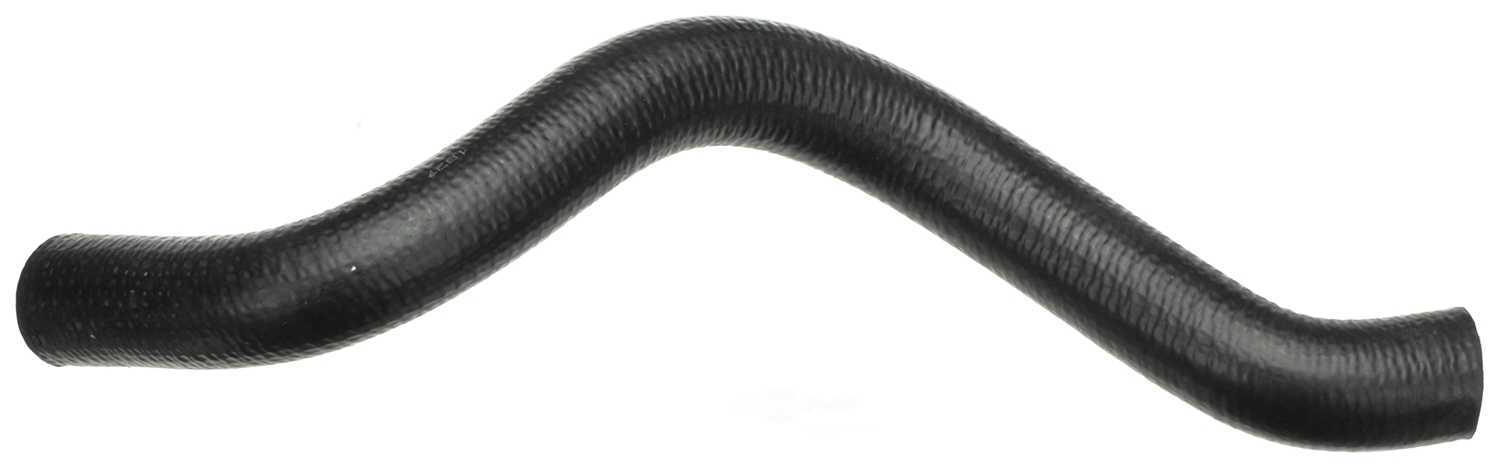

Radiator Coolant Hose

Our Molded Coolant Hoses are manufactured to fit upper, lower, bypass, heater and other coolant applications with OEM-quality specifications, saving you time, money and energy from going to your OE dealer for radiator hose replacements. Gates' molded coolant hose line is the most comprehensive line on the replacement market. Meets requirements of SAE 20R4, class D2 and DIN 73411, class A (except for tolerances) Temperature Range: -40 Deg. F to +257 Deg. F (-40 Deg. C to +125 Deg. C) EPDM tube; synthetic fiber knit reinforcement; heat-, ozone- and chemical coolant-resistant EPDM cover Specifically-engineered materials resist collapse under vacuum Pre-shaped to fit and to ensure perfectly sealed conditions Caution: Do not use for fuel or oil transfer applications Note: Gates recommends replacing hose clamps each time a new coolant hose is installed Engineered to resist electrochemical degradation, the leading cause of hose failure Package Weight: 0.783 lb Package Quantity: 1 UPC: 072053307368 Centerline Length: 21.2 IN Contains Spring: No End 1 Inside Diameter: 1.25 IN End 1 Inside Diameter: 32 MM End 2 Inside Diameter: 1.25 IN End 2 Inside Diameter: 32 MM Material: EPDM Modular: No Molded: Yes Quick Connect Fitting Quantity: 0 Country of Origin: US

Specifications

Weight: 0.783

Re-manufactured or New: New

From-To:		Make:	Model:	Sub:	Engine:	Notes:
2000	2005	Buick	Century	all	3.1L	Radiator Coolant Hose; V6 VIN:J; PerVeh: 1;
1997	1999	Buick	Century	all	3.1L	Radiator Coolant Hose; V6 VIN:M; PerVeh: 1;
1997	2004	Buick	Regal	all	3.8L	Radiator Coolant Hose; V6 Supercharged VIN:1; PerVeh: 1;
1997	2004	Buick	Regal	all	3.8L	Radiator Coolant Hose; V6 VIN:K; PerVeh: 1;
2000	2003	Chevrolet	Impala	all	3.4L	Radiator Coolant Hose; V6 VIN:E; PerVeh: 1;
2000	2003	Chevrolet	Impala	all	3.8L	Radiator Coolant Hose; V6 VIN:K; PerVeh: 1;
2000	2001	Chevrolet	Lumina	all	3.1L	Radiator Coolant Hose; V6 VIN:J; PerVeh: 1;
1997	1999	Chevrolet	Lumina	all	3.1L	Radiator Coolant Hose; V6 VIN:M; PerVeh: 1;
1998	1999	Chevrolet	Lumina	all	3.8L	Radiator Coolant Hose; V6 VIN:K; PerVeh: 1;
1997	1999	Chevrolet	Monte Carlo	all	3.1L	Radiator Coolant Hose; V6 VIN:M; PerVeh: 1;
2000	2003	Chevrolet	Monte Carlo	all	3.4L	Radiator Coolant Hose; V6 VIN:E; PerVeh: 1;
1998	2003	Chevrolet	Monte Carlo	all	3.8L	Radiator Coolant Hose; V6 VIN:K; PerVeh: 1;
1995	1995	Land Rover	Range Rover	all	4.0L	Radiator Coolant Hose; V8 VIN:2; PerVeh: 1;
1996	1998	Land Rover	Range Rover	all	4.0L	Radiator Coolant Hose; V8 VIN:2; PerVeh: 1;
1997	1998	Land Rover	Range Rover	all	4.6L	Radiator Coolant Hose; V8; PerVeh: 1;
1996	1998	Land Rover	Range Rover	all	4.6L	Radiator Coolant Hose; V8 VIN:4; PerVeh: 1;
1997	1997	Oldsmobile	Cutlass Supreme	all	3.1L	Radiator Coolant Hose; V6 VIN:M; PerVeh: 1;
1998	1999	Oldsmobile	Intrigue	all	3.8L	Radiator Coolant Hose; V6 VIN:K; PerVeh: 1;
2000	2003	Pontiac	Grand Prix	all	3.1L	Radiator Coolant Hose; V6 VIN:J; PerVeh: 1;
1997	1998	Pontiac	Grand Prix	all	3.1L	Radiator Coolant Hose; V6 VIN:M; PerVeh: 1;
1999	1999	Pontiac	Grand Prix	all	3.1L	Radiator Coolant Hose; V6 VIN:M; PerVeh: 1;
1997	2001	Pontiac	Grand Prix	all	3.8L	Radiator Coolant Hose; V6 Supercharged VIN:1; PerVeh: 1;
2002	2003	Pontiac	Grand Prix	all	3.8L	Radiator Coolant Hose; V6 Supercharged VIN:1; PerVeh: 1;
1997	2001	Pontiac	Grand Prix	all	3.8L	Radiator Coolant Hose; V6 VIN:K; PerVeh: 1;
2002	2003	Pontiac	Grand Prix	all	3.8L	Radiator Coolant Hose; V6 VIN:K; PerVeh: 1;

Information
Gates_Coolant_Hose
En
Home
Knowledge-center
Warranty-forms
Resource-library

GENERAL MOTORS CORP.	10285951
GENERAL MOTORS CORP.	10401339
GENERAL MOTORS CORP.	10401999
GENERAL MOTORS CORP.	10421339
LAND ROVER OE	PCH 114840
OEM	PCH114840
OEM	10421339
OEM	10401999
OEM	10401339
OEM	10285951
ACDELCO	10285951
ACDELCO	10401339
ACDELCO	10401999
ACDELCO GM ORIGINAL EQUIPMENT	10421339
ACDELCO GM ORIGINAL EQUIPMENT CANADA	10421339
ACDELCO GOLD/PROFESSIONAL	26346X
ACDELCO GOLD/PROFESSIONAL CANADA	26346X
ACDELCO US	26346X
ACDELCO US	10421339
ACDELCO US	10401999
ACDELCO US	10401339
ACDELCO US	10285951
ADVANCE/FRAM FULL SYNTHETIC ENGINE OIL	22344
AFTERMARKET PRODUCTS	22344
AFTERMARKET PRODUCTS	26346X
AFTERMARKET PRODUCTS	C2344
AFTERMARKET PRODUCTS	8977
BRITISH LD	PCH114840
BRITISH LEYLAND MOTORS	PCH114840
CADNA ARMORMARK	83336
CARQUEST	22344
CARQUEST VEHICLE SOLUTIONS	22344
CARQUEST/ GATES	22344
CARQUEST/MONROE SHOCKS-STRUTS	22344
CONTINENTAL	62088
DAYCO PRIVATE LABEL	C71850
DAYCO PRODUCTS LLC	71850
DELCO REMY AMERICA	10285951
DELCO REMY AMERICA	10401339
DELCO REMY AMERICA	10401999
DELCO REMY AMERICA	10421339
FRESHSTART	1038
GATES	MH2344
GATES CANADA	22344
GENERAL MOTORS AU	10421339
GENERAL MOTORS AU	10401999
GENERAL MOTORS AU	10401339
GENERAL MOTORS AU	10285951
GM GENUINE PARTS	10421339
GM GENUINE PARTS CANADA	10421339
MASTER PRO CONTROL MODULES	22344
MASTER PRO CONTROL MODULES	C2344
MASTERPRO	C2344
MASTERPRO	22344
NAPA CANADA/BELTS AND HOSE - URA	8977
NAPA/BELTS & HOSE-NBH	8977
ROADMAX	C2344
STANT	22344
WORLDPAC	G2000-166343-GAT
