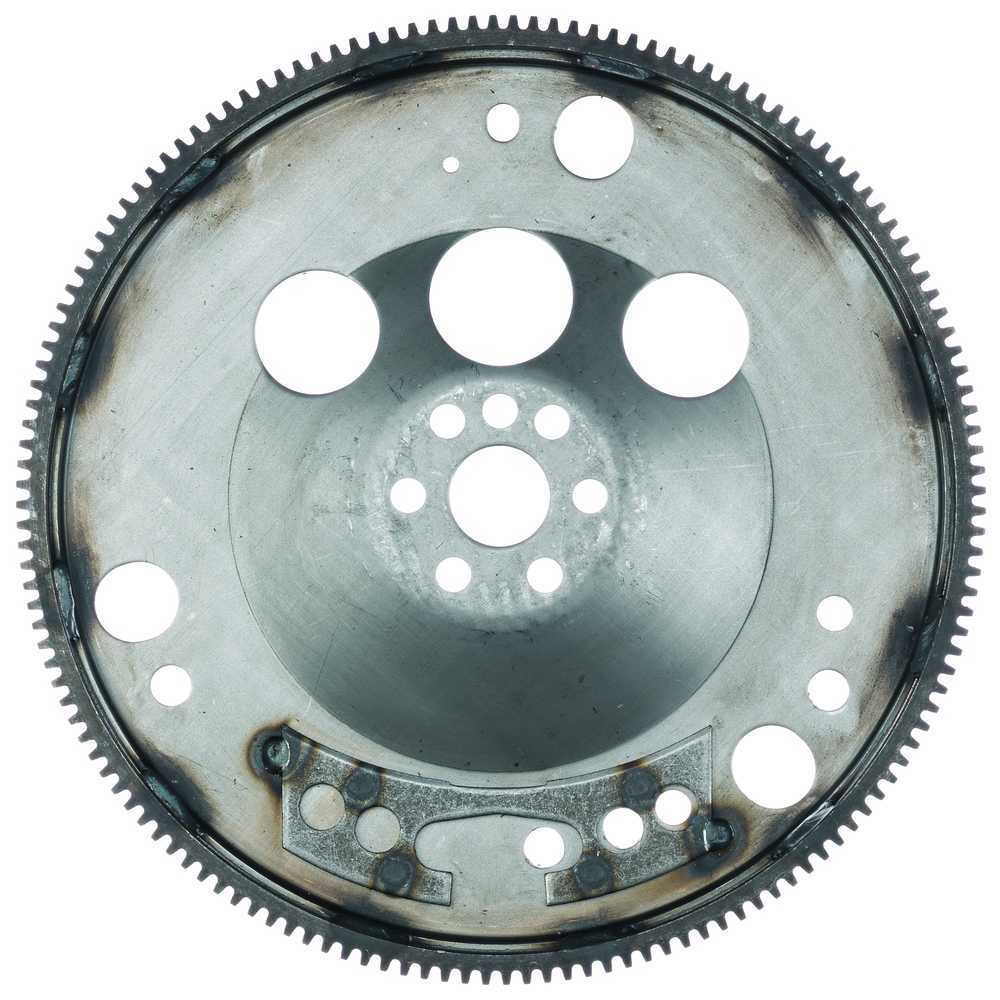

Automatic Transmission Flexplate FLYWHEEL.

Vehicles with automatic transmissions have a flex plate. Flex plates connect the engine and transmission. Most flex plates are made of a thick piece of sheet metal with bolt holes for the torque converter and teeth for the starter. The job of a flex plate is to allow for expansion of the torque converter as engine RPM increases. The constant expansion and contraction of a flex plate over time can result cracks and/or shearing of the flex plate. A damaged flex plate can create serious (expensive) damage. Broken flex plates can not be repaired, they must be replaced. ATP flex plates are made of high quality steel and contain the correct bolt hole spacing and ring gear teeth just like the original part to ensure long life and durability Package Dimensions: 14.75 x 14.75 x 1.50 inches Package Weight: 5.5 lb Package Quantity: 1 UPC: 740993023364 Diameter (in): 1.031 Diameter (mm): 314.325 Mounting Hole Diameter: 10.0 IN Outside Diameter: 12.375 IN Pitch Flywheels: 12 To 14 Safety Rating: N/A SFI Approved: N SFI Certification Sticker Included: N Teeth: 148 Tooth Quantity: 148 Weight Added: Y Country of Origin: US

Specifications

Height: 1.50

Width: 14.75

Length: 14.75

Weight: 5.5

Re-manufactured or New: New

From-To:		Make:	Model:	Sub:	Engine:	Notes:
1985	1987	Chevrolet	Camaro	all	2.8L	Automatic Transmission Flexplate; 173cid V6 FI VIN:S; PerVeh: 1;
1982	1984	Chevrolet	Camaro	all	2.8L	Automatic Transmission Flexplate; 173cid V6 VIN:1; PerVeh: 1;
1982	1985	Chevrolet	S10	all	2.8L	Automatic Transmission Flexplate; 173cid V6 VIN:B; PerVeh: 1;
1986	1987	Chevrolet	S10	all	2.8L	Automatic Transmission Flexplate; 173cid V6 VIN:R; PerVeh: 1;
1983	1985	Chevrolet	S10 Blazer	all	2.8L	Automatic Transmission Flexplate; 173cid V6 VIN:B; PerVeh: 1;
1986	1987	Chevrolet	S10 Blazer	all	2.8L	Automatic Transmission Flexplate; 173cid V6 VIN:R; PerVeh: 1;
1982	1985	GMC	S15	all	2.8L	Automatic Transmission Flexplate; 173cid V6 VIN:B; PerVeh: 1;
1986	1987	GMC	S15	all	2.8L	Automatic Transmission Flexplate; 173cid V6 VIN:R; PerVeh: 1;
1983	1985	GMC	S15 Jimmy	all	2.8L	Automatic Transmission Flexplate; 173cid V6 VIN:B; PerVeh: 1;
1986	1987	GMC	S15 Jimmy	all	2.8L	Automatic Transmission Flexplate; 173cid V6 VIN:R; PerVeh: 1;
1985	1987	Pontiac	Firebird	all	2.8L	Automatic Transmission Flexplate; 173cid V6 FI VIN:S; PerVeh: 1;
1982	1982	Pontiac	Firebird	all	2.8L	Automatic Transmission Flexplate; 173cid V6 VIN:1; PerVeh: 1;
1983	1984	Pontiac	Firebird	all	2.8L	Automatic Transmission Flexplate; 173cid V6 VIN:1,L; PerVeh: 1;

Information
Home
ATP
Techbulletin
Products

GENERAL MOTORS CORP.	14085472
ACDELCO	14085472
ACDELCO US	14085472
ATC (Aftermarket Technology Corp)	FW96864
ATC (Aftermarket Technology Corp)	G147
AUTOCRAFT MANUFACTURING	G147
AUTOZONE/ATP	Z-160
AUTOZONE/PIONEER	FRA-158
BIG A	XF67
BRYCO CARFEL	33638
CHROMITE	GM147
DELCO REMY AMERICA	14085472
DORMAN	04399
DORMAN	4399
DORMAN OE SOLUTIONS	4399
GENERAL MOTORS AU	14085472
HOLLANDER	409705
HOLLANDER	705
LODI	AA-G147
MOTORMITE	4399
NAPA - STD	409319
NAPA CANADA/MISC PARTS & ACCESSORIES-BKB	6005070
NAPA/BALKAMP-BK	6005070
NAPA/RIGHT FIT - RFP	6005070
PB/CARDONE	Z-160
PEP BOYS	Z-160
PIONEER INC.	FRA-158
PTC	FY65
TRANSTAR	99472
