Cooling Engine

2798

HAYDEN

Click Image for Larger View
(Images are representative only and may not reflect the actual product)

❮ ❯

1 / 1


Price:

List:

Shipping:

In Stock: 1

We request registration so we can make sure you receive the right parts
and to properly estimate shipping and handling.
Returns, defects and other issue can arise.
This allows us to handle issues with out much involvement from you.
We aim to be as thorough and speedius as possible.
If you have any questions you can contact us at 325-235-2420

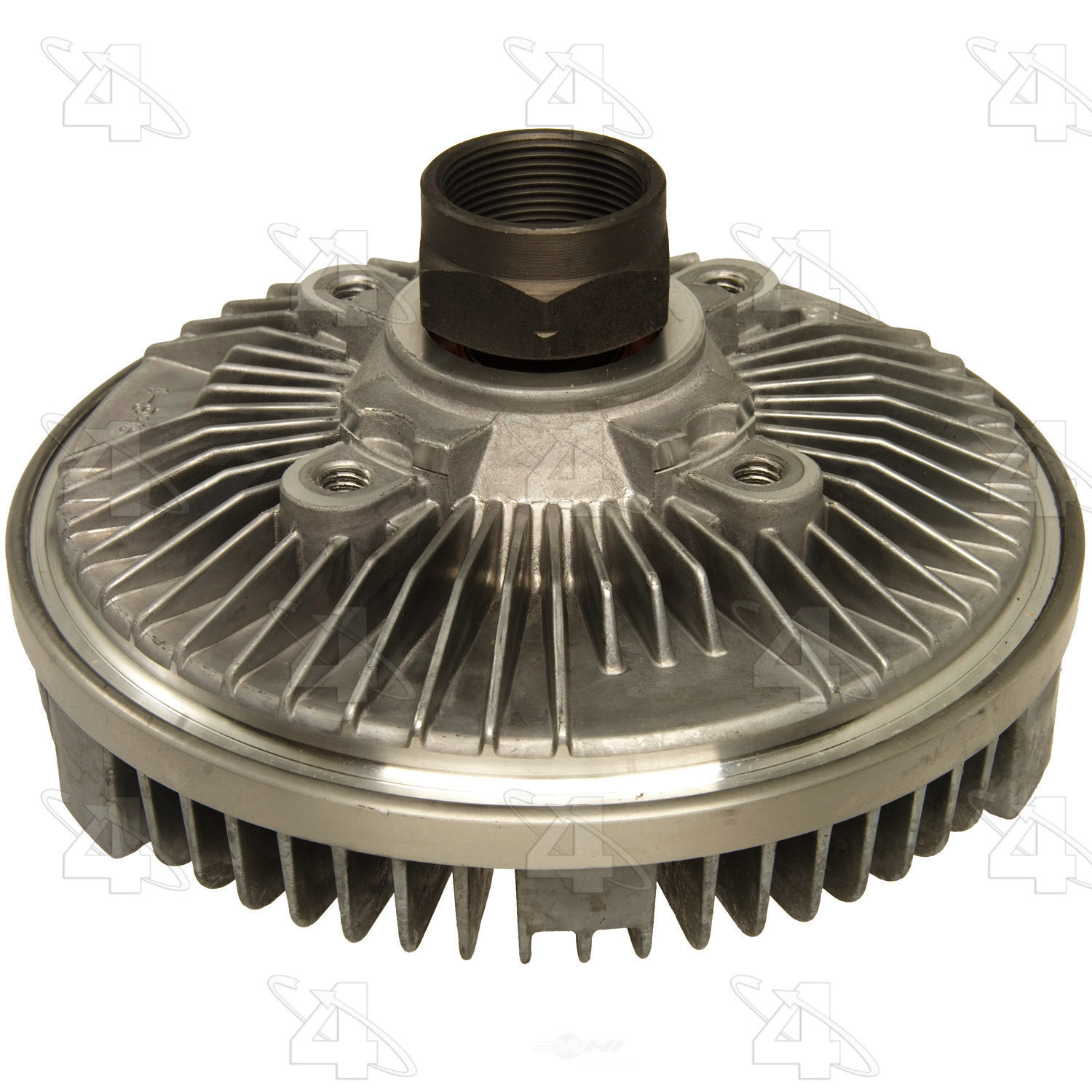

HAYDEN Standard Rotation Severe Duty Thermal Fan Clutch

Additional Info: Standard Rotation Severe Duty Thermal Fan Clutch Designed, tested, and built by application; OE performance, fit, and appearance; Precision machined; Out of box installation 1. Package Dimensions: 5.25 x 7.25 x 7.25 inches 2. UPC: 036752027989 3. Bolt Quantity: 4 4. Bolt Thread: 5/16 in - 18 5. Bolt Thread: 5/16-18 Hole 6. Clutch Maximum Diameter: 6.45 in 7. Clutch Type: D - Severe Duty & Truck Fan Drive 8. Color: Raw Aluminum in Color 9. Description: Fan Clutches 10. Distance From Clutch To Mounting Flange: 1.234375 in 11. Distance From Clutch To Mounting Flange: 1.24 in 12. Distance From Clutch To Mounting Flange: 1.25 in 13. Drawing Type: D 14. Duty Rating: Severe 15. Electronic Clutch?: Non Electronic 16. Fan Bolt Circle IN: 3.25 in 17. Fan Bolt Circle MM: 82.55 mm 18. Fan Bolt Circle MM: 82.6 mm 19. Fan Mount Dia. IN: 2.62 in 20. Fan Mount Dia. IN: 2.621 in 21. Fan Mount Dia. MM: 66.6 mm 22. Fan Mount Height MM: 31.6 mm 23. Material: Aluminum 24. Meets / Exceeds OEM?: Yes 25. Mount Dia. IN: 1.44 (36mm) HEX in 26. Mount Dia. IN: 1.440 in 27. Mount Dia. MM: 36 HEX mm 28. Mounting Hardware?: Not Included 29. Mounting Hole Quantity: 4 30. Mounting Type: HEX 31. New or Reman: New 32. O.E. Replacement?: Yes 33. Overall Dia. MM: 163.8 mm 34. Overall Dia. MM: 163.83 mm 35. Overall Height IN: 3.265 in 36. Overall Height IN: 3.27 in 37. Overall Height MM: 82.9 mm 38. Overall Height MM: 82.931 mm 39. Performance Rated?: Yes 40. Pilot Depth IN: 0.7 in 41. Pilot Depth MM: 17.78 mm 42. Pilot Depth MM: 17.8 mm 43. Pilot Dia. IN: M30 x 1.500 in 44. Rotation: STD 45. Style: Severe Duty 46. Type: Thermal 47. Country of Origin: MX 48. Remanufactured Part: N

Specifications

Re-manufactured or New: New

From-To:		Make:	Model:	Sub:	Engine:	Notes:
1990	1990	Dodge	D250	all	5.9L	Engine Cooling Fan Clutch; 359cid L6 Turbo DIESEL VIN:8; PerVeh: 1;
1991	1991	Dodge	D250	all	5.9L	Engine Cooling Fan Clutch; L6 Turbo DIESEL VIN:8,C; PerVeh: 1;
1992	1993	Dodge	D250	all	5.9L	Engine Cooling Fan Clutch; L6 Turbo DIESEL VIN:C; PerVeh: 1;
1990	1990	Dodge	D350	all	5.9L	Engine Cooling Fan Clutch; 359cid L6 Turbo DIESEL VIN:8; PerVeh: 1;
1991	1991	Dodge	D350	all	5.9L	Engine Cooling Fan Clutch; L6 Turbo DIESEL VIN:8,C; PerVeh: 1;
1992	1993	Dodge	D350	all	5.9L	Engine Cooling Fan Clutch; L6 Turbo DIESEL VIN:C; PerVeh: 1;
1999	1999	Dodge	Ram 2500	all	5.9L	Engine Cooling Fan Clutch; L6 Turbo DIESEL VIN:6; PerVeh: 1;
1998	1998	Dodge	Ram 2500	all	5.9L	Engine Cooling Fan Clutch; L6 Turbo DIESEL VIN:6,D; PerVeh: 1;
1994	1996	Dodge	Ram 2500	all	5.9L	Engine Cooling Fan Clutch; L6 Turbo DIESEL VIN:C; PerVeh: 1;
1997	1997	Dodge	Ram 2500	all	5.9L	Engine Cooling Fan Clutch; L6 Turbo DIESEL VIN:D; PerVeh: 1;
1999	1999	Dodge	Ram 2500	all	5.9L	Engine Cooling Fan Clutch; L6 Turbo DIESEL VIN:D; PerVeh: 1;
1999	1999	Dodge	Ram 3500	all	5.9L	Engine Cooling Fan Clutch; L6 Turbo DIESEL VIN:6; PerVeh: 1;
1998	1998	Dodge	Ram 3500	all	5.9L	Engine Cooling Fan Clutch; L6 Turbo DIESEL VIN:6,D; PerVeh: 1;
1994	1996	Dodge	Ram 3500	all	5.9L	Engine Cooling Fan Clutch; L6 Turbo DIESEL VIN:C; PerVeh: 1;
1997	1997	Dodge	Ram 3500	all	5.9L	Engine Cooling Fan Clutch; L6 Turbo DIESEL VIN:D; PerVeh: 1;
1990	1990	Dodge	W250	all	5.9L	Engine Cooling Fan Clutch; 359cid L6 Turbo DIESEL VIN:8; PerVeh: 1;
1991	1991	Dodge	W250	all	5.9L	Engine Cooling Fan Clutch; L6 Turbo DIESEL VIN:8,C; PerVeh: 1;
1992	1993	Dodge	W250	all	5.9L	Engine Cooling Fan Clutch; L6 Turbo DIESEL VIN:C; PerVeh: 1;
1990	1990	Dodge	W350	all	5.9L	Engine Cooling Fan Clutch; 359cid L6 Turbo DIESEL VIN:8; PerVeh: 1;
1991	1991	Dodge	W350	all	5.9L	Engine Cooling Fan Clutch; L6 Turbo DIESEL VIN:8; PerVeh: 1;
1992	1993	Dodge	W350	all	5.9L	Engine Cooling Fan Clutch; L6 Turbo DIESEL VIN:C; PerVeh: 1;

Information
Home
Content
Content
Content

ACDELCO	1540306
ACDELCO	1580255
ACDELCO NON GM	1580255
ACDELCO NON GM	1540306
ACDELCO PROFESSIONAL SHKSTRUT	1540306
ACDELCO PROFESSIONAL SHKSTRUT	1580255
AIRTEX AUTOMOTIVE DIVISION	2798TA
AIRTEX ENG. MGMT. SYSTEMS	2798TA
API TEMP CONTROLS	7136936
AUTOPART INTERNATIONAL	7136936
AUTOZONETORQFLO	922798
BASE HVAC	36936
CAR CARE	FC2798
CARQUEST	77258
CARQUEST	272313
CARQUESTCOMPRESSOR WORKS	77258
COMPRESSOR WORKS	922798
COOL AIR AND ELECTRIC REMANUFACTURING	LF253
COOLING DEPOT CANADA	36936
DERALE	22070
EVAP	4850
EVERCO	A72313
FENCO	FFC5798T
FOUR SEASONS	36936
FRIGETTE CORP	230253
GILMORE PRODUCTS	36936
GILMORE PRODUCTS	GC230
GILMORE PRODUCTS	36768
GLOBAL PARTS	2911234
GLOBAL PARTS	2911269
IMPERIAL	215035
KEEP ON GREEN	KG2798
MASTER PRO SELECT WATER PUMP	2798TM
MURRAY HEAT TRANSFER	36936
MURRAY HEAT TRANSFER	272313
NAPA	272313
PARTS MASTERHAYDEN	2798
PROLIANCE READY AIRE	4850
PRONTOCOMPRESSOR WORKS	922798
RANSHU AC	402253
RANSHU AC	402258
Ready Aire	4850
SPECTRA PREMIUM IND INC	2798
SPECTRA RADIATORSSIZE CODES	2798
TORQFLO BY COMPRESSORWORKS INC	922798
TRUCK AIR PARTSMFG	067209
US MOTOR WORKS	22070
VISTEON	140029
