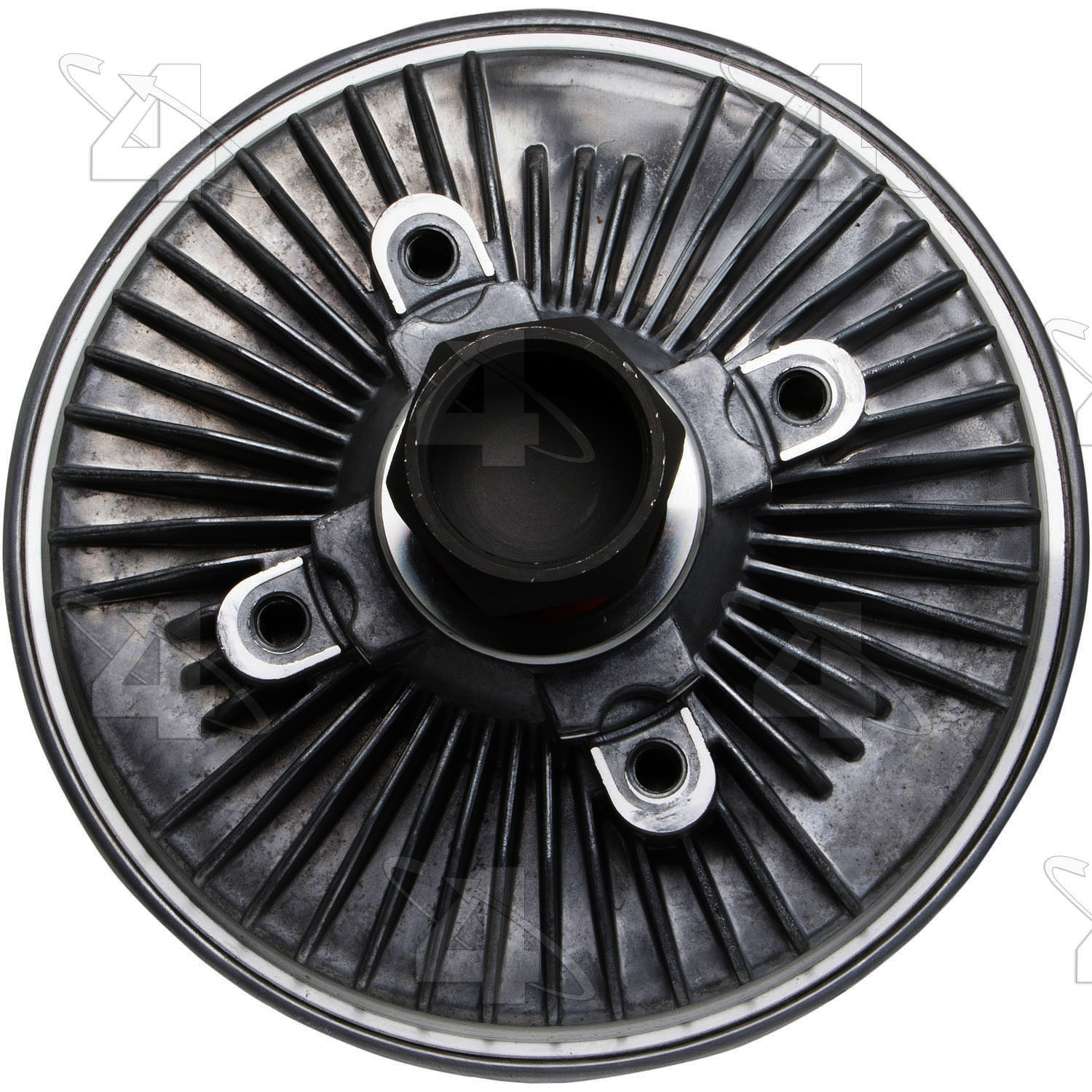

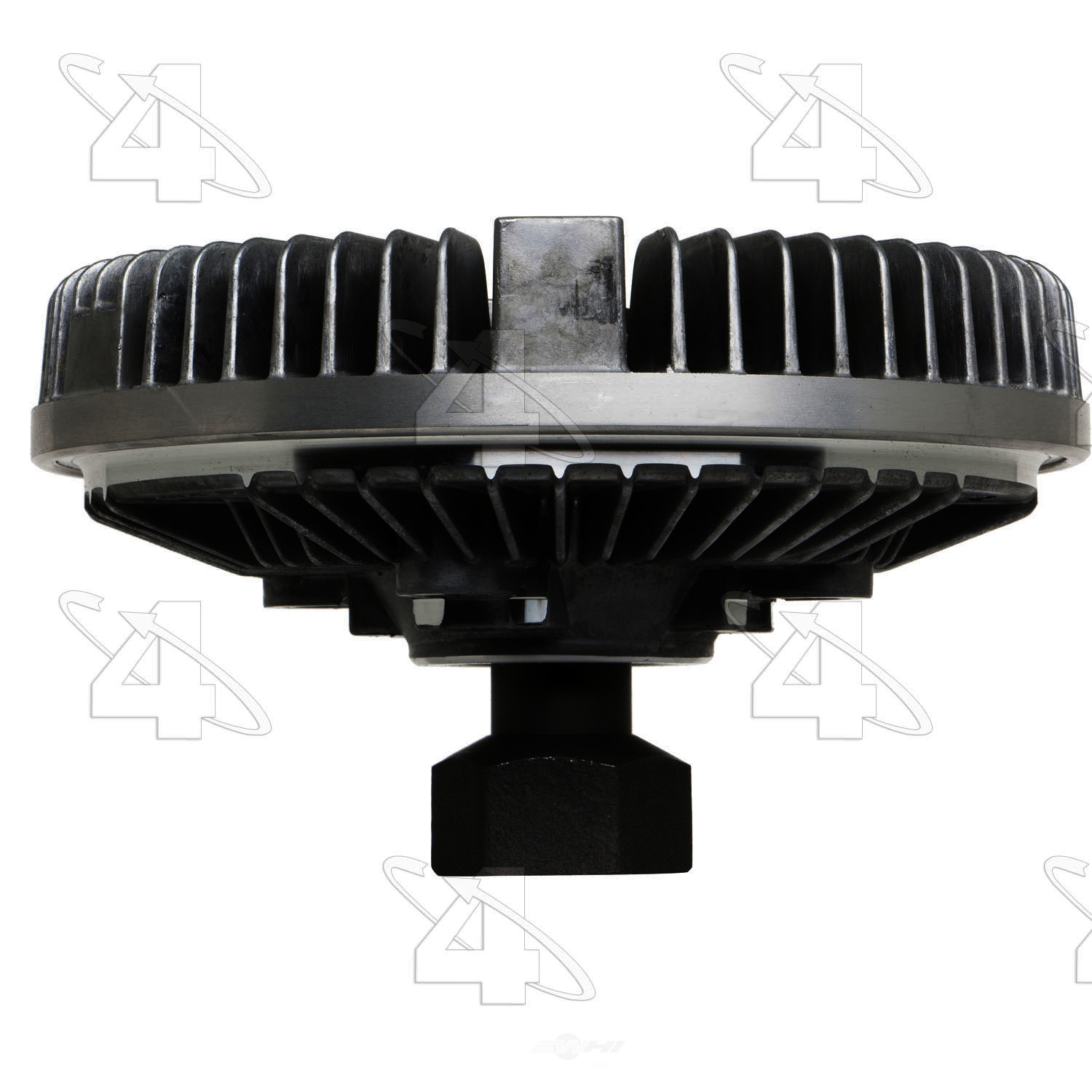

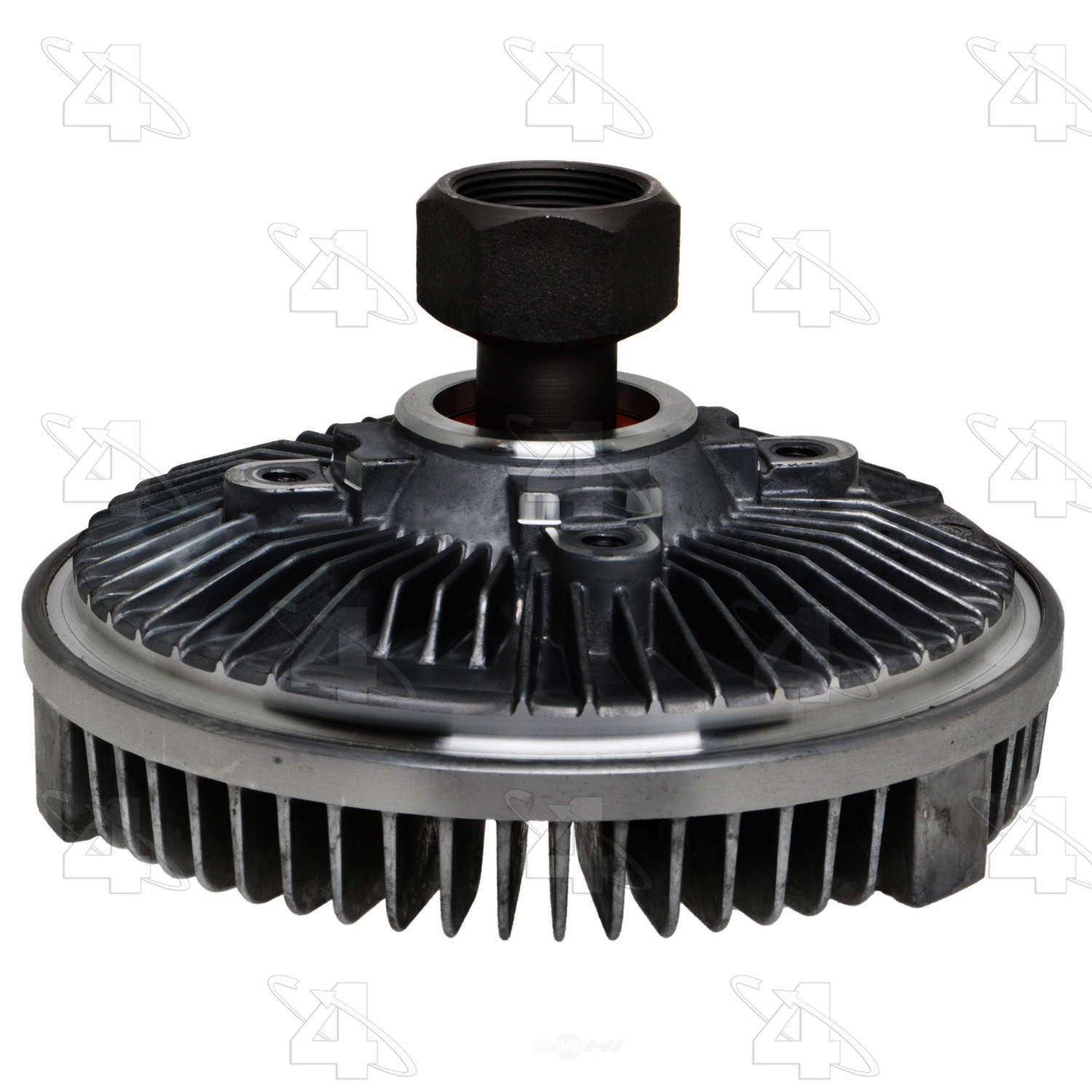

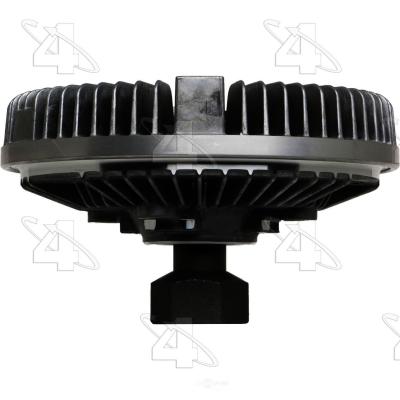

HAYDEN Reverse Rotation Severe Duty Thermal Fan Clutch

Additional Info: Reverse Rotation Severe Duty Thermal Fan Clutch Designed, tested, and built by application; OE performance, fit, and appearance; Precision machined; Out of box installation 1. Package Dimensions: 5.25 x 7.25 x 7.25 inches 2. UPC: 036752027910 3. Bolt Comment: 5/16-18 hole x4 4. Bolt Quantity: 4 5. Bolt Thread: 5/16 in - 18 6. Bolt Thread: 5/16-18 Hole 7. Clutch Maximum Diameter: 6.45 in 8. Clutch Maximum Diameter: 6.450 in 9. Clutch Maximum Diameter: 7.250 in 10. Clutch Type: D - Severe Duty & Truck Fan Drive 11. Color: Raw Aluminum in Color 12. Depth IN: 3.765625 in 13. Depth MM: 95.758 mm 14. Description: Fan Clutches 15. Distance From Clutch To Mounting Flange: 1.745 in 16. Distance From Clutch To Mounting Flange: 1.75 in 17. Drawing Type: D 18. Duty Rating: Severe 19. Electronic Clutch?: No 20. Fan Bolt Circle IN: 2.620 in 21. Fan Bolt Circle IN: 3.25 in 22. Fan Bolt Circle IN: 3.250 in 23. Fan Bolt Circle MM: 66.548 mm 24. Fan Bolt Circle MM: 82.55 mm 25. Fan Bolt Circle MM: 82.550 mm 26. Fan Bolt Circle MM: 82.6 mm 27. Fan Mount Dia. IN: 2.62 in 28. Fan Mount Dia. IN: 2.621 in 29. Fan Mount Dia. MM: 66.6 mm 30. Fan Mount Height MM: 44.3 mm 31. Length IN: 6.450 in 32. Length MM: 163.830 mm 33. Material: Aluminum 34. Meets / Exceeds OEM?: Yes 35. Mount Dia. IN: 1.44 (36mm) HEX in 36. Mount Dia. IN: 1.440 in 37. Mount Dia. MM: 36 HEX mm 38. Mounting Hardware?: Not Included 39. Mounting Hole Quantity: 1 40. Mounting Type: HEX 41. New or Reman: New 42. O.E. Replacement?: Yes 43. Overall Dia. MM: 163.8 mm 44. Overall Height IN: 3.765 in 45. Overall Height IN: 3.77 in 46. Overall Height IN: 7.250 in 47. Overall Height MM: 95.6 mm 48. Overall Height MM: 95.631 mm 49. Overall Height MM: 95.758 mm 50. Overall Width IN: 3.77 in 51. Overall Width MM: 95.76 mm 52. Performance Rated?: Yes 53. Pilot Depth IN: 0.7 in 54. Pilot Depth MM: 17.78 mm 55. Pilot Depth MM: 17.8 mm 56. Pilot Dia. IN: M30 X 1.5 Right in 57. Rotation: REV 58. Style: Severe Duty 59. Type: Thermal 60. Width IN: 6.450 in 61. Width MM: 163.830 mm 62. Country of Origin: MX 63. Remanufactured Part: N

Specifications

Re-manufactured or New: New

From-To:		Make:	Model:	Sub:	Engine:	Notes:
1992	1994	Dodge	B150	all	3.9L	Engine Cooling Fan Clutch; V6 VIN:X; PerVeh: 1;
1993	1994	Dodge	B150	all	5.2L	Engine Cooling Fan Clutch; V8 VIN:Y; PerVeh: 1;
1995	1998	Dodge	B1500	all	3.9L	Engine Cooling Fan Clutch; V6 VIN:X; PerVeh: 1;
1995	1998	Dodge	B1500	all	5.2L	Engine Cooling Fan Clutch; V8 VIN:Y; PerVeh: 1;
1998	1998	Dodge	B1500	all	5.9L	Engine Cooling Fan Clutch; V8 VIN:Z; PerVeh: 1;
1992	1994	Dodge	B250	all	3.9L	Engine Cooling Fan Clutch; V6 VIN:X; PerVeh: 1;
1993	1994	Dodge	B250	all	5.2L	Engine Cooling Fan Clutch; V8 CNG VIN:T; PerVeh: 1;
1993	1994	Dodge	B250	all	5.2L	Engine Cooling Fan Clutch; V8 VIN:Y; PerVeh: 1;
1993	1994	Dodge	B250	all	5.9L	Engine Cooling Fan Clutch; V8 VIN:Z; PerVeh: 1;
1995	1997	Dodge	B2500	all	3.9L	Engine Cooling Fan Clutch; V6 VIN:X; PerVeh: 1;
1995	1996	Dodge	B2500	all	5.2L	Engine Cooling Fan Clutch; V8 CNG VIN:T; PerVeh: 1;
1998	1998	Dodge	B2500	all	5.2L	Engine Cooling Fan Clutch; V8 LPG VIN:2; PerVeh: 1;
1995	1995	Dodge	B2500	all	5.2L	Engine Cooling Fan Clutch; V8 VIN:Y; PerVeh: 1;
1996	1996	Dodge	B2500	all	5.2L	Engine Cooling Fan Clutch; V8 VIN:Y; PerVeh: 1;
1997	1998	Dodge	B2500	all	5.2L	Engine Cooling Fan Clutch; V8 VIN:Y; PerVeh: 1;
1995	1998	Dodge	B2500	all	5.9L	Engine Cooling Fan Clutch; V8 VIN:Z; PerVeh: 1;
1993	1994	Dodge	B350	all	5.2L	Engine Cooling Fan Clutch; V8 CNG VIN:T; PerVeh: 1;
1993	1994	Dodge	B350	all	5.2L	Engine Cooling Fan Clutch; V8 VIN:Y; PerVeh: 1;
1993	1994	Dodge	B350	all	5.9L	Engine Cooling Fan Clutch; V8 VIN:Z; PerVeh: 1;
1995	1997	Dodge	B3500	all	5.2L	Engine Cooling Fan Clutch; V8 CNG VIN:T; PerVeh: 1;
1998	1998	Dodge	B3500	all	5.2L	Engine Cooling Fan Clutch; V8 LPG VIN:2; PerVeh: 1;
1995	1998	Dodge	B3500	all	5.2L	Engine Cooling Fan Clutch; V8 VIN:Y; PerVeh: 1;
1995	1998	Dodge	B3500	all	5.9L	Engine Cooling Fan Clutch; V8 VIN:Z; PerVeh: 1;
1998	1998	Dodge	Ram 1500	all	3.9L	Engine Cooling Fan Clutch; V6; PerVeh: 1;
1998	1998	Dodge	Ram 1500	all	3.9L	Engine Cooling Fan Clutch; V6 Distributor-Breakerless VIN:X; PerVeh: 1;
1994	1997	Dodge	Ram 1500	all	3.9L	Engine Cooling Fan Clutch; V6 VIN:X; PerVeh: 1;
1998	1998	Dodge	Ram 1500	all	3.9L	Engine Cooling Fan Clutch; V6 VIN:X; PerVeh: 1;
1999	2001	Dodge	Ram 1500	all	3.9L	Engine Cooling Fan Clutch; V6 VIN:X; PerVeh: 1;
1995	1997	Dodge	Ram 1500	all	5.2L	Engine Cooling Fan Clutch; V8 CNG VIN:T; PerVeh: 1;
2000	2000	Dodge	Ram 1500	all	5.2L	Engine Cooling Fan Clutch; V8 OHV VIN:Y; PerVeh: 1;
2000	2000	Dodge	Ram 1500	all	5.2L	Engine Cooling Fan Clutch; V8 SOHC; PerVeh: 1;
1994	1994	Dodge	Ram 1500	all	5.2L	Engine Cooling Fan Clutch; V8 VIN:Y; PerVeh: 1;
1995	1999	Dodge	Ram 1500	all	5.2L	Engine Cooling Fan Clutch; V8 VIN:Y; PerVeh: 1;
2000	2001	Dodge	Ram 1500	all	5.2L	Engine Cooling Fan Clutch; V8 VIN:Y; PerVeh: 1;
2003	2003	Dodge	Ram 1500	all	5.9L	Engine Cooling Fan Clutch; V8 VIN:Z; PerVeh: 1;
1997	1997	Dodge	Ram 1500 Van	all	3.9L	Engine Cooling Fan Clutch; V6 VIN:X; PerVeh: 1;
1999	2002	Dodge	Ram 1500 Van	all	3.9L	Engine Cooling Fan Clutch; V6 VIN:X; PerVeh: 1;
1995	1996	Dodge	Ram 1500 Van	all	5.2L	Engine Cooling Fan Clutch; V8 VIN:Y; PerVeh: 1;
1998	1998	Dodge	Ram 1500 Van	all	5.2L	Engine Cooling Fan Clutch; V8 VIN:Y; PerVeh: 1;
1999	2002	Dodge	Ram 1500 Van	all	5.2L	Engine Cooling Fan Clutch; V8 VIN:Y; PerVeh: 1;
2003	2003	Dodge	Ram 1500 Van	all	5.2L	Engine Cooling Fan Clutch; V8 VIN:Y; PerVeh: 1;
1999	2003	Dodge	Ram 1500 Van	all	5.9L	Engine Cooling Fan Clutch; V8 VIN:Z; PerVeh: 1;
1995	1996	Dodge	Ram 2500	all	5.2L	Engine Cooling Fan Clutch; V8 CNG VIN:T; PerVeh: 1;
1994	1996	Dodge	Ram 2500	all	5.2L	Engine Cooling Fan Clutch; V8 VIN:Y; PerVeh: 1;
1997	2001	Dodge	Ram 2500	all	5.2L	Engine Cooling Fan Clutch; V8 VIN:Y; PerVeh: 1;
1994	2002	Dodge	Ram 2500	all	8.0L	Engine Cooling Fan Clutch; V10 VIN:W; PerVeh: 1;
2001	2001	Dodge	Ram 2500 Van	all	3.9L	Engine Cooling Fan Clutch; V6 VIN:X; PerVeh: 1;
1999	2003	Dodge	Ram 2500 Van	all	5.2L	Engine Cooling Fan Clutch; V8 CNG VIN:T; PerVeh: 1;
1999	2000	Dodge	Ram 2500 Van	all	5.2L	Engine Cooling Fan Clutch; V8 LPG VIN:2; PerVeh: 1;
1996	1998	Dodge	Ram 2500 Van	all	5.2L	Engine Cooling Fan Clutch; V8 VIN:Y; PerVeh: 1;
1999	2002	Dodge	Ram 2500 Van	all	5.2L	Engine Cooling Fan Clutch; V8 VIN:Y; PerVeh: 1;
2003	2003	Dodge	Ram 2500 Van	all	5.2L	Engine Cooling Fan Clutch; V8 VIN:Y; PerVeh: 1;
1999	2003	Dodge	Ram 2500 Van	all	5.9L	Engine Cooling Fan Clutch; V8 VIN:Z; PerVeh: 1;
1994	2002	Dodge	Ram 3500	all	8.0L	Engine Cooling Fan Clutch; V10 VIN:W; PerVeh: 1;
1999	2003	Dodge	Ram 3500 Van	all	5.2L	Engine Cooling Fan Clutch; V8 CNG VIN:T; PerVeh: 1;
1999	2000	Dodge	Ram 3500 Van	all	5.2L	Engine Cooling Fan Clutch; V8 LPG VIN:2; PerVeh: 1;
1996	1996	Dodge	Ram 3500 Van	all	5.2L	Engine Cooling Fan Clutch; V8 VIN:Y; PerVeh: 1;
1999	1999	Dodge	Ram 3500 Van	all	5.2L	Engine Cooling Fan Clutch; V8 VIN:Y; PerVeh: 1;
2000	2001	Dodge	Ram 3500 Van	all	5.2L	Engine Cooling Fan Clutch; V8 VIN:Y; PerVeh: 1;
2002	2002	Dodge	Ram 3500 Van	all	5.2L	Engine Cooling Fan Clutch; V8 VIN:Y; PerVeh: 1;
2003	2003	Dodge	Ram 3500 Van	all	5.2L	Engine Cooling Fan Clutch; V8 VIN:Y; PerVeh: 1;
1997	1998	Dodge	Ram 3500 Van	all	5.9L	Engine Cooling Fan Clutch; V8 VIN:Z; PerVeh: 1;
1999	2002	Dodge	Ram 3500 Van	all	5.9L	Engine Cooling Fan Clutch; V8 VIN:Z; PerVeh: 1;
2003	2003	Dodge	Ram 3500 Van	all	5.9L	Engine Cooling Fan Clutch; V8 VIN:Z; PerVeh: 1;
1999	2001	Dodge	Ramcharger	all	5.2L	Engine Cooling Fan Clutch; V8 VIN:Y; PerVeh: 1;
1994	1998	Jeep	Grand Cherokee	all	5.2L	Engine Cooling Fan Clutch; V8 VIN:Y; PerVeh: 1;
1998	1998	Jeep	Grand Cherokee	all	5.9L	Engine Cooling Fan Clutch; V8 VIN:Z; PerVeh: 1;

Information
Home
Content
Content
Content

ACDELCO	15 80253
ACDELCO NON GM	1580253
ACDELCO PROFESSIONAL SHKSTRUT	1580253
AIRTEX AUTOMOTIVE DIVISION	2791TA
AIRTEX ENG. MGMT. SYSTEMS	2791TA
API TEMP CONTROLS	7136700
AUTOPART INTERNATIONAL	7136700
AUTOZONETORQFLO	922791
BASE HVAC	36700
BRAVO	4 7271
CAR CARE	FC2791
CARQUEST	77271
CARQUEST	272306
CARQUESTCOMPRESSOR WORKS	77271
COMPRESSOR WORKS	922791
COOL AIR AND ELECTRIC REMANUFACTURING	LF283
COOLING DEPOT CANADA	36700
DERALE	22159
EVAP	4859R
EVERCO	A5545
FENCO	FFC5791T
FOUR SEASONS	36700
FRIGETTE CORP	230283
GILMORE PRODUCTS	36700
GILMORE PRODUCTS	GC371
GILMORE PRODUCTS	35638
GLOBAL PARTS	2911234
GLOBAL PARTS	2911261
IMPERIAL	215159
KEEP ON GREEN	KG2791
KOOLKLUTCH	115159
KOOLKLUTCH	115160
MASTER PRO SELECT WATER PUMP	2791TM
MURRAY HEAT TRANSFER	36700
MURRAY HEAT TRANSFER	272306
NAPA	272306
PARTS MASTERHAYDEN	2791
PROLIANCE READY AIRE	4859R
PRONTOCOMPRESSOR WORKS	922791
RANSHU AC	402228
RANSHU AC	402262
Ready Aire	4859R
SPECTRA PREMIUM IND INC	2791
SPECTRA RADIATORSSIZE CODES	2791
TORQFLO BY COMPRESSORWORKS INC	922791
TRUCK AIR PARTSMFG	067211
US MOTOR WORKS	22159
US MOTOR WORKS	22160
VISTEON	140063
VISTEON	140064
