Cooling Engine

2614

HAYDEN

Click Image for Larger View
(Images are representative only and may not reflect the actual product)

❮ ❯

1 / 1


Price:

List:

Shipping:

In Stock: 2

We request registration so we can make sure you receive the right parts
and to properly estimate shipping and handling.
Returns, defects and other issue can arise.
This allows us to handle issues with out much involvement from you.
We aim to be as thorough and speedius as possible.
If you have any questions you can contact us at 325-235-2420

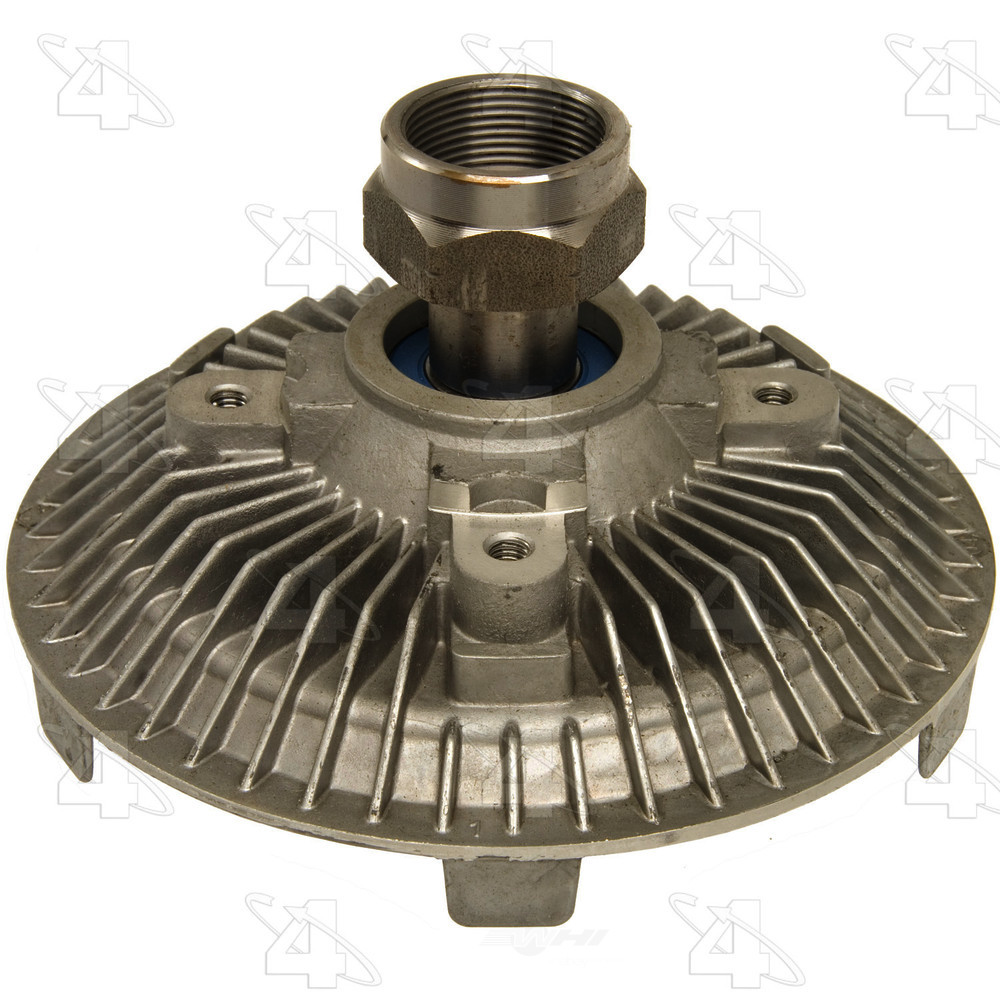

HAYDEN Standard Rotation Thermal Standard Duty Fan Clutch

Additional Info: Standard Rotation Thermal Standard Duty Fan Clutch Designed, tested, and built by application; OE performance, fit, and appearance; Precision machined; Out of box installation 1. Package Dimensions: 4.25 x 6.25 x 6.25 inches 2. UPC: 036752026142 3. Bolt Quantity: 4 4. Bolt Thread: M6 x 1.0 Hole 5. Bolt Thread: M6x1.000 6. Clutch Maximum Diameter: 5.99 in 7. Clutch Type: B - Non-Thermal & Std Thermal 8. Color: Raw Aluminum in Color 9. Description: Fan Clutches 10. Distance From Clutch To Mounting Flange: 1.75 in 11. Drawing Type: B 12. Duty Rating: Standard 13. Electronic Clutch?: Non Electronic 14. Fan Bolt Circle IN: 3.25 in 15. Fan Bolt Circle MM: 82.55 mm 16. Fan Bolt Circle MM: 82.6 mm 17. Fan Mount Dia. IN: 2.62 in 18. Fan Mount Dia. IN: 2.621 in 19. Fan Mount Dia. MM: 66.6 mm 20. Fan Mount Height MM: 44.45 mm 21. Fan Mount Height MM: 44.5 mm 22. Material: Aluminum 23. Meets / Exceeds OEM?: Yes 24. Mount Dia. IN: 1.44 (36mm) HEX in 25. Mount Dia. IN: 1.440 in 26. Mount Dia. MM: 36 HEX mm 27. Mounting Hardware?: Not Included 28. Mounting Hole Quantity: 4 29. Mounting Type: HEX 30. New or Reman: New 31. O.E. Replacement?: Yes 32. Overall Dia. MM: 152.1 mm 33. Overall Height IN: 3.34 in 34. Overall Height IN: 3.35 in 35. Overall Height MM: 85.1 mm 36. Performance Rated?: Yes 37. Pilot Depth IN: 0.7 in 38. Pilot Depth MM: 17.78 mm 39. Pilot Depth MM: 17.8 mm 40. Pilot Dia. IN: M30 x 1.500 in 41. Rotation: STD 42. Style: Standard Duty 43. Type: Thermal 44. Country of Origin: MX 45. Remanufactured Part: N

Specifications

Re-manufactured or New: New

From-To:		Make:	Model:	Sub:	Engine:	Notes:
1984	1985	Ford	Bronco II	all	2.8L	Engine Cooling Fan Clutch; 171cid V6 VIN:S; PerVeh: 1;
1986	1990	Ford	Bronco II	all	2.9L	Engine Cooling Fan Clutch; 177cid V6 VIN:T; PerVeh: 1;
1983	1985	Ford	Ranger	all	2.8L	Engine Cooling Fan Clutch; 171cid V6 VIN:S; PerVeh: 1;
1986	1988	Ford	Ranger	all	2.9L	Engine Cooling Fan Clutch; 177cid V6 FI VIN:T; PerVeh: 1;
1989	1990	Ford	Ranger	all	2.9L	Engine Cooling Fan Clutch; 177cid V6 VIN:T; PerVeh: 1;
1991	1992	Ford	Ranger	all	2.9L	Engine Cooling Fan Clutch; V6 VIN:T; PerVeh: 1;

Information
Home
Content
Content
Content

ACDELCO	1540312
ACDELCO	343721
ACDELCO NON GM	343721
ACDELCO NON GM	1540312
ACDELCO PROFESSIONAL SHKSTRUT	1540312
ACDELCO PROFESSIONAL SHKSTRUT	343721
AIRTEX AUTOMOTIVE DIVISION	2614TA
AIRTEX AUTOMOTIVE DIVISION	3378TA
AIRTEX ENG. MGMT. SYSTEMS	3378TA
AIRTEX ENG. MGMT. SYSTEMS	2614TA
API TEMP CONTROLS	7136968
AUTOPART INTERNATIONAL	7136968
AUTOZONETORQFLO	922614
BASE HVAC	36968
BRAVO	4 7214
CAR CARE	FC2614
CARQUEST	773378
CARQUEST	77214
CARQUEST	273378
CARQUESTCOMPRESSOR WORKS	77214
CARQUESTHAYDEN	77214
COMPRESSOR WORKS	922614
COOL AIR AND ELECTRIC REMANUFACTURING	LF180
COOLING DEPOT CANADA	36968
DERALE	22060
DERALE	21060
EVAP	4860
EVERCO	A8157
FENCO	FFC5614T
FLEX A LITE	5590
FOUR SEASONS	36968
FRIGETTE CORP	230 180
GENUINE AIR	773378
GILMORE PRODUCTS	GC420
GILMORE PRODUCTS	36968
GILMORE PRODUCTS	36895
IMPERIAL	215060
KEEP ON GREEN	KG2614
KOOLKLUTCH	115060
MASTER PRO SELECT WATER PUMP	3378TM
MOTORCRAFT	YB 445
MOTORCRAFT	YB 453
MOTORCRAFT BASE	YB445
MOTORCRAFT BASE	YB453
MURRAY HEAT TRANSFER	273378
MURRAY HEAT TRANSFER	36968
NAPA	273378
PARTS MASTERHAYDEN	2614
PROLIANCE READY AIRE	4860
PROLIANCE READY AIRE	4260R
PRONTOCOMPRESSOR WORKS	922614
RANSHU AC	402180
RANSHU AC	402614
Ready Aire	4260R
Ready Aire	4860
SPECTRA PREMIUM IND INC	2614
SPECTRA RADIATORSSIZE CODES	2614
STANT	55560
TORQFLO BY COMPRESSORWORKS INC	922614
US MOTOR WORKS	22060
US MOTOR WORKS	21060
VISTEON	140026
