Cooling Engine

22086

GATES

Click Image for Larger View
(Images are representative only and may not reflect the actual product)

❮ ❯

1 / 1


Price:

List:

Shipping:

In Stock: 2

We request registration so we can make sure you receive the right parts
and to properly estimate shipping and handling.
Returns, defects and other issue can arise.
This allows us to handle issues with out much involvement from you.
We aim to be as thorough and speedius as possible.
If you have any questions you can contact us at 325-235-2420

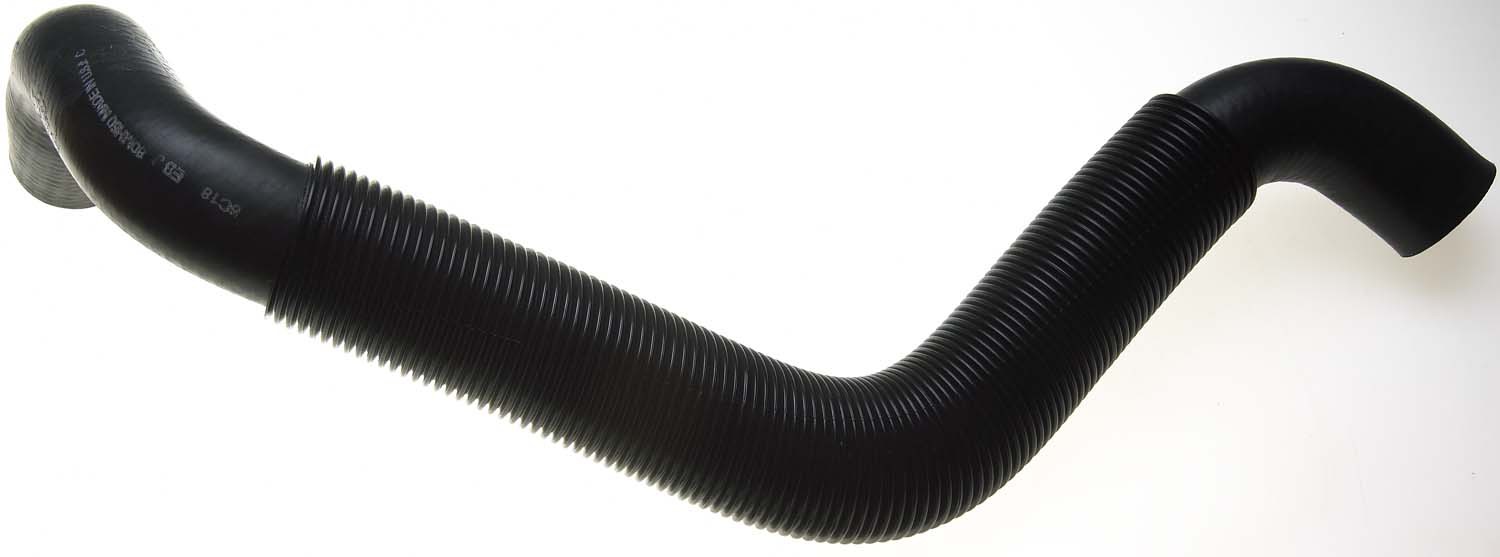

GATES Radiator Coolant Hose Molded

Additional Info: Gates Molded Coolant Hose is manufactured to fit specific applications. Similar to OEM specifications. Approved for marine applications. Recommend for upper, lower, by-pass, heater and other coolant hose applications. Heat and ozone resistant cover. Engineered to resist electrochemical degradation - the leading cause of hose failure. Re-engineered materials resist vacuum collapse. This reduces the need for internal springs in many applications. Meets SAE 20R4 and 20R3 Type EC Class D-1 and D-2 specifications. Temperature Rating: -40Deg F to 275Deg F (-40Deg C to 135Deg C) in coolant hose applications. Note: Gates recommends replacing standard worm drive and spring loaded clamps with Gates PowerGrip(R) SB Clamps each time a new coolant hose is installed. Gates - Driven By Possibility 1. Package Dimensions: 21.75 x 19.00 x 3.04 inches 2. UPC: 072053114669 3. Centerline Length: 30.2 IN 4. Centerline Length: 767 MM 5. Contains Spring: No 6. Inside Diameter 1: 1.52 IN 7. Inside Diameter 1: 39 MM 8. Inside Diameter 2: 1.77 IN 9. Inside Diameter 2: 45 MM 10. Modular Hose: No 11. Number of Branches: 0 12. Country of Origin: US

Specifications

Re-manufactured or New: New

From-To:		Make:	Model:	Sub:	Engine:	Notes:
1996	1998	Chevrolet	C1500	all	4.3L	Radiator Coolant Hose; V6 VIN:W; PerVeh: 1;
1994	1995	Chevrolet	C1500	all	4.3L	Radiator Coolant Hose; V6 VIN:Z; PerVeh: 1;
1994	1995	Chevrolet	C2500	all	4.3L	Radiator Coolant Hose; V6 VIN:Z; PerVeh: 1;
1996	1998	Chevrolet	K1500	all	4.3L	Radiator Coolant Hose; V6 VIN:W; PerVeh: 1;
1994	1995	Chevrolet	K1500	all	4.3L	Radiator Coolant Hose; V6 VIN:Z; PerVeh: 1;
1994	1995	Chevrolet	K2500	all	4.3L	Radiator Coolant Hose; V6 VIN:Z; PerVeh: 1;
1996	1998	GMC	C1500	all	4.3L	Radiator Coolant Hose; V6 VIN:W; PerVeh: 1;
1994	1995	GMC	C1500	all	4.3L	Radiator Coolant Hose; V6 VIN:Z; PerVeh: 1;
1994	1995	GMC	C2500	all	4.3L	Radiator Coolant Hose; V6 VIN:Z; PerVeh: 1;
1996	1998	GMC	K1500	all	4.3L	Radiator Coolant Hose; V6 VIN:W; PerVeh: 1;
1994	1995	GMC	K1500	all	4.3L	Radiator Coolant Hose; V6 VIN:Z; PerVeh: 1;
1994	1995	GMC	K2500	all	4.3L	Radiator Coolant Hose; V6 VIN:Z; PerVeh: 1;

Information
Home
Home
Resources
Resources
Home

GENERAL MOTORS CORP	15965640
GENERAL MOTORS CORP	15963811
GENERAL MOTORS CORP	15029023
GENERAL MOTORS OE	15029023
GENERAL MOTORS OE	15963811
GENERAL MOTORS OE	15965640
OEM	15963811
OEM	15965640
OEM	15029023 Manufacturer AM Part Number Manufacturer AM Part Number
ACDELCO CANADA NEW	26257X
ACDELCO NON GM	26257X
ACDELCO PROFESSIONAL	26257X
ACDELCO PROFESSIONAL CANADA	26257X
ACDELCO US	26257X
AFTERMARKET PRODUCTS	26257X
AFTERMARKET PRODUCTS	62074
AFTERMARKET PRODUCTS	22086
AFTERMARKET PRODUCTS	1028
AFTERMARKET PRODUCTS	71725
AFTERMARKET PRODUCTS	8767
AFTERMARKET PRODUCTS	C2086
AFTERMARKET PRODUCTS	KM 3372
AFTERMARKET PRODUCTS	KM3372
CADNA ARMORMARK	22086
CADNA PRESTONE	22086
CARQUEST	22086
CARQUESTGATES	22086
CONTINENTAL ELITE	62074
CONTINENTAL ELITE	1028
DAYCO PRIVATE LABEL	E71725
DAYCO PRODUCTS LLC	E71725
DAYCO PRODUCTS LLC	71725
FRESHSTART	1028
GATES	MH2086
GATES CANADA	22086
GATES MEXICO	22086
GENERAL MOTORS AU	15029023
GENERAL MOTORS AU	15963811
GENERAL MOTORS AU	15965640
GENUINE GM PARTS CANADA	15963811
GENUINE GM PARTS CANADA	15965640
GENUINE GM PARTS CANADA	15029023
GOODYEAR TIRES	1028
GOODYEAR TIRES	62074
MASTER PRO CONTROL MODULES	22086
MASTER PRO CONTROL MODULES	C2086
MASTER PRO FUEL SYSTEMS	C2086
MASTER PRO FUEL SYSTEMS	22086
MASTERPRO	22086
MASTERPRO	C2086
MOTORCRAFT	KM 3372
MOTORCRAFT	KM3372
MOTORCRAFT BASE	KM3372
MOTORCRAFT BASE	KM 3372
NAPA	8767
NAPA CANADABELTS AND HOSE URA	8767
NAPABELTS and HOSE NBH	8767
OETECHNOLOGY SERIES	22086
PARTS MASTERCADNA	22086
PRONTOCADNA	22086
ROADMAX	C2086
STANT	22086
