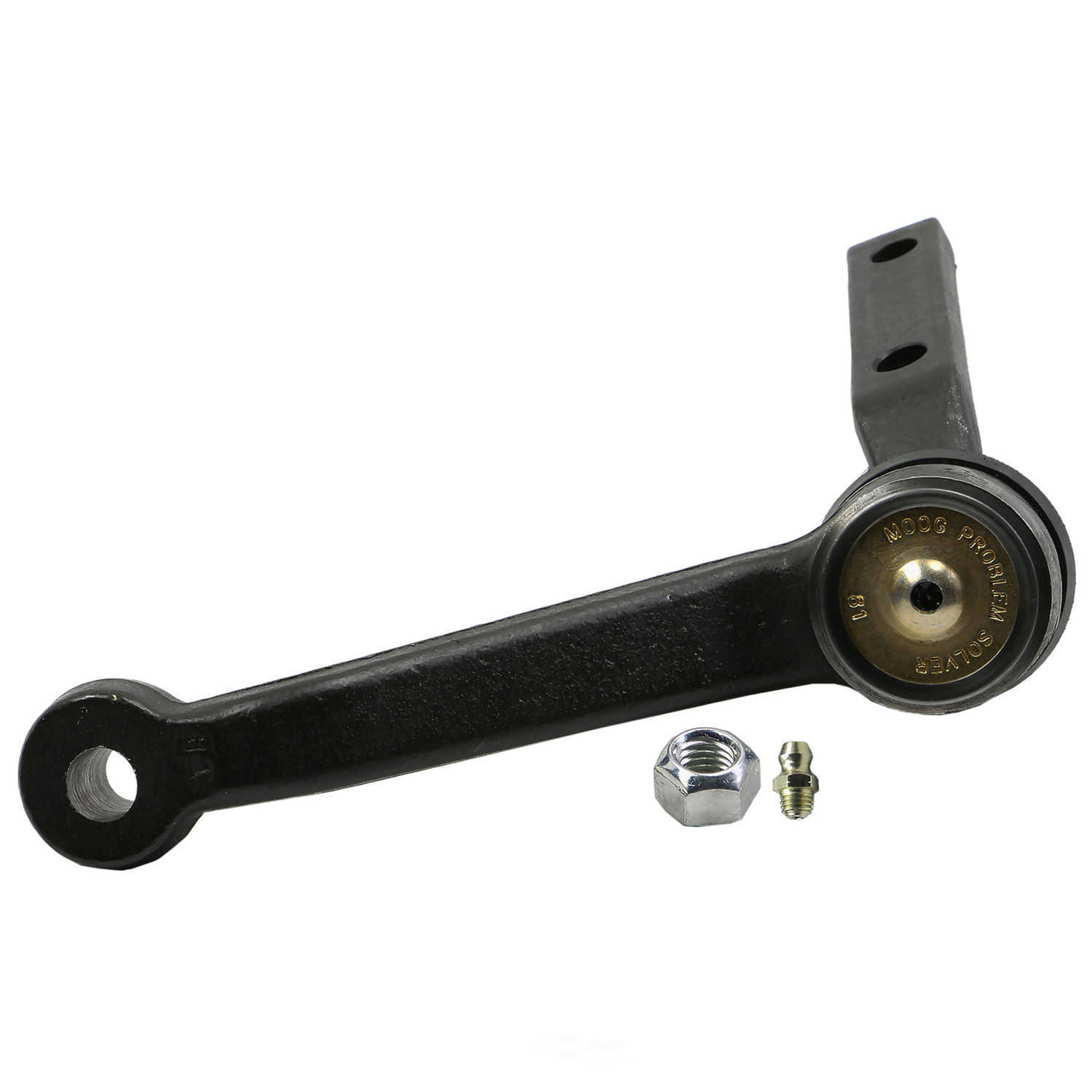

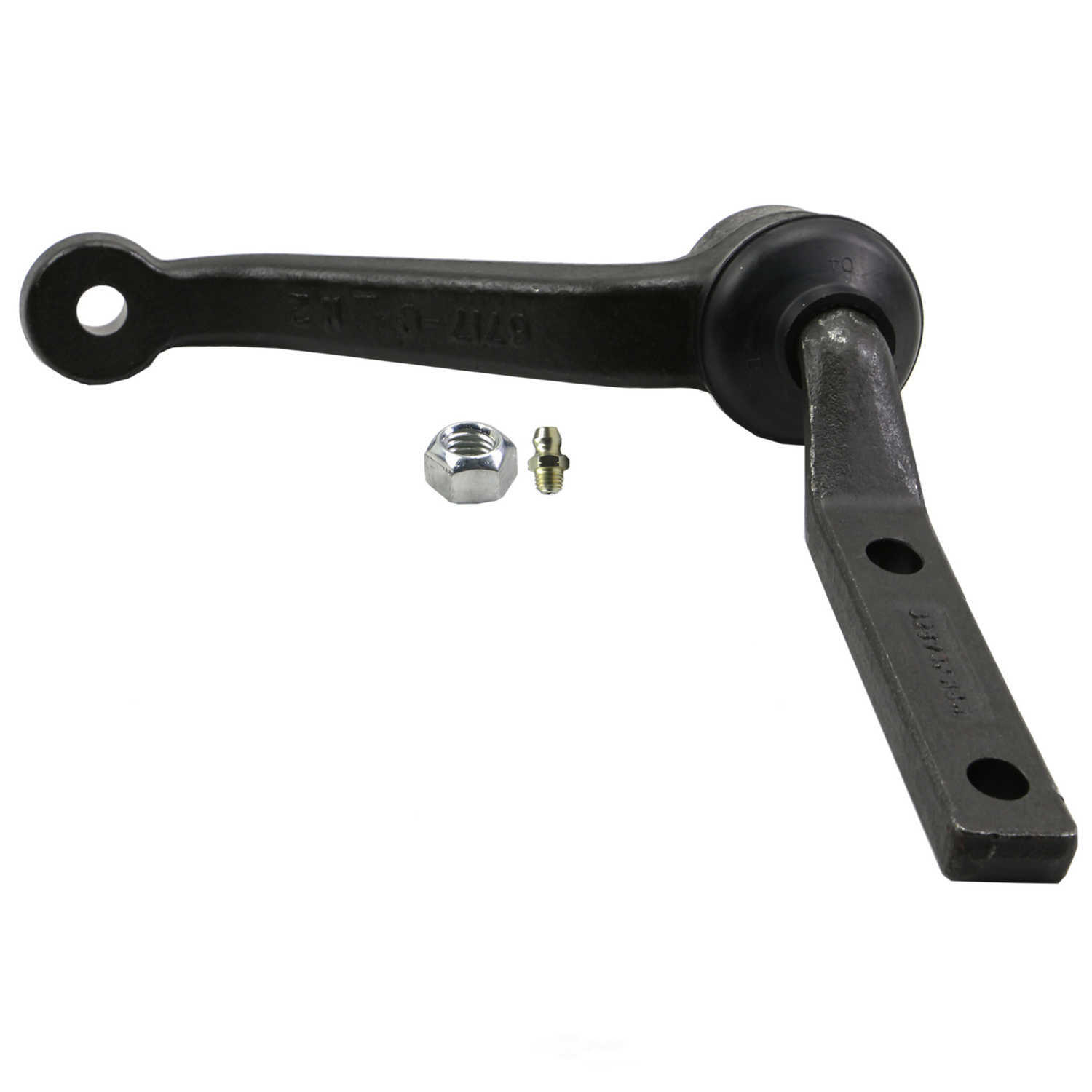

Steering Idler Arm

MOOG K6249 Steering Idler Arm By constantly introducing design enhancements that extend product life and simplify installation and replacement, MOOG has earned its reputation as the chassis industry's Problem Solver. Loose or worn chassis parts can lead to premature tire wear Engineered steel composition results in a stronger component Greaseable socket reduces corrosion and wear by allowing new lubricant to flush contaminants Heavy-duty design Powdered metal gusher bearing design enables grease to flow through bearing to Package Dimensions: 10.50 x 8.00 x 2.25 inches Package Weight: 3.4 lb Package Quantity: 1 UPC: 080066124636 Length: 6.240 IN Length: 158.5 MM Mounting Hole Diameter: 2.846 IN Mounting Hole Diameter: 72.3 MM Pre-Greased: Yes Country of Origin: US

Specifications

Height: 2.25

Width: 10.50

Length: 8.00

Weight: 3.4

Re-manufactured or New: New

From-To:		Make:	Model:	Sub:	Engine:	Notes:
1982	1986	Chevrolet	Camaro	all	2.5L	Steering Idler Arm; 151cid L4 FI VIN:2; PerVeh: 1;
1985	1987	Chevrolet	Camaro	all	2.8L	Steering Idler Arm; 173cid V6 FI VIN:S; PerVeh: 1;
1982	1984	Chevrolet	Camaro	all	2.8L	Steering Idler Arm; 173cid V6 VIN:1; PerVeh: 1;
1988	1989	Chevrolet	Camaro	all	2.8L	Steering Idler Arm; 173cid V6 VIN:S; PerVeh: 1;
1990	1990	Chevrolet	Camaro	all	3.1L	Steering Idler Arm; 189cid V6 VIN:T; PerVeh: 1;
1991	1992	Chevrolet	Camaro	all	3.1L	Steering Idler Arm; V6 VIN:T; PerVeh: 1;
1983	1983	Chevrolet	Camaro	all	5.0L	Steering Idler Arm; 305cid V8 4BBL VIN:7,H; PerVeh: 1;
1985	1986	Chevrolet	Camaro	all	5.0L	Steering Idler Arm; 305cid V8 4BBL VIN:G,H; PerVeh: 1;
1982	1982	Chevrolet	Camaro	all	5.0L	Steering Idler Arm; 305cid V8 4BBL VIN:H; PerVeh: 1;
1987	1987	Chevrolet	Camaro	all	5.0L	Steering Idler Arm; 305cid V8 4BBL VIN:H; PerVeh: 1;
1985	1987	Chevrolet	Camaro	all	5.0L	Steering Idler Arm; 305cid V8 FI MFI VIN:F; PerVeh: 1;
1982	1982	Chevrolet	Camaro	all	5.0L	Steering Idler Arm; 305cid V8 FI TBI VIN:7; PerVeh: 1;
1983	1983	Chevrolet	Camaro	all	5.0L	Steering Idler Arm; 305cid V8 FI TBI VIN:S; PerVeh: 1;
1988	1989	Chevrolet	Camaro	all	5.0L	Steering Idler Arm; 305cid V8 MFI VIN:F; PerVeh: 1;
1988	1989	Chevrolet	Camaro	all	5.0L	Steering Idler Arm; 305cid V8 TBI VIN:E; PerVeh: 1;
1990	1990	Chevrolet	Camaro	all	5.0L	Steering Idler Arm; 305cid V8 VIN:E,F; PerVeh: 1;
1984	1984	Chevrolet	Camaro	all	5.0L	Steering Idler Arm; 305cid V8 VIN:G,H; PerVeh: 1;
1991	1992	Chevrolet	Camaro	all	5.0L	Steering Idler Arm; V8 VIN:E,F; PerVeh: 1;
1987	1987	Chevrolet	Camaro	all	5.7L	Steering Idler Arm; 350cid V8 FI VIN:8; PerVeh: 1;
1988	1990	Chevrolet	Camaro	all	5.7L	Steering Idler Arm; 350cid V8 VIN:8; PerVeh: 1;
1991	1992	Chevrolet	Camaro	all	5.7L	Steering Idler Arm; V8 VIN:8; PerVeh: 1;
1982	1986	Pontiac	Firebird	all	2.5L	Steering Idler Arm; 151cid L4 FI VIN:2; PerVeh: 1;
1982	1983	Pontiac	Firebird	all	2.5L	Steering Idler Arm; 151cid L4 VIN:F; PerVeh: 1;
1985	1987	Pontiac	Firebird	all	2.8L	Steering Idler Arm; 173cid V6 FI VIN:S; PerVeh: 1;
1982	1982	Pontiac	Firebird	all	2.8L	Steering Idler Arm; 173cid V6 VIN:1; PerVeh: 1;
1983	1984	Pontiac	Firebird	all	2.8L	Steering Idler Arm; 173cid V6 VIN:1,L; PerVeh: 1;
1988	1989	Pontiac	Firebird	all	2.8L	Steering Idler Arm; 173cid V6 VIN:S; PerVeh: 1;
1990	1990	Pontiac	Firebird	all	3.1L	Steering Idler Arm; 189cid V6 VIN:T; PerVeh: 1;
1991	1992	Pontiac	Firebird	all	3.1L	Steering Idler Arm; V6 VIN:T; PerVeh: 1;
1989	1989	Pontiac	Firebird	all	3.8L	Steering Idler Arm; 231cid V6 Turbo VIN:7; PerVeh: 1;
1983	1983	Pontiac	Firebird	all	5.0L	Steering Idler Arm; 305cid V8 4BBL VIN:7,H; PerVeh: 1;
1985	1986	Pontiac	Firebird	all	5.0L	Steering Idler Arm; 305cid V8 4BBL VIN:G,H; PerVeh: 1;
1982	1982	Pontiac	Firebird	all	5.0L	Steering Idler Arm; 305cid V8 4BBL VIN:H; PerVeh: 1;
1987	1987	Pontiac	Firebird	all	5.0L	Steering Idler Arm; 305cid V8 4BBL VIN:H; PerVeh: 1;
1985	1987	Pontiac	Firebird	all	5.0L	Steering Idler Arm; 305cid V8 FI MFI VIN:F; PerVeh: 1;
1982	1982	Pontiac	Firebird	all	5.0L	Steering Idler Arm; 305cid V8 FI TBI VIN:7; PerVeh: 1;
1983	1983	Pontiac	Firebird	all	5.0L	Steering Idler Arm; 305cid V8 FI TBI VIN:S; PerVeh: 1;
1988	1989	Pontiac	Firebird	all	5.0L	Steering Idler Arm; 305cid V8 MFI VIN:F; PerVeh: 1;
1988	1989	Pontiac	Firebird	all	5.0L	Steering Idler Arm; 305cid V8 TBI VIN:E; PerVeh: 1;
1990	1990	Pontiac	Firebird	all	5.0L	Steering Idler Arm; 305cid V8 VIN:E,F; PerVeh: 1;
1984	1984	Pontiac	Firebird	all	5.0L	Steering Idler Arm; 305cid V8 VIN:G,H; PerVeh: 1;
1991	1992	Pontiac	Firebird	all	5.0L	Steering Idler Arm; V8 VIN:E,F; PerVeh: 1;
1987	1987	Pontiac	Firebird	all	5.7L	Steering Idler Arm; 350cid V8 FI VIN:8; PerVeh: 1;
1988	1990	Pontiac	Firebird	all	5.7L	Steering Idler Arm; 350cid V8 VIN:8; PerVeh: 1;
1991	1992	Pontiac	Firebird	all	5.7L	Steering Idler Arm; V8 VIN:8; PerVeh: 1;

Information
DYK10_103_ENG-R
MOOG_Greaseable_Design_Bulletin
AXCF3114
Home
Www
Home
Home

GENERAL MOTORS CORP.	7837595
GENERAL MOTORS OE	7837595
GMC OE	7837595
ACDELCO GOLD/PROFESSIONAL	45C1065
ACDELCO GOLD/PROFESSIONAL CANADA	45C1065
ACDELCO US	45C1065
AMERICAN HAMMERED	AHK6249
AUTOPART INTERNATIONAL	65149
AUTOPART INTERNATIONAL	2600-65149
AUTOSPECIALTY	09-82009
AUTOSPECIALTY	0982009E
AUTOSPECIALTY	982009
AUTOZONE INC	DG4501065
AUTOZONE INC	FC1399
AUTOZONE/DORMAN OE SOLUTIONS	535-748
AUTOZONE/DURALAST	FC1399
AUTOZONE/DURALAST CHASSIS	FA1399
AUTOZONE/DURALAST-CONI-SEAL	FA1399
AUTOZONE/DURALAST-QUALIS	FA1399
AUTOZONE/MILE MARKER	FA1399
AUTOZONE/MILE MARKER	DG4501065
AUTOZONE/MILE MARKER	FC1399
AZ/DURALAST REMAN CALIPERS (DELV24A02R1)	FC1399
AZ/DURALAST REMAN CALIPERS (DELV24A02R1)	FA1399
BRAVO	21020
Bravo/CPI	21020
CARQUEST	K6249
CARQUEST RED	21020
CARQUEST RED/AFFINIA CHASSIS	450-1065
CARQUEST RED/AFFINIA CHASSIS	RK6249
CARQUEST RED/CHASSIS CANADA	RK6249
CARQUEST/AFFINIA CHASSIS	450-1065
CENTRIC PARTS	620.62009
CENTRIC PARTS	621.62009
CHASSIS RITE BY MEVOTECH	RK6249
CHASSIS SELECT	ID-8832
CONI-SEAL	XK6249
DELCO REMY AMERICA	7837595
DELPHI	TA5326
DIY SOLUTIONS	SUS05311
DORMAN	IA6249PR
DORMAN	535-748
DORMAN OE SOLUTIONS	535-748
DORMAN PREMIUM	IA6249PR
DORMAN PREMIUM RD	535-748
Dorman/EZ Drain	535-748
ETS	35K6249
FALCON STEERING SYSTEMS	K6249
FALCON STEERING SYSTEMS	FK6249
FVP	IA6249
GENERAL MOTORS AU	7837595
INGALLS ENGINEERING CO. INC.	IK6249
MAREMONT ALPHA-NUMERIC	IA8832
MAREMONT NUMERIC	IA8832
MAS BASE	IA6249
MAS INDUSTRIES	IA6249
MASTER PRO CHASSIS	K6249
MASTER PRO STRUT MOUNTS	K6249
MCQUAY NORRIS	FA1399
MCQUAY NORRIS	FA1399GL
MEVOTECH CONTROL ARMS	MK6249
MEVOTECH LP	MK6249
MEVOTECH LP	K6249
MIDAS	IA1126
NAPA	2683635
NAPA CANADA/PROFORMER CHASSIS-PFE (EAST)	18832
NAPA CANADA/PROFORMER CHASSIS-PFW (WEST)	18832
NAPA/CHASSIS PARTS-NCP	18832
NAPA/CHASSIS PARTS-NCP	268-3635
NAPA/PROFORMER CHASSIS-PCC	18832
NAPA/SERVICE TOOLS-SER	18832
NAPA/SERVICE TOOLS-SER	268-3635
OE BRAND	DM15.46249
PARTS MASTER CHASSIS	K6249
PARTS MASTER/FALCON STEERING SYST	K6249
PARTS MASTER/FALCON STEERING SYST	FK6249
PARTS MASTER/MEVOTECH US	K6249
PARTS PLUS CHASSIS	PK6249
PERFECT CIRCLE	268-3635FT
PERFECT CIRCLE	2683635
PRECISION CHASSIS	K6249
PRO-SERIES OE PLUS	IA6249
PROFORGED	102-10017
PRONTO	K6249
PRONTO/FALCON	K6249
PRONTO/FALCON	PK6249
PRONTO/FEDERAL MOGUL	PK6249
PRONTO/MAS	IA6249
PRONTO/PTC	K6249
RARE PARTS INC.	20446
RAYBESTOS CHASSIS	450-1065B
RAYBESTOS CHASSIS	450-1065
RAYBESTOS STRUT & SPRING ASSYS	450-1065
SKP	SK6249
SUSPENSIA	X07ID0020
TRQ	PSA67581
TRW	18832
TRW AUTOMOTIVE	18832
TRW AUTOMOTIVE	JIA234
UNIMOTIVE	IA-8832
WESTERN AUTO	8062499
XACT FIT BY DANA	4501065B
XRF - PLATINUM	K6249
