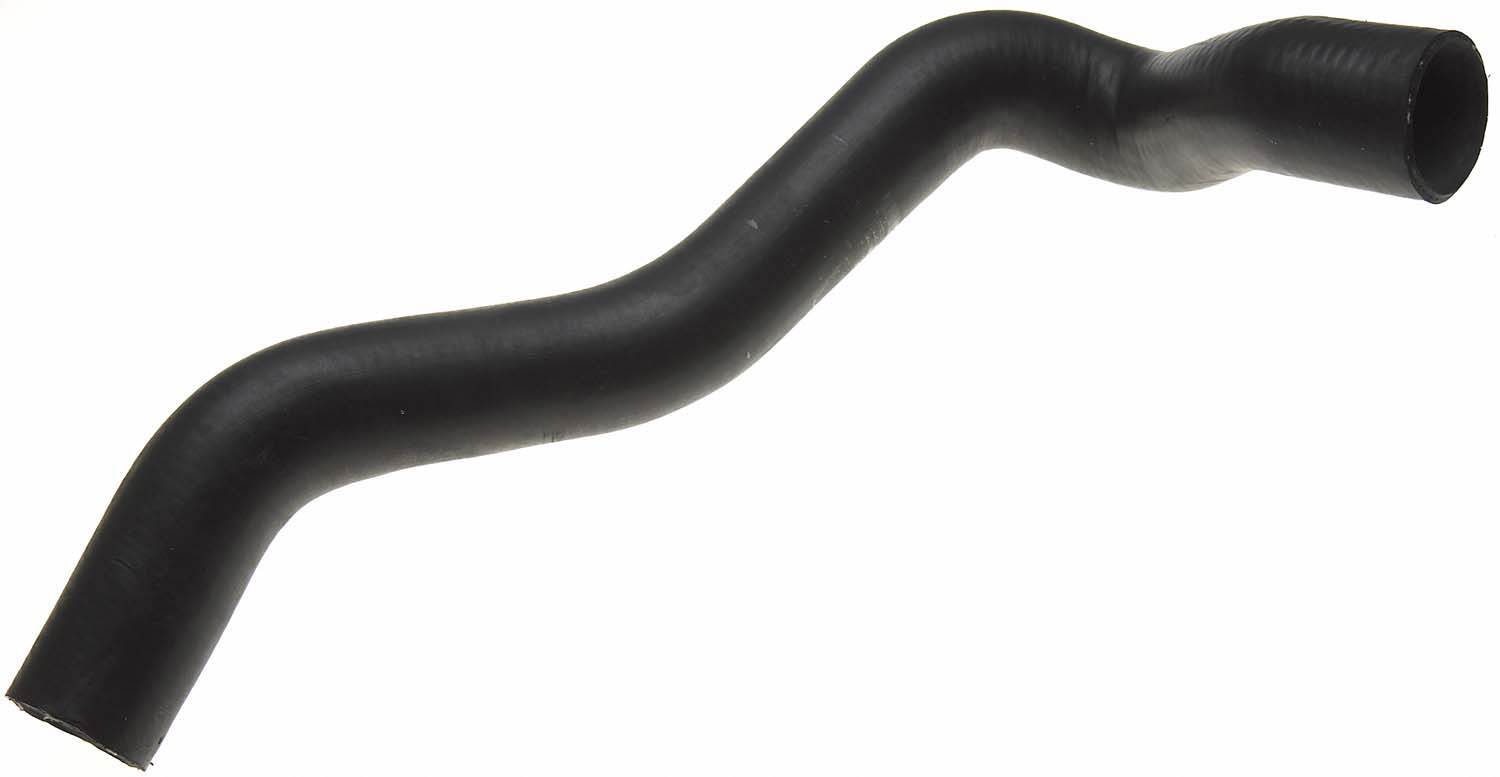

GATES Radiator Coolant Hose Molded

Additional Info: Gates Molded Coolant Hose is manufactured to fit specific applications. Similar to OEM specifications. Approved for marine applications. Recommend for upper, lower, by-pass, heater and other coolant hose applications. Heat and ozone resistant cover. Engineered to resist electrochemical degradation - the leading cause of hose failure. Re-engineered materials resist vacuum collapse. This reduces the need for internal springs in many applications. Meets SAE 20R4 and 20R3 Type EC Class D-1 and D-2 specifications. Temperature Rating: -40Deg F to 275Deg F (-40Deg C to 135Deg C) in coolant hose applications. Note: Gates recommends replacing standard worm drive and spring loaded clamps with Gates PowerGrip(R) SB Clamps each time a new coolant hose is installed. Gates - Driven By Possibility 1. Package Dimensions: 19.04 x 7.14 x 3.00 inches 2. UPC: 072053057041 3. Centerline Length: 23.8 IN 4. Centerline Length: 605 MM 5. Contains Spring: No 6. Inside Diameter 1: 1.5 IN 7. Inside Diameter 1: 38 MM 8. Inside Diameter 2: 1.75 IN 9. Inside Diameter 2: 44 MM 10. Modular Hose: No 11. Number of Branches: 0 12. Country of Origin: US

Specifications

Re-manufactured or New: New

From-To:		Make:	Model:	Sub:	Engine:	Notes:
1982	1982	Buick	LeSabre	all	4.4L	Radiator Coolant Hose; 267cid V8 VIN:J; PerVeh: 1;
1983	1984	Chevrolet	Caprice	all	3.8L	Radiator Coolant Hose; 229cid V6 VIN:9; PerVeh: 1;
1982	1982	Chevrolet	Caprice	all	3.8L	Radiator Coolant Hose; 229cid V6 VIN:K; PerVeh: 1;
1982	1982	Chevrolet	Caprice	all	4.4L	Radiator Coolant Hose; 267cid V8 VIN:J; PerVeh: 1;
1989	1989	Chevrolet	Caprice	all	5.0L	Radiator Coolant Hose; 305cid V8 FI TBI VIN:E; PerVeh: 1;
1990	1990	Chevrolet	Caprice	all	5.0L	Radiator Coolant Hose; 305cid V8 FI VIN:E; PerVeh: 1;
1982	1988	Chevrolet	Caprice	all	5.0L	Radiator Coolant Hose; 305cid V8 VIN:H; PerVeh: 1;
1989	1989	Chevrolet	Caprice	all	5.0L	Radiator Coolant Hose; 307cid V8 4BBL VIN:Y; PerVeh: 1;
1986	1986	Chevrolet	Caprice	all	5.0L	Radiator Coolant Hose; 307cid V8 VIN:Y; PerVeh: 1;
1988	1988	Chevrolet	Caprice	all	5.0L	Radiator Coolant Hose; 307cid V8 VIN:Y; PerVeh: 1;
1990	1990	Chevrolet	Caprice	all	5.0L	Radiator Coolant Hose; 307cid V8 VIN:Y; PerVeh: 1;
1985	1985	Chevrolet	Caprice	all	5.7L	Radiator Coolant Hose; 350cid V8 4BBL VIN:6; PerVeh: 1;
1989	1990	Chevrolet	Caprice	all	5.7L	Radiator Coolant Hose; 350cid V8 FI VIN:7; PerVeh: 1;
1986	1988	Chevrolet	Caprice	all	5.7L	Radiator Coolant Hose; 350cid V8 VIN:6; PerVeh: 1;
1982	1982	Chevrolet	Caprice	all	5.7L	Radiator Coolant Hose; 350cid V8 VIN:L; PerVeh: 1;
1983	1984	Chevrolet	El Camino	all	3.8L	Radiator Coolant Hose; 229cid V6 VIN:9; PerVeh: 1;
1982	1982	Chevrolet	El Camino	all	3.8L	Radiator Coolant Hose; 229cid V6 VIN:K; PerVeh: 1;
1985	1987	Chevrolet	El Camino	all	4.3L	Radiator Coolant Hose; 262cid V6 FI VIN:Z; PerVeh: 1;
1985	1986	Chevrolet	G10	all	4.3L	Radiator Coolant Hose; 262cid V6 VIN:N; PerVeh: 1;
1987	1990	Chevrolet	G10	all	4.3L	Radiator Coolant Hose; 262cid V6 VIN:Z; PerVeh: 1;
1991	1995	Chevrolet	G10	all	4.3L	Radiator Coolant Hose; V6 VIN:Z; PerVeh: 1;
1985	1986	Chevrolet	G20	all	4.3L	Radiator Coolant Hose; 262cid V6 VIN:N; PerVeh: 1;
1987	1990	Chevrolet	G20	all	4.3L	Radiator Coolant Hose; 262cid V6 VIN:Z; PerVeh: 1;
1991	1994	Chevrolet	G20	all	4.3L	Radiator Coolant Hose; V6 VIN:Z; PerVeh: 1;
1995	1995	Chevrolet	G20	all	4.3L	Radiator Coolant Hose; V6 VIN:Z; PerVeh: 1;
1987	1988	Chevrolet	G30	all	4.3L	Radiator Coolant Hose; 262cid V6 FI VIN:Z; PerVeh: 1;
1985	1986	Chevrolet	G30	all	4.3L	Radiator Coolant Hose; 262cid V6 VIN:N; PerVeh: 1;
1989	1990	Chevrolet	G30	all	4.3L	Radiator Coolant Hose; 262cid V6 VIN:Z; PerVeh: 1;
1991	1995	Chevrolet	G30	all	4.3L	Radiator Coolant Hose; V6 VIN:Z; PerVeh: 1;
1983	1984	Chevrolet	Impala	all	3.8L	Radiator Coolant Hose; 229cid V6 VIN:9; PerVeh: 1;
1982	1982	Chevrolet	Impala	all	3.8L	Radiator Coolant Hose; 229cid V6 VIN:K; PerVeh: 1;
1982	1982	Chevrolet	Impala	all	4.4L	Radiator Coolant Hose; 267cid V8 VIN:J; PerVeh: 1;
1982	1985	Chevrolet	Impala	all	5.0L	Radiator Coolant Hose; 305cid V8 VIN:H; PerVeh: 1;
1983	1985	Chevrolet	Impala	all	5.7L	Radiator Coolant Hose; 350cid V8 4BBL VIN:6; PerVeh: 1;
1982	1982	Chevrolet	Impala	all	5.7L	Radiator Coolant Hose; 350cid V8 4BBL VIN:L; PerVeh: 1;
1983	1983	Chevrolet	Malibu	all	3.8L	Radiator Coolant Hose; 229cid V6 VIN:9; PerVeh: 1;
1982	1982	Chevrolet	Malibu	all	3.8L	Radiator Coolant Hose; 229cid V6 VIN:K; PerVeh: 1;
1983	1984	Chevrolet	Monte Carlo	all	3.8L	Radiator Coolant Hose; 229cid V6 VIN:9; PerVeh: 1;
1982	1982	Chevrolet	Monte Carlo	all	3.8L	Radiator Coolant Hose; 229cid V6 VIN:K; PerVeh: 1;
1983	1984	GMC	Caballero	all	3.8L	Radiator Coolant Hose; 229cid V6 VIN:9; PerVeh: 1;
1982	1982	GMC	Caballero	all	3.8L	Radiator Coolant Hose; 229cid V6 VIN:K; PerVeh: 1;
1985	1987	GMC	Caballero	all	4.3L	Radiator Coolant Hose; 262cid V6 FI VIN:Z; PerVeh: 1;
1985	1986	GMC	G1500	all	4.3L	Radiator Coolant Hose; 262cid V6 VIN:N; PerVeh: 1;
1987	1990	GMC	G1500	all	4.3L	Radiator Coolant Hose; 262cid V6 VIN:Z; PerVeh: 1;
1991	1995	GMC	G1500	all	4.3L	Radiator Coolant Hose; V6 VIN:Z; PerVeh: 1;
1985	1986	GMC	G2500	all	4.3L	Radiator Coolant Hose; 262cid V6 VIN:N; PerVeh: 1;
1987	1990	GMC	G2500	all	4.3L	Radiator Coolant Hose; 262cid V6 VIN:Z; PerVeh: 1;
1991	1995	GMC	G2500	all	4.3L	Radiator Coolant Hose; V6 VIN:Z; PerVeh: 1;
1987	1988	GMC	G3500	all	4.3L	Radiator Coolant Hose; 262cid V6 FI VIN:Z; PerVeh: 1;
1985	1986	GMC	G3500	all	4.3L	Radiator Coolant Hose; 262cid V6 VIN:N; PerVeh: 1;
1989	1990	GMC	G3500	all	4.3L	Radiator Coolant Hose; 262cid V6 VIN:Z; PerVeh: 1;
1991	1995	GMC	G3500	all	4.3L	Radiator Coolant Hose; V6 VIN:Z; PerVeh: 1;
1982	1982	Oldsmobile	Delta 88	all	4.4L	Radiator Coolant Hose; 267cid V8 VIN:J; PerVeh: 1;
1986	1986	Pontiac	Bonneville	all	4.3L	Radiator Coolant Hose; 262cid V6 FI VIN:Z; PerVeh: 1;
1986	1987	Pontiac	Grand Prix	all	4.3L	Radiator Coolant Hose; 262cid V6 FI VIN:Z; PerVeh: 1;
1985	1986	Pontiac	Parisienne	all	4.3L	Radiator Coolant Hose; 262cid V6 FI VIN:Z; PerVeh: 1;
1982	1982	Pontiac	Parisienne	all	4.4L	Radiator Coolant Hose; 267cid V8 VIN:J; PerVeh: 1;
1982	1982	Pontiac	Parisienne	all	5.0L	Radiator Coolant Hose; 305cid V8 VIN:H; PerVeh: 1;
1983	1986	Pontiac	Parisienne	all	5.0L	Radiator Coolant Hose; 305cid V8 VIN:H; PerVeh: 1;

Information
GA PF004-13
Home
Home
Resources
Resources
Home

GENERAL MOTORS CORP	14035474
GENERAL MOTORS CORP	10120060
GENERAL MOTORS CORP	15599362
GENERAL MOTORS CORP	15563424
GENERAL MOTORS CORP	14035475
GENERAL MOTORS CORP	14044103
GENERAL MOTORS OE	14044103
GENERAL MOTORS OE	14035475
GENERAL MOTORS OE	15563424
GENERAL MOTORS OE	15599362
GENERAL MOTORS OE	10120060
GENERAL MOTORS OE	14035474
OEM	14035474
OEM	10120060
OEM	15563424
OEM	14044103
OEM	14035475
OEM	15599362
ACDELCO	10120060
ACDELCO	14035474
ACDELCO	14035475
ACDELCO	14044103
ACDELCO	15563424
ACDELCO	15599362
ACDELCO NON GM	24136L
ACDELCO PROFESSIONAL	24136L
ACDELCO PROFESSIONAL CANADA	24136L
ACDELCO US	24136L
AFTERMARKET PRODUCTS	24136L
AFTERMARKET PRODUCTS	260
AFTERMARKET PRODUCTS	2045
AFTERMARKET PRODUCTS	273
AFTERMARKET PRODUCTS	23200
AFTERMARKET PRODUCTS	409
AFTERMARKET PRODUCTS	41161
AFTERMARKET PRODUCTS	41198
AFTERMARKET PRODUCTS	41247
AFTERMARKET PRODUCTS	41401
AFTERMARKET PRODUCTS	51312457
AFTERMARKET PRODUCTS	51313836
AFTERMARKET PRODUCTS	61161
AFTERMARKET PRODUCTS	1419308
AFTERMARKET PRODUCTS	21336
AFTERMARKET PRODUCTS	61198
AFTERMARKET PRODUCTS	61247
AFTERMARKET PRODUCTS	61401
AFTERMARKET PRODUCTS	624
AFTERMARKET PRODUCTS	71129
AFTERMARKET PRODUCTS	71130
AFTERMARKET PRODUCTS	740 190
AFTERMARKET PRODUCTS	740190
AFTERMARKET PRODUCTS	77 8768 2
AFTERMARKET PRODUCTS	77 8794 8
AFTERMARKET PRODUCTS	7787682
AFTERMARKET PRODUCTS	7787948
AFTERMARKET PRODUCTS	8037
AFTERMARKET PRODUCTS	C1336
AFTERMARKET PRODUCTS	CH1336
AFTERMARKET PRODUCTS	KM 1355
AFTERMARKET PRODUCTS	KM 1377
AFTERMARKET PRODUCTS	KM 1433
AFTERMARKET PRODUCTS	KM1355
AFTERMARKET PRODUCTS	KM1377
AFTERMARKET PRODUCTS	KM1433
AFTERMARKET PRODUCTS	MC116
AFTERMARKET PRODUCTS	MH1198
AFTERMARKET PRODUCTS	MC213
AFTERMARKET PRODUCTS	MH 1198
AFTERMARKET PRODUCTS	MH574
AFTERMARKET PRODUCTS	P21336
AFTERMARKET PRODUCTS	14 1930 8
ATLAS	MH 1198
ATLAS	MH1198
ATLAS	MC116
ATLAS CANADA	MH1198
ATLAS TIRES	MC116
AUTOZONEDAYCO	71129
BRAVO	C1336
CADNA ARMORMARK	81775
CADNA PRESTONE	81775
CARQUEST	21336
CARQUESTGATES	21336
CONTINENTAL ELITE	61161
CONTINENTAL ELITE	409
CONTINENTAL ELITE	273
CONTINENTAL ELITE	260
CONTINENTAL ELITE	61401
CONTINENTAL ELITE	61247
CONTINENTAL ELITE	61198
DAYCO PRIVATE LABEL	E71130
DAYCO PRIVATE LABEL	E71129
DAYCO PRODUCTS LLC	E71129
DAYCO PRODUCTS LLC	E71130
DAYCO PRODUCTS LLC	71129
DAYCO PRODUCTS LLC	71130
DURKEE	41198
DURKEE	41161
DURKEE	41401
DURKEE	41247
EPTON	MH574
FRESHSTART	273
GATES	CH1336
GATES	MH1336
GATES CANADA	CH1336
GATES CANADA	21336
GATES CHARTER	C1336
GATES MEXICO	21336
GENERAL MOTORS AU	15599362
GENERAL MOTORS AU	15563424
GENERAL MOTORS AU	14044103
GENERAL MOTORS AU	14035475
GENERAL MOTORS AU	14035474
GENERAL MOTORS AU	10120060
GENUINE GM PARTS CANADA	10120060
GENUINE GM PARTS CANADA	14035474
GENUINE GM PARTS CANADA	14035475
GENUINE GM PARTS CANADA	14044103
GENUINE GM PARTS CANADA	15563424
GENUINE GM PARTS CANADA	15599362
GOODYEAR TIRES	273
GOODYEAR TIRES	260
GOODYEAR TIRES	61161
GOODYEAR TIRES	409
GOODYEAR TIRES	61198
GOODYEAR TIRES	61247
GOODYEAR TIRES	61401
MASTER PRO CONTROL MODULES	C1336
MASTER PRO CONTROL MODULES	21336
MASTER PRO FUEL SYSTEMS	21336
MASTER PRO FUEL SYSTEMS	C1336
MASTERPRO	C1336
MASTERPRO	21336
MIGHTY	260
MIGHTY	273
MIGHTY ARCHIVE	273
MIGHTY ARCHIVE	260
MOTORCRAFT	KM 1355
MOTORCRAFT	KM1433
MOTORCRAFT	KM1377
MOTORCRAFT	KM1355
MOTORCRAFT	KM 1433
MOTORCRAFT	KM 1377
MOTORCRAFT BASE	KM 1377
MOTORCRAFT BASE	KM 1433
MOTORCRAFT BASE	KM1355
MOTORCRAFT BASE	KM1377
MOTORCRAFT BASE	KM1433
MOTORCRAFT BASE	KM 1355
NAPA	8037
NAPA CANADABELTS AND HOSE URA	8037
NAPABELTS and HOSE NBH	8037
OETECHNOLOGY SERIES	81775
OPTIMA BATTERY PRIVATE LABEL	1419308
PARTS MASTERCADNA	81775
PETRO CANADA	740190
PETRO CANADA	740 190
PRO 1	P21336
PRONTOCADNA	81775
ROADMAX	C1336
SEARS	23200
STANT	21336
TRUGRIP	2045
ULTRALAST	C1336
UNOCAL 76	624
WESTERN AUTO	7787948
WESTERN AUTO	7787682
WESTERN AUTO	77 8794 8
WESTERN AUTO	77 8768 2
