Cooling Engine

21281

GATES

Click Image for Larger View
(Images are representative only and may not reflect the actual product)

❮ ❯

1 / 1


Price:

List:

Shipping:

In Stock: 1

We request registration so we can make sure you receive the right parts
and to properly estimate shipping and handling.
Returns, defects and other issue can arise.
This allows us to handle issues with out much involvement from you.
We aim to be as thorough and speedius as possible.
If you have any questions you can contact us at 325-235-2420

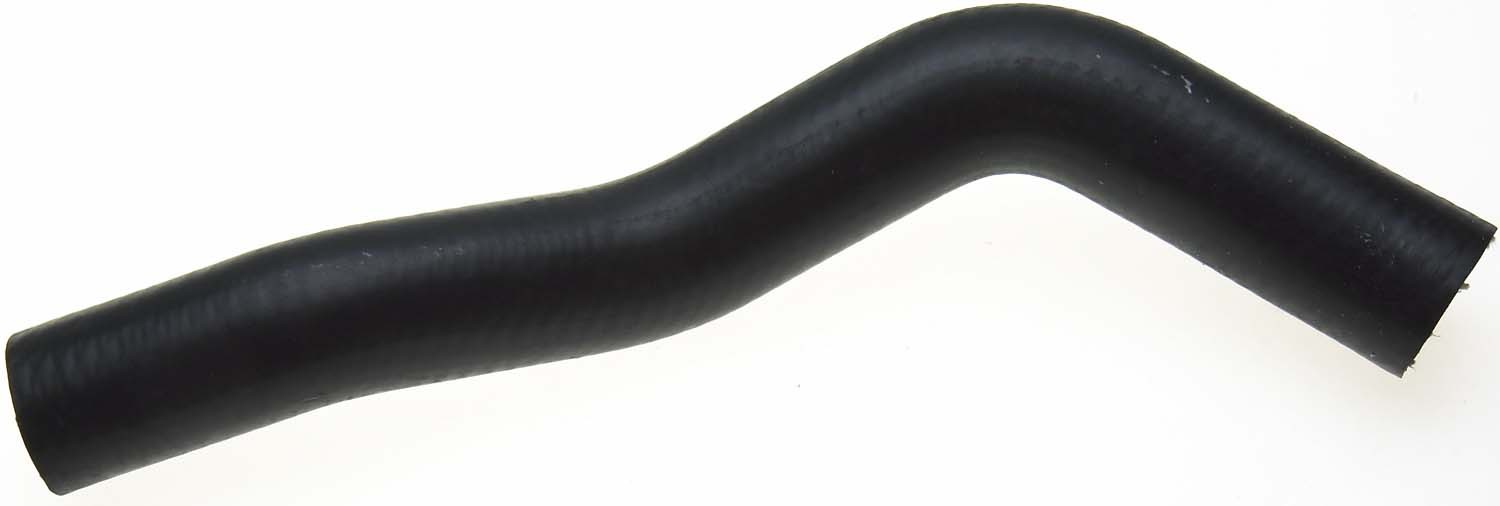

GATES Radiator Coolant Hose Molded

Additional Info: Gates Molded Coolant Hose is manufactured to fit specific applications. Similar to OEM specifications. Approved for marine applications. Recommend for upper, lower, by-pass, heater and other coolant hose applications. Heat and ozone resistant cover. Engineered to resist electrochemical degradation - the leading cause of hose failure. Re-engineered materials resist vacuum collapse. This reduces the need for internal springs in many applications. Meets SAE 20R4 and 20R3 Type EC Class D-1 and D-2 specifications. Temperature Rating: -40Deg F to 275Deg F (-40Deg C to 135Deg C) in coolant hose applications. Note: Gates recommends replacing standard worm drive and spring loaded clamps with Gates PowerGrip(R) SB Clamps each time a new coolant hose is installed. Gates - Driven By Possibility 1. Package Dimensions: 11.68 x 4.38 x 2.52 inches 2. UPC: 072053056617 3. Centerline Length: 14.6 IN 4. Centerline Length: 371 MM 5. Contains Spring: No 6. Inside Diameter 1: 1.25 IN 7. Inside Diameter 1: 32 MM 8. Modular Hose: No 9. Number of Branches: 0 10. Country of Origin: US

Specifications

Re-manufactured or New: New

From-To:		Make:	Model:	Sub:	Engine:	Notes:
1982	1982	Buick	Skyhawk	all	1.8L	Radiator Coolant Hose; 112cid L4 2BBL OHV VIN:G; PerVeh: 1;
1983	1984	Buick	Skyhawk	all	2.0L	Radiator Coolant Hose; 122cid L4 2BBL VIN:B; PerVeh: 1;
1983	1984	Buick	Skyhawk	all	2.0L	Radiator Coolant Hose; 122cid L4 FI TBI VIN:P; PerVeh: 1;
1985	1986	Buick	Skyhawk	all	2.0L	Radiator Coolant Hose; 122cid L4 VIN:P; PerVeh: 1;
1986	1986	Buick	Skylark	all	2.5L	Radiator Coolant Hose; 151cid L4 VIN:U; PerVeh: 1;
1987	1988	Buick	Skylark	all	2.5L	Radiator Coolant Hose; 151cid L4 VIN:U; PerVeh: 1;
1986	1988	Buick	Skylark	all	3.0L	Radiator Coolant Hose; 181cid V6 VIN:L; PerVeh: 1;
1986	1986	Buick	Somerset	all	2.5L	Radiator Coolant Hose; 151cid L4 VIN:U; PerVeh: 1;
1987	1987	Buick	Somerset	all	2.5L	Radiator Coolant Hose; 151cid L4 VIN:U; PerVeh: 1;
1986	1987	Buick	Somerset	all	3.0L	Radiator Coolant Hose; 181cid V6 VIN:L; PerVeh: 1;
1985	1985	Buick	Somerset Regal	all	2.5L	Radiator Coolant Hose; 151cid L4 VIN:U; PerVeh: 1;
1985	1985	Buick	Somerset Regal	all	3.0L	Radiator Coolant Hose; 181cid V6 VIN:L; PerVeh: 1;
1982	1982	Cadillac	Cimarron	all	1.8L	Radiator Coolant Hose; 112cid L4 VIN:G; PerVeh: 1;
1983	1986	Cadillac	Cimarron	all	2.0L	Radiator Coolant Hose; 122cid L4 VIN:P; PerVeh: 1;
1994	1995	Chevrolet	Beretta	all	3.1L	Radiator Coolant Hose; V6 VIN:M; PerVeh: 1;
1982	1982	Chevrolet	Cavalier	all	1.8L	Radiator Coolant Hose; 112cid L4 VIN:G; PerVeh: 1;
1983	1984	Chevrolet	Cavalier	all	2.0L	Radiator Coolant Hose; 122cid L4 2BBL VIN:B; PerVeh: 1;
1983	1984	Chevrolet	Cavalier	all	2.0L	Radiator Coolant Hose; 122cid L4 FI TBI VIN:P; PerVeh: 1;
1985	1986	Chevrolet	Cavalier	all	2.0L	Radiator Coolant Hose; 122cid L4 VIN:P; PerVeh: 1;
1994	1995	Chevrolet	Corsica	all	3.1L	Radiator Coolant Hose; V6 VIN:M; PerVeh: 1;
1996	1996	Chevrolet	Lumina APV	all	3.4L	Radiator Coolant Hose; V6 VIN:E; PerVeh: 1;
1993	1995	Dodge	Caravan	all	3.0L	Radiator Coolant Hose; V6 VIN:3; PerVeh: 1;
1993	1994	Dodge	Colt	all	1.5L	Radiator Coolant Hose; L4 VIN:A; PerVeh: 1;
1995	1995	Dodge	Colt	all	1.5L	Radiator Coolant Hose; L4 VIN:A; PerVeh: 1;
1993	1995	Dodge	Grand Caravan	all	3.0L	Radiator Coolant Hose; V6 VIN:3; PerVeh: 1;
1993	1996	Eagle	Summit	all	1.5L	Radiator Coolant Hose; L4 VIN:A; PerVeh: 1;
1981	1982	Isuzu	Pickup	all	1.8L	Radiator Coolant Hose; L4 VIN:N; PerVeh: 1;
1983	1987	Isuzu	Pickup	all	1.9L	Radiator Coolant Hose; L4 VIN:A; PerVeh: 1;
1993	1996	Mitsubishi	Mirage	all	1.5L	Radiator Coolant Hose; L4 VIN:A; PerVeh: 1;
1985	1986	Oldsmobile	Calais	all	2.5L	Radiator Coolant Hose; 151cid L4 VIN:U; PerVeh: 1;
1987	1987	Oldsmobile	Calais	all	2.5L	Radiator Coolant Hose; 151cid L4 VIN:U; PerVeh: 1;
1985	1987	Oldsmobile	Calais	all	3.0L	Radiator Coolant Hose; 181cid V6 VIN:L; PerVeh: 1;
1988	1988	Oldsmobile	Cutlass Calais	all	2.5L	Radiator Coolant Hose; 151cid L4 VIN:U; PerVeh: 1;
1988	1988	Oldsmobile	Cutlass Calais	all	3.0L	Radiator Coolant Hose; 181cid V6 VIN:L; PerVeh: 1;
1982	1982	Oldsmobile	Firenza	all	1.8L	Radiator Coolant Hose; 112cid L4 2BBL OHV VIN:G; PerVeh: 1;
1983	1984	Oldsmobile	Firenza	all	2.0L	Radiator Coolant Hose; 122cid L4 2BBL VIN:B; PerVeh: 1;
1983	1984	Oldsmobile	Firenza	all	2.0L	Radiator Coolant Hose; 122cid L4 FI TBI VIN:P; PerVeh: 1;
1985	1986	Oldsmobile	Firenza	all	2.0L	Radiator Coolant Hose; 122cid L4 VIN:P; PerVeh: 1;
1996	1996	Oldsmobile	Silhouette	all	3.4L	Radiator Coolant Hose; V6 VIN:E; PerVeh: 1;
1993	1994	Plymouth	Colt	all	1.5L	Radiator Coolant Hose; L4 VIN:A; PerVeh: 1;
1995	1995	Plymouth	Colt	all	1.5L	Radiator Coolant Hose; L4 VIN:A; PerVeh: 1;
1993	1995	Plymouth	Grand Voyager	all	3.0L	Radiator Coolant Hose; V6 VIN:3; PerVeh: 1;
1993	1995	Plymouth	Voyager	all	3.0L	Radiator Coolant Hose; V6 VIN:3; PerVeh: 1;
1985	1986	Pontiac	Grand Am	all	2.5L	Radiator Coolant Hose; 151cid L4 VIN:U; PerVeh: 1;
1987	1988	Pontiac	Grand Am	all	2.5L	Radiator Coolant Hose; 151cid L4 VIN:U; PerVeh: 1;
1985	1987	Pontiac	Grand Am	all	3.0L	Radiator Coolant Hose; 181cid V6 VIN:L; PerVeh: 1;
1982	1982	Pontiac	J2000	all	1.8L	Radiator Coolant Hose; 112cid L4 2BBL OHV VIN:G; PerVeh: 1;
1983	1983	Pontiac	J2000	all	2.0L	Radiator Coolant Hose; 122cid L4 2BBL VIN:B; PerVeh: 1;
1983	1983	Pontiac	J2000	all	2.0L	Radiator Coolant Hose; 122cid L4 FI TBI VIN:P; PerVeh: 1;
1984	1984	Pontiac	J2000 Sunbird	all	2.0L	Radiator Coolant Hose; 122cid L4 VIN:P; PerVeh: 1;
1986	1986	Pontiac	Sunbird	all	2.0L	Radiator Coolant Hose; 122cid L4 VIN:P; PerVeh: 1;
1996	1996	Pontiac	Trans Sport	all	3.4L	Radiator Coolant Hose; V6 VIN:E; PerVeh: 1;

Information
GA PF004-13
Home
Home
Resources
Resources
Home

CHRYSLER OE	4546533
CHRYSLER OE	MB660610
CHRYSLER OE	4546534
GENERAL MOTORS CORP	25518849
GENERAL MOTORS CORP	25519576
GENERAL MOTORS CORP	22594530
GENERAL MOTORS CORP	22645252
GENERAL MOTORS CORP	22531941
GENERAL MOTORS CORP	10030010
GENERAL MOTORS CORP	14020785
GENERAL MOTORS CORP	10263256
GENERAL MOTORS CORP	10037309
GENERAL MOTORS OE	10037309
GENERAL MOTORS OE	10263256
GENERAL MOTORS OE	14020785
GENERAL MOTORS OE	10030010
GENERAL MOTORS OE	22531941
GENERAL MOTORS OE	22645252
GENERAL MOTORS OE	22594530
GENERAL MOTORS OE	25519576
GENERAL MOTORS OE	25518849
ISUZU OE	8941399823
ISUZU OE	894292920
ISUZU OE	8942942920
OEM	8942942920
OEM	894292920
OEM	MB660610
OEM	8941399823
OEM	4546534
OEM	25519576
OEM	25518849
OEM	4546533
OEM	22531941
OEM	22645252
OEM	22594530
OEM	10263256
OEM	14020785
OEM	10037309
OEM	10030010
ACDELCO	10030010
ACDELCO	10037309
ACDELCO	10263256
ACDELCO	14020785
ACDELCO	22531941
ACDELCO	22594530
ACDELCO	22645252
ACDELCO	25518849
ACDELCO	25519576
ACDELCO NON GM	22148M
ACDELCO PROFESSIONAL	22148M
ACDELCO PROFESSIONAL CANADA	22148M
ACDELCO US	22148M
AFTERMARKET PRODUCTS	22148M
AFTERMARKET PRODUCTS	21281
AFTERMARKET PRODUCTS	2090
AFTERMARKET PRODUCTS	256
AFTERMARKET PRODUCTS	331
AFTERMARKET PRODUCTS	403
AFTERMARKET PRODUCTS	41184
AFTERMARKET PRODUCTS	41348
AFTERMARKET PRODUCTS	41355
AFTERMARKET PRODUCTS	14 1919 8
AFTERMARKET PRODUCTS	1419198
AFTERMARKET PRODUCTS	142 5946
AFTERMARKET PRODUCTS	1425946
AFTERMARKET PRODUCTS	61184
AFTERMARKET PRODUCTS	61348
AFTERMARKET PRODUCTS	61355
AFTERMARKET PRODUCTS	614
AFTERMARKET PRODUCTS	62508
AFTERMARKET PRODUCTS	71630
AFTERMARKET PRODUCTS	740 186
AFTERMARKET PRODUCTS	740186
AFTERMARKET PRODUCTS	77 8760 9
AFTERMARKET PRODUCTS	77 8831 8
AFTERMARKET PRODUCTS	77 8832 6
AFTERMARKET PRODUCTS	7787609
AFTERMARKET PRODUCTS	7788318
AFTERMARKET PRODUCTS	7992
AFTERMARKET PRODUCTS	C1281
AFTERMARKET PRODUCTS	7788326
AFTERMARKET PRODUCTS	CH1281
AFTERMARKET PRODUCTS	KM 1345
AFTERMARKET PRODUCTS	KM1345
AFTERMARKET PRODUCTS	L342092
AFTERMARKET PRODUCTS	L34 2092
AFTERMARKET PRODUCTS	MH 1184
AFTERMARKET PRODUCTS	MH1184
AFTERMARKET PRODUCTS	P21281
AFTERMARKET PRODUCTS	MH561
ATLAS	MH1184
ATLAS	MH 1184
ATLAS CANADA	MH1184
AUTOZONEDAYCO	71630
BECKARNLEY	1425946
BECKARNLEY	142 5946
BRAVO	C1281
CARQUEST	21281
CARQUESTGATES	21281
CONTINENTAL ELITE	403
CONTINENTAL ELITE	331
CONTINENTAL ELITE	256
CONTINENTAL ELITE	62508
CONTINENTAL ELITE	61355
CONTINENTAL ELITE	61348
CONTINENTAL ELITE	61184
DAYCO PRIVATE LABEL	C71630
DAYCO PRODUCTS LLC	C71630
DAYCO PRODUCTS LLC	71630
DURKEE	41355
DURKEE	41348
DURKEE	41184
EPTON	MH561
FRESHSTART	331
FRESHSTART	403
FRESHSTART	256
GATES	MH1281
GATES	CH1281
GATES CANADA	CH1281
GATES CANADA	21281
GATES CHARTER	C1281
GATES MEXICO	21281
GENERAL MOTORS AU	22531941
GENERAL MOTORS AU	22594530
GENERAL MOTORS AU	22645252
GENERAL MOTORS AU	25519576
GENERAL MOTORS AU	25518849
GENERAL MOTORS AU	14020785
GENERAL MOTORS AU	10263256
GENERAL MOTORS AU	10037309
GENERAL MOTORS AU	10030010
GENUINE GM PARTS CANADA	10030010
GENUINE GM PARTS CANADA	10037309
GENUINE GM PARTS CANADA	10263256
GENUINE GM PARTS CANADA	14020785
GENUINE GM PARTS CANADA	25518849
GENUINE GM PARTS CANADA	25519576
GENUINE GM PARTS CANADA	22594530
GENUINE GM PARTS CANADA	22645252
GENUINE GM PARTS CANADA	22531941
GOODYEAR TIRES	256
GOODYEAR TIRES	403
GOODYEAR TIRES	331
GOODYEAR TIRES	62508
GOODYEAR TIRES	61184
GOODYEAR TIRES	61348
GOODYEAR TIRES	61355
LAZORLITE	L34 2092
LAZORLITE	L342092
MASTER PRO CONTROL MODULES	C1281
MASTER PRO CONTROL MODULES	21281
MASTER PRO FUEL SYSTEMS	21281
MASTER PRO FUEL SYSTEMS	C1281
MASTERPRO	C1281
MASTERPRO	21281
MIGHTY	331
MIGHTY	256
MIGHTY ARCHIVE	256
MIGHTY ARCHIVE	331
MOTORCRAFT	KM1345
MOTORCRAFT	KM 1345
MOTORCRAFT BASE	KM 1345
MOTORCRAFT BASE	KM1345
NAPA	7992
NAPA CANADABELTS AND HOSE URA	7992
NAPABELTS and HOSE NBH	7992
OPTIMA BATTERY PRIVATE LABEL	1419198
PETRO CANADA	740186
PETRO CANADA	740 186
PRO 1	P21281
ROADMAX	C1281
STANT	21281
TRUGRIP	2090
ULTRALAST	C1281
UNOCAL 76	614
WESTERN AUTO	77 8760 9
WESTERN AUTO	77 8832 6
WESTERN AUTO	77 8831 8
WESTERN AUTO	7788318
WESTERN AUTO	7787609
WESTERN AUTO	7788326
WORLDPAC	G2000 439735 GAT
WORLDPAC	G2000439735GAT
