Cooling Engine

21234

GATES

Click Image for Larger View
(Images are representative only and may not reflect the actual product)

❮ ❯

1 / 1


Price:

List:

Shipping:

In Stock: 7

We request registration so we can make sure you receive the right parts
and to properly estimate shipping and handling.
Returns, defects and other issue can arise.
This allows us to handle issues with out much involvement from you.
We aim to be as thorough and speedius as possible.
If you have any questions you can contact us at 325-235-2420

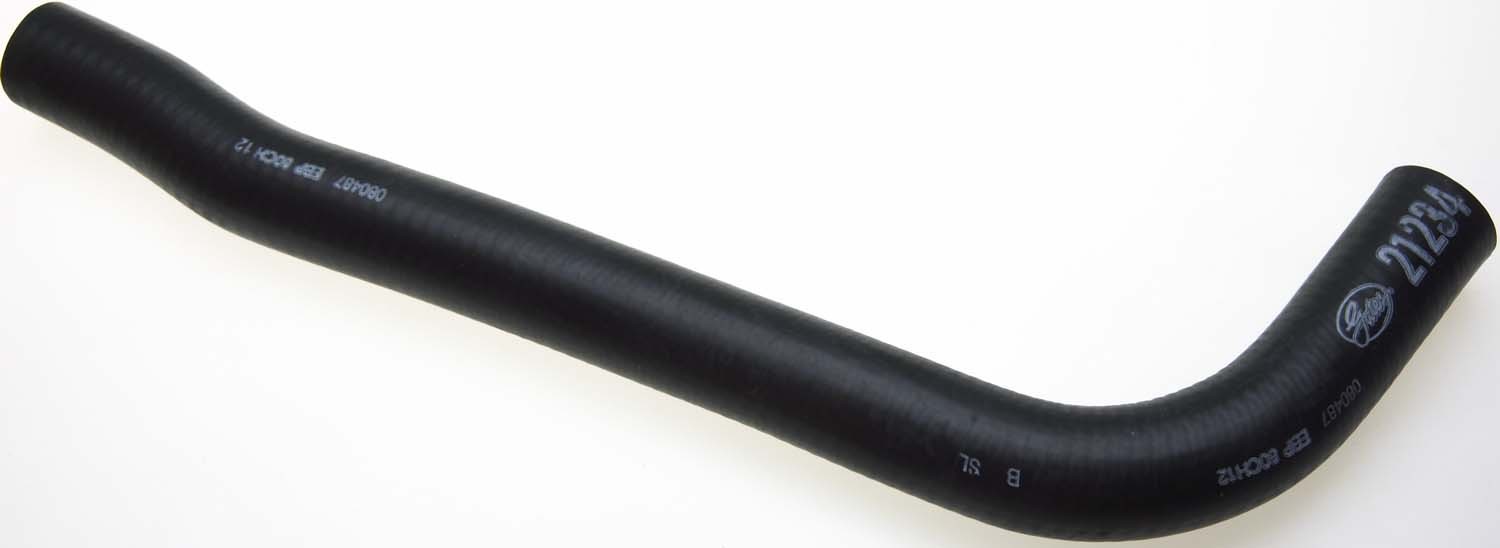

GATES Radiator Coolant Hose Molded

Additional Info: Gates Molded Coolant Hose is manufactured to fit specific applications. Similar to OEM specifications. Approved for marine applications. Recommend for upper, lower, by-pass, heater and other coolant hose applications. Heat and ozone resistant cover. Engineered to resist electrochemical degradation - the leading cause of hose failure. Re-engineered materials resist vacuum collapse. This reduces the need for internal springs in many applications. Meets SAE 20R4 and 20R3 Type EC Class D-1 and D-2 specifications. Temperature Rating: -40Deg F to 275Deg F (-40Deg C to 135Deg C) in coolant hose applications. Note: Gates recommends replacing standard worm drive and spring loaded clamps with Gates PowerGrip(R) SB Clamps each time a new coolant hose is installed. Gates - Driven By Possibility 1. Package Dimensions: 16.48 x 6.18 x 2.24 inches 2. UPC: 072053056198 3. Centerline Length: 20.6 IN 4. Centerline Length: 523 MM 5. Contains Spring: No 6. Inside Diameter 1: 1.12 IN 7. Inside Diameter 1: 28 MM 8. Modular Hose: No 9. Number of Branches: 0 10. Country of Origin: US

Specifications

Re-manufactured or New: New

From-To:		Make:	Model:	Sub:	Engine:	Notes:
1994	1997	Mazda	Miata	all	1.8L	Radiator Coolant Hose; L4; PerVeh: 1;
1980	1980	Subaru	Brat	all	1.6L	Radiator Coolant Hose; H4; PerVeh: 1;
1980	1980	Subaru	Brat	all	1.8L	Radiator Coolant Hose; H4; PerVeh: 1;
1981	1982	Subaru	Brat	all	1.8L	Radiator Coolant Hose; H4 1BBL VIN:5; PerVeh: 1;
1981	1984	Subaru	Brat	all	1.8L	Radiator Coolant Hose; H4 2BBL VIN:5; PerVeh: 1;
1985	1987	Subaru	Brat	all	1.8L	Radiator Coolant Hose; H4 VIN:5; PerVeh: 1;
1980	1980	Subaru	DL	all	1.6L	Radiator Coolant Hose; H4; PerVeh: 1;
1981	1984	Subaru	DL	all	1.6L	Radiator Coolant Hose; H4 VIN:2; PerVeh: 1;
1980	1980	Subaru	DL	all	1.8L	Radiator Coolant Hose; H4; PerVeh: 1;
1983	1983	Subaru	DL	all	1.8L	Radiator Coolant Hose; H4 1BBL VIN:4; PerVeh: 1;
1981	1982	Subaru	DL	all	1.8L	Radiator Coolant Hose; H4 1BBL VIN:5; PerVeh: 1;
1981	1983	Subaru	DL	all	1.8L	Radiator Coolant Hose; H4 2BBL VIN:4,5; PerVeh: 1;
1984	1984	Subaru	DL	all	1.8L	Radiator Coolant Hose; H4 VIN:4,5; PerVeh: 1;
1980	1980	Subaru	GL	all	1.6L	Radiator Coolant Hose; H4; PerVeh: 1;
1986	1987	Subaru	GL	all	1.6L	Radiator Coolant Hose; H4 VIN:2; PerVeh: 1;
1980	1980	Subaru	GL	all	1.8L	Radiator Coolant Hose; H4; PerVeh: 1;
1983	1984	Subaru	GL	all	1.8L	Radiator Coolant Hose; H4 1BBL VIN:4; PerVeh: 1;
1981	1982	Subaru	GL	all	1.8L	Radiator Coolant Hose; H4 1BBL VIN:5; PerVeh: 1;
1985	1987	Subaru	GL	all	1.8L	Radiator Coolant Hose; H4 2BBL OHV VIN:4,5; PerVeh: 1;
1985	1986	Subaru	GL	all	1.8L	Radiator Coolant Hose; H4 2BBL SOHC VIN:4,5; PerVeh: 1;
1987	1987	Subaru	GL	all	1.8L	Radiator Coolant Hose; H4 2BBL SOHC VIN:5; PerVeh: 1;
1981	1984	Subaru	GL	all	1.8L	Radiator Coolant Hose; H4 2BBL VIN:4,5; PerVeh: 1;
1988	1989	Subaru	GL	all	1.8L	Radiator Coolant Hose; H4 2BBL VIN:4,5; PerVeh: 1;
1986	1987	Subaru	GL	all	1.8L	Radiator Coolant Hose; H4 FI TBI SOHC VIN:4,5; PerVeh: 1;
1988	1989	Subaru	GL	all	1.8L	Radiator Coolant Hose; H4 FI TBI VIN:4,5; PerVeh: 1;
1980	1980	Subaru	GLF	all	1.6L	Radiator Coolant Hose; H4; PerVeh: 1;
1980	1980	Subaru	GLF	all	1.8L	Radiator Coolant Hose; H4; PerVeh: 1;
1981	1982	Subaru	GLF	all	1.8L	Radiator Coolant Hose; H4 VIN:4; PerVeh: 1;
1980	1980	Subaru	Standard	all	1.6L	Radiator Coolant Hose; H4; PerVeh: 1;
1981	1987	Subaru	Standard	all	1.6L	Radiator Coolant Hose; H4 VIN:2; PerVeh: 1;
1981	1982	Subaru	Standard	all	1.8L	Radiator Coolant Hose; H4 1BBL VIN:5; PerVeh: 1;
1981	1982	Subaru	Standard	all	1.8L	Radiator Coolant Hose; H4 2BBL VIN:5; PerVeh: 1;
1987	1987	Subaru	Standard	all	1.8L	Radiator Coolant Hose; H4 VIN:5; PerVeh: 1;
1987	1987	Volkswagen	Fox	all	1.8L	Radiator Coolant Hose; L4 VIN:A; PerVeh: 1;
1988	1989	Volkswagen	Fox	all	1.8L	Radiator Coolant Hose; L4 VIN:A; PerVeh: 1;
1990	1990	Volkswagen	Fox	all	1.8L	Radiator Coolant Hose; L4 VIN:A,B; PerVeh: 1;
1991	1993	Volkswagen	Fox	all	1.8L	Radiator Coolant Hose; L4 VIN:A,B; PerVeh: 1;

Information
GA PF004-13
Home
Home
Resources
Resources
Home

CATERPILLAR	2N0192
ISUZU OE	1411018
MAZDA OE	BPE815186
MAZDA OE	B61P15184
OEM	B61P15184
OEM	BPE815186
OEM	745161130
OEM	645077702
OEM	745161040
OEM	2N0192
OEM	3051211012
OEM	5031521
OEM	3051211013
OEM	1411018
SUBARU OE	745161040
SUBARU OE	645077702
SUBARU OE	745161130
VOLKSWAGEN OE	3051211013
VOLKSWAGEN OE	3051211012
VOLKSWAGEN OE	305 121 101 3
ACDELCO NON GM	24118L
ACDELCO PROFESSIONAL	24118L
ACDELCO PROFESSIONAL CANADA	24118L
ACDELCO US	24118L
AFTERMARKET PRODUCTS	24118L
AFTERMARKET PRODUCTS	1425808
AFTERMARKET PRODUCTS	1425818
AFTERMARKET PRODUCTS	21234
AFTERMARKET PRODUCTS	54 04286
AFTERMARKET PRODUCTS	54 04302
AFTERMARKET PRODUCTS	54 05621
AFTERMARKET PRODUCTS	5404286
AFTERMARKET PRODUCTS	5404302
AFTERMARKET PRODUCTS	60939
AFTERMARKET PRODUCTS	71407
AFTERMARKET PRODUCTS	5405621
AFTERMARKET PRODUCTS	7945
AFTERMARKET PRODUCTS	C1234
AFTERMARKET PRODUCTS	CH1234
AFTERMARKET PRODUCTS	KM 2127
AFTERMARKET PRODUCTS	KM 939
AFTERMARKET PRODUCTS	KM2127
AFTERMARKET PRODUCTS	KM939
AFTERMARKET PRODUCTS	L34 2750
AFTERMARKET PRODUCTS	L342750
AFTERMARKET PRODUCTS	MH 4234
AFTERMARKET PRODUCTS	MR146
AFTERMARKET PRODUCTS	MH4234
AFTERMARKET PRODUCTS	14 1851 6
AFTERMARKET PRODUCTS	1418516
AFTERMARKET PRODUCTS	142 5808
AFTERMARKET PRODUCTS	142 5818
ATLAS	MH4234
ATLAS	MH 4234
ATLAS CANADA	MH4234
BECKARNLEY	1425818
BECKARNLEY	1425808
BECKARNLEY	142 5818
BECKARNLEY	142 5808
CADNA ARMORMARK	82970
CADNA PRESTONE	82970
CARQUEST	21234
CARQUESTGATES	21234
CONTINENTAL ELITE	60939
DAYCO PRIVATE LABEL	E71407
DAYCO PRODUCTS LLC	E71407
DAYCO PRODUCTS LLC	71407
DURKEE	MR146
FRESHSTART	60939
GATES	CH1234
GATES	MH1234
GATES CANADA	CH1234
GATES CANADA	21234
GOODYEAR TIRES	60939
IMC	117 54346 767
IMC	11754346
IMC	11754346767
IMC	117 54346
IMC MFG NUMBER CATALOG	305 121 101 3
IMC MFG NUMBER CATALOG	3051211013
INTERAMERICAN MOTOR CORPORATION	3051211013
INTERAMERICAN MOTOR CORPORATION	305 121 101 3
INTERAMERICAN MOTOR CORPORATION	117 54346
INTERAMERICAN MOTOR CORPORATION	11754346
LAZORLITE	L342750
LAZORLITE	L34 2750
MOTORCRAFT	KM939
MOTORCRAFT	KM2127
MOTORCRAFT	KM 939
MOTORCRAFT	KM 2127
MOTORCRAFT BASE	KM 2127
MOTORCRAFT BASE	KM 939
MOTORCRAFT BASE	KM2127
MOTORCRAFT BASE	KM939
NAPA	7945
NAPA CANADABELTS AND HOSE URA	7945
NAPABELTS and HOSE NBH	7945
OETECHNOLOGY SERIES	82970
ONAN	5031521
OPTIMA BATTERY PRIVATE LABEL	1418516
PARTS MASTERCADNA	82970
PRONTOCADNA	82970
STANT	21234
ULTRALAST	C1234
VERA	5405621
VERA	54 04286
VERA	5404302
VERA	5404286
VERA	54 05621
VERA	54 04302
WD EXPRESS	11754346767
WD EXPRESS	117 54346 767
WORLDPAC	G2000 21663 GAT
WORLDPAC	G200021663GAT
