Cooling Engine

21140

GATES

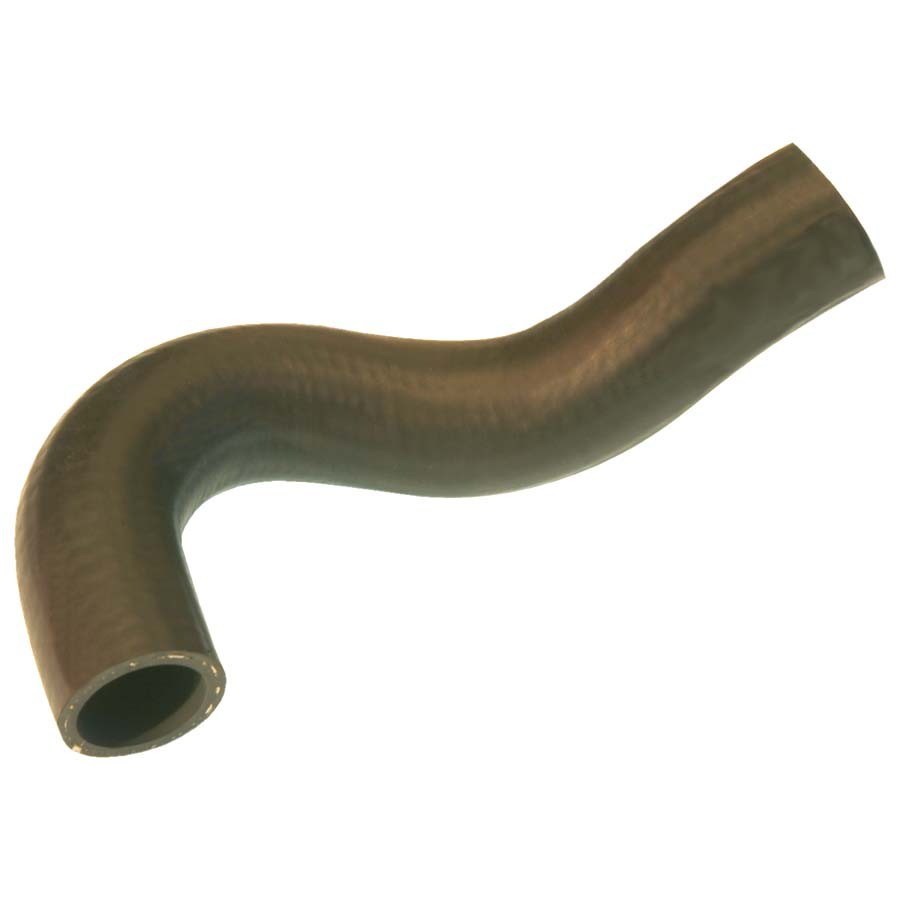

Click Image for Larger View
(Images are representative only and may not reflect the actual product)

❮ ❯

1 / 1


Price:

List:

Shipping:

In Stock: 1

We request registration so we can make sure you receive the right parts
and to properly estimate shipping and handling.
Returns, defects and other issue can arise.
This allows us to handle issues with out much involvement from you.
We aim to be as thorough and speedius as possible.
If you have any questions you can contact us at 325-235-2420

GATES Radiator Coolant Hose Molded

Additional Info: Gates Molded Coolant Hose is manufactured to fit specific applications. Similar to OEM specifications. Approved for marine applications. Recommend for upper, lower, by-pass, heater and other coolant hose applications. Heat and ozone resistant cover. Engineered to resist electrochemical degradation - the leading cause of hose failure. Re-engineered materials resist vacuum collapse. This reduces the need for internal springs in many applications. Meets SAE 20R4 and 20R3 Type EC Class D-1 and D-2 specifications. Temperature Rating: -40Deg F to 275Deg F (-40Deg C to 135Deg C) in coolant hose applications. Note: Gates recommends replacing standard worm drive and spring loaded clamps with Gates PowerGrip(R) SB Clamps each time a new coolant hose is installed. Gates - Driven By Possibility 1. Package Dimensions: 8.88 x 3.33 x 2.44 inches 2. UPC: 072053055351 3. Centerline Length: 11.1 IN 4. Centerline Length: 282 MM 5. Contains Spring: No 6. Inside Diameter 1: 1.22 IN 7. Inside Diameter 1: 31 MM 8. Inside Diameter 2: 1.28 IN 9. Inside Diameter 2: 33 MM 10. Modular Hose: No 11. Number of Branches: 0 12. Country of Origin: US

Specifications

Re-manufactured or New: New

From-To:		Make:	Model:	Sub:	Engine:	Notes:
1989	1989	Audi	100	all	2.3L	Radiator Coolant Hose; L5 VIN:B; PerVeh: 1;
1990	1991	Audi	100	all	2.3L	Radiator Coolant Hose; L5 VIN:C; PerVeh: 1;
1989	1989	Audi	100 Quattro	all	2.3L	Radiator Coolant Hose; L5 VIN:B; PerVeh: 1;
1990	1991	Audi	100 Quattro	all	2.3L	Radiator Coolant Hose; L5 VIN:C; PerVeh: 1;
1978	1983	Audi	5000	all	2.2L	Radiator Coolant Hose; L5; PerVeh: 1;
1980	1980	Audi	5000	all	2.2L	Radiator Coolant Hose; L5 Turbo; PerVeh: 1;
1981	1983	Audi	5000	all	2.2L	Radiator Coolant Hose; L5 Turbo VIN:C; PerVeh: 1;
1984	1984	Audi	5000	all	2.2L	Radiator Coolant Hose; L5 Turbo VIN:C; PerVeh: 1;
1986	1986	Audi	5000	all	2.2L	Radiator Coolant Hose; L5 Turbo VIN:D; PerVeh: 1;
1988	1988	Audi	5000	all	2.2L	Radiator Coolant Hose; L5 Turbo VIN:D; PerVeh: 1;
1987	1987	Audi	5000	all	2.2L	Radiator Coolant Hose; L5 Turbo VIN:D,E; PerVeh: 1;
1984	1984	Audi	5000	all	2.2L	Radiator Coolant Hose; L5 VIN:A,B; PerVeh: 1;
1985	1985	Audi	5000	all	2.2L	Radiator Coolant Hose; L5 VIN:B; PerVeh: 1;
1986	1987	Audi	5000	all	2.2L	Radiator Coolant Hose; L5 VIN:B; PerVeh: 1;
1987	1988	Audi	5000	all	2.3L	Radiator Coolant Hose; L5 VIN:B,C; PerVeh: 1;
1987	1988	Audi	5000 Quattro	all	2.2L	Radiator Coolant Hose; L5 Turbo VIN:D,E; PerVeh: 1;
1986	1986	Audi	5000 Quattro	all	2.2L	Radiator Coolant Hose; L5 VIN:D,E; PerVeh: 1;
1987	1988	Audi	5000 Quattro	all	2.3L	Radiator Coolant Hose; L5 VIN:B,C; PerVeh: 1;
1993	1994	Chevrolet	Corvette	all	5.7L	Radiator Coolant Hose; V8 OHV VIN:P; PerVeh: 1;
1992	1992	Chevrolet	Corvette	all	5.7L	Radiator Coolant Hose; V8 OHV VIN:P, + Others; PerVeh: 1;
1993	1994	Chevrolet	Corvette	all	5.7L	Radiator Coolant Hose; V8 VIN:P; PerVeh: 1;
1992	1992	Chevrolet	Corvette	all	5.7L	Radiator Coolant Hose; V8 VIN:P, + Others; PerVeh: 1;

Information
GA PF004-13
Home
Home
Resources
Resources
Home

GENERAL MOTORS CORP	10258277
GENERAL MOTORS CORP	10157957
GENERAL MOTORS OE	10157957
GENERAL MOTORS OE	10258277
OEM	10258277
OEM	10157957
OEM	035121101A
OEM	035121101E
OEM	447121101A
OEM	447121101
VOLKSWAGEN OE	447121101
VOLKSWAGEN OE	447121101A
VOLKSWAGEN OE	035121101E
VOLKSWAGEN OE	035121101A
ACDELCO	10157957
ACDELCO	10258277
ACDELCO NON GM	24093L
ACDELCO PROFESSIONAL	24093L
ACDELCO PROFESSIONAL CANADA	24093L
ACDELCO US	24093L
AFTERMARKET PRODUCTS	24093L
AFTERMARKET PRODUCTS	1425560
AFTERMARKET PRODUCTS	1426061
AFTERMARKET PRODUCTS	21140
AFTERMARKET PRODUCTS	54 04740
AFTERMARKET PRODUCTS	5404740
AFTERMARKET PRODUCTS	7845
AFTERMARKET PRODUCTS	70980
AFTERMARKET PRODUCTS	890
AFTERMARKET PRODUCTS	980
AFTERMARKET PRODUCTS	C1140
AFTERMARKET PRODUCTS	CH1140
AFTERMARKET PRODUCTS	KM 3158
AFTERMARKET PRODUCTS	KM3158
AFTERMARKET PRODUCTS	MH 4140
AFTERMARKET PRODUCTS	MH4140
AFTERMARKET PRODUCTS	U34 2360
AFTERMARKET PRODUCTS	U34 2459
AFTERMARKET PRODUCTS	U342459
AFTERMARKET PRODUCTS	U342360
AFTERMARKET PRODUCTS	14 1758 0
AFTERMARKET PRODUCTS	1417580
AFTERMARKET PRODUCTS	142 5560
AFTERMARKET PRODUCTS	142 6061
ATLAS	MH4140
ATLAS	MH 4140
ATLAS CANADA	MH4140
AUTOZONEDAYCO	70980
BECKARNLEY	1426061
BECKARNLEY	1425560
BECKARNLEY	142 6061
BECKARNLEY	142 5560
CADNA ARMORMARK	81370
CADNA PRESTONE	81370
CARQUEST	21140
CARQUESTGATES	21140
CONTINENTAL ELITE	66058
DAYCO PRIVATE LABEL	890
DAYCO PRIVATE LABEL	980
DAYCO PRIVATE LABEL	B70980
DAYCO PRODUCTS LLC	B70980
DAYCO PRODUCTS LLC	980
DAYCO PRODUCTS LLC	890
DAYCO PRODUCTS LLC	70980
GATES	CH1140
GATES	MH1140
GATES CANADA	CH1140
GATES CANADA	21140
GATES MEXICO	21140
GENERAL MOTORS AU	10258277
GENERAL MOTORS AU	10157957
GENUINE GM PARTS CANADA	10157957
GENUINE GM PARTS CANADA	10258277
GOODYEAR TIRES	66058
IMC	117 54244
IMC	117 54244 500
IMC	11754244
IMC	11754244500
IMC MFG NUMBER CATALOG	119 121 0076
IMC MFG NUMBER CATALOG	1191210076
INTERAMERICAN MOTOR CORPORATION	11754244
INTERAMERICAN MOTOR CORPORATION	117 54244
INTERAMERICAN MOTOR CORPORATION	447 121 101 AMY
INTERAMERICAN MOTOR CORPORATION	447121101AMY
LAZORLITE	U34 2459
LAZORLITE	U34 2360
LAZORLITE	U342360
LAZORLITE	U342459
MOTORCRAFT	KM3158
MOTORCRAFT	KM 3158
MOTORCRAFT BASE	KM 3158
MOTORCRAFT BASE	KM3158
NAPA	7845
NAPA CANADABELTS AND HOSE URA	7845
NAPABELTS and HOSE NBH	7845
NAPANGK WIRES NGW	7845
OETECHNOLOGY SERIES	81370
OPTIMA BATTERY PRIVATE LABEL	1417580
PARTS MASTERCADNA	81370
PRONTOCADNA	81370
STANT	21140
ULTRALAST	C1140
VERA	5404740
VERA	54 04740
WD EXPRESS	117 54244 500
WD EXPRESS	11754244500
