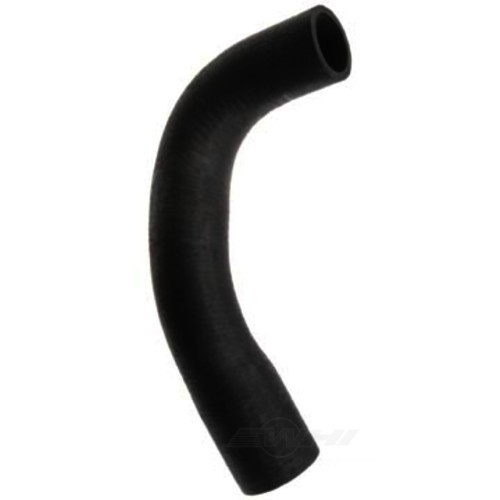

Additional Info: Molded Radiator and By-Pass Hose with knitted reinforcement and all synthetic EPDM rubber construction provides the high strength and resistance to oil, mud, salt, road debris, ozone, coolants, and temperature variations of -40DegF (-40DegC) to +257DegF (+125DegC) that are required for OEM hose replacements. The inner base tube is reinforced with knitted rayon for maximum strength and burst resistance for the life of the hose. In addition to meeting SAE J20R4, Class D-1 requirements, this hose is now designed to meet Type EC electro-chemical requirements as specified in SAE J1684; which prevents inner tube deterioration caused by the build up of static electric charges. 1. Package Dimensions: 10.00 x 5.00 x 1.75 inches 2. UPC: 038244136070 3. Color: Black 4. Contains Heat Shield: 3J 5. Contains Heat Shield: N 6. Contains Heat Shield: Radiator Hose - Lower 7. Contains Protective Sleeve: 1064 8. Contains Protective Sleeve: JBR 9. Contains Protective Sleeve: N 10. End 1 Inside Diameter: 1 1/4 in 11. End 1 Inside Diameter: N in 12. End 1 Inside Diameter: RADIATOR HOSE in 13. End 1 Outside Diameter: 1.750 in 14. End 2 Inside Diameter: 1 1/2 in 15. End 2 Inside Diameter: EA in 16. End 2 Inside Diameter: N in 17. End 2 Inside Diameter: The inner base tube is reinforced with knitted rayon for maximum strength and burst resistance for the life of the hose in 18. End 2 Outside Diameter: 10.688 in 19. End 3 Inside Diameter: .4350 in 20. End 3 Inside Diameter: Meets Type EC electro-chemical requirements as specified in SAE J1684; which eliminates premature deterioration of the inner tube caused by the build up of static electric charges in 21. End 3 Inside Diameter: N in 22. End 3 Outside Diameter: A in 23. End 4 Inside Diameter: N in 24. End 4 Inside Diameter: Y in 25. End 4 Outside Diameter: 50038244136075 in 26. End 5 Inside Diameter: B0 in 27. End 5 Inside Diameter: N in 28. End 5 Outside Diameter: 10 in 29. Hose Type: Dual I.D. Hose 30. Material: APJ53 31. Material: CDA 32. Material: EPDM 33. SAE Specification: SAE J20R4 Class D-1, SAE J1684 Type EC 34. Trunk Height: 10 in 35. Trunk Height: 38244136070 in 36. Trunk Height: Y in 37. Country of Origin: MX
