Cooling Engine

20476

GATES

Click Image for Larger View
(Images are representative only and may not reflect the actual product)

❮ ❯

1 / 2


2 / 2


Price:

List:

Shipping:

In Stock: 2

We request registration so we can make sure you receive the right parts
and to properly estimate shipping and handling.
Returns, defects and other issue can arise.
This allows us to handle issues with out much involvement from you.
We aim to be as thorough and speedius as possible.
If you have any questions you can contact us at 325-235-2420

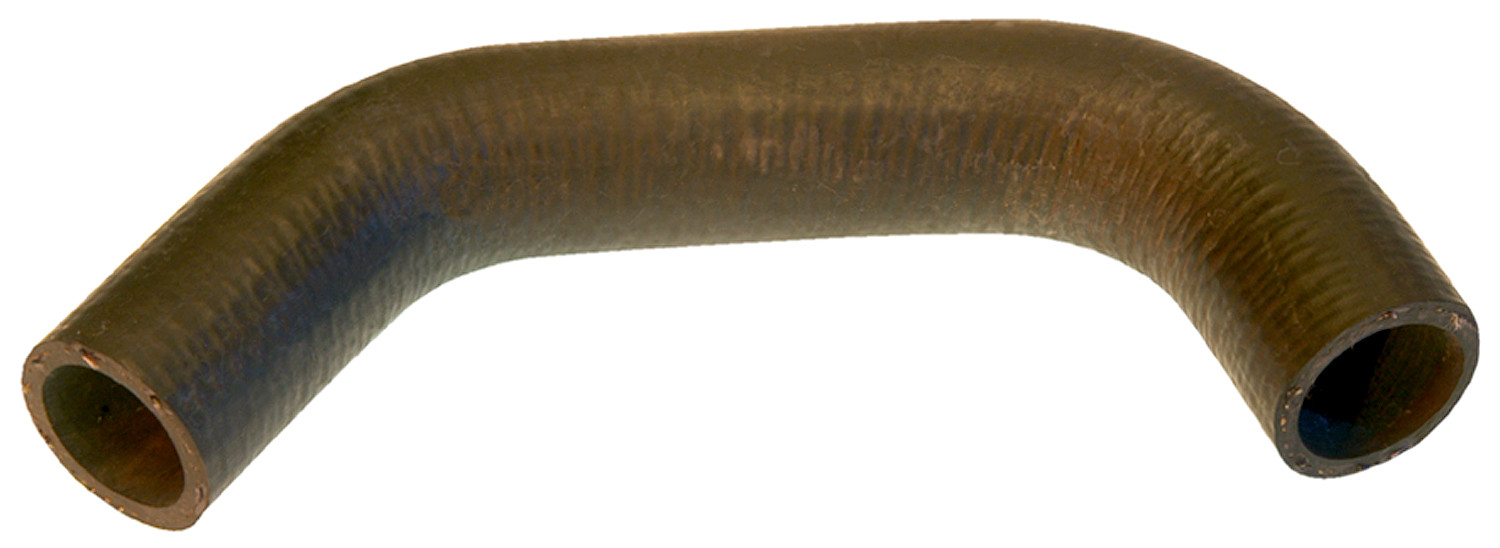

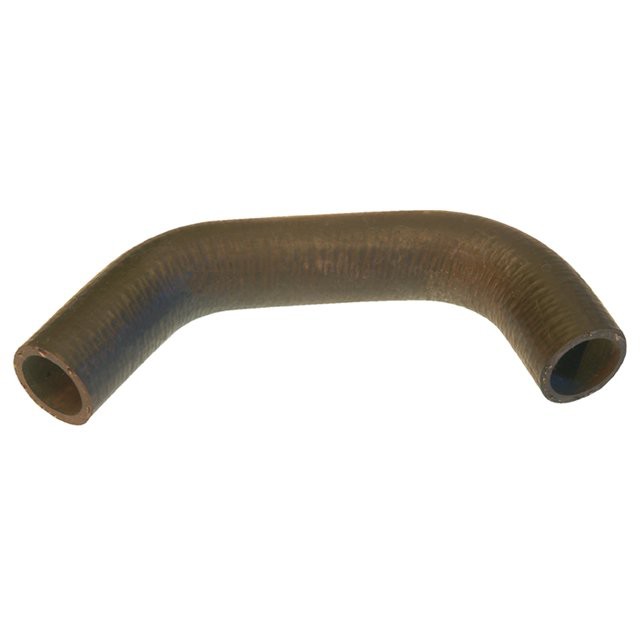

GATES RADIATOR COOLANT HOSE MOLDED

Additional Info: Gates Molded Coolant Hose is manufactured to fit specific applications. Similar to OEM specifications. Approved for marine applications. Recommend for upper, lower, by-pass, heater and other coolant hose applications. Heat and ozone resistant cover. Engineered to resist electrochemical degradation - the leading cause of hose failure. Re-engineered materials resist vacuum collapse. This reduces the need for internal springs in many applications. Meets SAE 20R4 and 20R3 Type EC Class D-1 and D-2 specifications. Temperature Rating: -40Deg F to 275Deg F (-40Deg C to 135Deg C) in coolant hose applications. Note: Gates recommends replacing standard worm drive and spring loaded clamps with Gates PowerGrip(R) SB Clamps each time a new coolant hose is installed. Gates - Driven By Possibility 1. Package Dimensions: 9.04 x 3.39 x 2.50 inches 2. UPC: 072053051346 3. Centerline Length: 11.3 IN 4. Centerline Length: 287 MM 5. Contains Spring: No 6. Inside Diameter 1: 1.25 IN 7. Inside Diameter 1: 32 MM 8. Modular Hose: No 9. Number of Branches: 0 10. Country of Origin: US

Specifications

Re-manufactured or New: New

From-To:		Make:	Model:	Sub:	Engine:	Notes:
1984	1984	Buick	Skyhawk	all	1.8L	Radiator Coolant Hose; 112cid L4 FI MFI Turbo VIN:J; PerVeh: 1;
1982	1982	Buick	Skyhawk	all	1.8L	Radiator Coolant Hose; 112cid L4 FI TBI SOHC VIN:0; PerVeh: 1;
1984	1984	Buick	Skyhawk	all	1.8L	Radiator Coolant Hose; 112cid L4 FI TBI VIN:0; PerVeh: 1;
1983	1983	Buick	Skyhawk	all	1.8L	Radiator Coolant Hose; 112cid L4 FI VIN:0; PerVeh: 1;
1985	1986	Buick	Skyhawk	all	1.8L	Radiator Coolant Hose; 112cid L4 MFI Turbo VIN:J; PerVeh: 1;
1985	1986	Buick	Skyhawk	all	1.8L	Radiator Coolant Hose; 112cid L4 TBI VIN:0; PerVeh: 1;
1962	1967	Chevrolet	Chevy II	all	2.5L	Radiator Coolant Hose; 153cid L4; PerVeh: 1;
1962	1963	Chevrolet	Chevy II	all	3.2L	Radiator Coolant Hose; 194cid L6; PerVeh: 1;
1964	1965	Chevrolet	G10 Van	all	3.2L	Radiator Coolant Hose; 194cid L6; PerVeh: 1;
1974	1974	Fiat	124	all	1.8L	Radiator Coolant Hose; 107cid L4; PerVeh: 1;
1974	1974	Fiat	124	all	1.8L	Radiator Coolant Hose; L4; PerVeh: 1;
1965	1965	GMC	G1000 Series	all	3.2L	Radiator Coolant Hose; 194cid L6; PerVeh: 1;
1982	1982	Oldsmobile	Firenza	all	1.8L	Radiator Coolant Hose; 112cid L4 FI TBI SOHC VIN:0; PerVeh: 1;
1983	1984	Oldsmobile	Firenza	all	1.8L	Radiator Coolant Hose; 112cid L4 FI VIN:0; PerVeh: 1;
1985	1986	Oldsmobile	Firenza	all	1.8L	Radiator Coolant Hose; 112cid L4 VIN:0; PerVeh: 1;
1962	1964	Pontiac	Acadian	all	2.5L	Radiator Coolant Hose; 153cid L4; PerVeh: 1;
1966	1967	Pontiac	Acadian	all	2.5L	Radiator Coolant Hose; 153cid L4; PerVeh: 1;
1962	1963	Pontiac	Acadian	all	3.2L	Radiator Coolant Hose; 194cid L6; PerVeh: 1;
1982	1982	Pontiac	J2000	all	1.8L	Radiator Coolant Hose; 112cid L4 FI TBI SOHC VIN:0; PerVeh: 1;
1983	1983	Pontiac	J2000	all	1.8L	Radiator Coolant Hose; 112cid L4 FI VIN:0; PerVeh: 1;
1984	1985	Pontiac	J2000 Sunbird	all	1.8L	Radiator Coolant Hose; 112cid L4 MFI Turbo VIN:J; PerVeh: 1;
1984	1985	Pontiac	J2000 Sunbird	all	1.8L	Radiator Coolant Hose; 112cid L4 TBI VIN:0; PerVeh: 1;
1986	1986	Pontiac	Sunbird	all	1.8L	Radiator Coolant Hose; 112cid L4 MFI Turbo VIN:J; PerVeh: 1;
1986	1986	Pontiac	Sunbird	all	1.8L	Radiator Coolant Hose; 112cid L4 TBI VIN:0; PerVeh: 1;
1999	2000	Suzuki	Esteem	all	1.8L	Radiator Coolant Hose; L4 VIN:4; PerVeh: 1;
2001	2001	Suzuki	Esteem	all	1.8L	Radiator Coolant Hose; L4 VIN:4; PerVeh: 1;
2002	2002	Suzuki	Esteem	all	1.8L	Radiator Coolant Hose; L4 VIN:4; PerVeh: 1;

Information
GA PF004-13
Home
Home
Resources
Resources
Home

ALLIS CHALMERS	4309132
CHRYSLER OE	4273708
GENERAL MOTORS CORP	3780492
GENERAL MOTORS CORP	3788533
GENERAL MOTORS CORP	3820508
GENERAL MOTORS CORP	3790492
GENERAL MOTORS CORP	10023509
GENERAL MOTORS CORP	10027448
GENERAL MOTORS CORP	10032630
GENERAL MOTORS OE	10032630
GENERAL MOTORS OE	10027448
GENERAL MOTORS OE	10023509
GENERAL MOTORS OE	3790492
GENERAL MOTORS OE	3820508
GENERAL MOTORS OE	3788533
GENERAL MOTORS OE	3780492
ISUZU OE	9913361
ISUZU OE	09913361
MOPAR BRAND	BH 1046
MOPAR BRAND	BH 904
MOPAR BRAND	H0061311
OEM	9913361
OEM	1785465G20
OEM	3820508
OEM	3790492
OEM	3788533
OEM	3780492
OEM	4273708
OEM	4309132
OEM	10023509
OEM	1537172851
OEM	10032630
OEM	10027448
SUZUKI OE	17854 65G20
SUZUKI OE	1785465G20
ACDELCO	10023509
ACDELCO	10027448
ACDELCO	10032630
ACDELCO	3780492
ACDELCO	3788533
ACDELCO	3790492
ACDELCO	3820508
ACDELCO NON GM	20027S
ACDELCO PROFESSIONAL	20027S
ACDELCO PROFESSIONAL CANADA	20027S
ACDELCO US	20027S
AFTERMARKET PRODUCTS	20027S
AFTERMARKET PRODUCTS	20476
AFTERMARKET PRODUCTS	14 1612 6
AFTERMARKET PRODUCTS	1416126
AFTERMARKET PRODUCTS	287
AFTERMARKET PRODUCTS	355
AFTERMARKET PRODUCTS	41241
AFTERMARKET PRODUCTS	41311
AFTERMARKET PRODUCTS	41327
AFTERMARKET PRODUCTS	51313763
AFTERMARKET PRODUCTS	54 00478
AFTERMARKET PRODUCTS	5400478
AFTERMARKET PRODUCTS	60631
AFTERMARKET PRODUCTS	60809
AFTERMARKET PRODUCTS	61241
AFTERMARKET PRODUCTS	61311
AFTERMARKET PRODUCTS	61327
AFTERMARKET PRODUCTS	70355
AFTERMARKET PRODUCTS	70817
AFTERMARKET PRODUCTS	7281
AFTERMARKET PRODUCTS	70839
AFTERMARKET PRODUCTS	77 8776 5
AFTERMARKET PRODUCTS	77 8828 4
AFTERMARKET PRODUCTS	7787765
AFTERMARKET PRODUCTS	7788284
AFTERMARKET PRODUCTS	BH 1046
AFTERMARKET PRODUCTS	BH 904
AFTERMARKET PRODUCTS	BH1046
AFTERMARKET PRODUCTS	BH904
AFTERMARKET PRODUCTS	C0476
AFTERMARKET PRODUCTS	CH476
AFTERMARKET PRODUCTS	H0061311
AFTERMARKET PRODUCTS	KM 1427
AFTERMARKET PRODUCTS	KM 1577
AFTERMARKET PRODUCTS	KM 1592
AFTERMARKET PRODUCTS	KM 520
AFTERMARKET PRODUCTS	KM 535
AFTERMARKET PRODUCTS	KM 685
AFTERMARKET PRODUCTS	KM1427
AFTERMARKET PRODUCTS	KM1577
AFTERMARKET PRODUCTS	KM1592
AFTERMARKET PRODUCTS	KM520
AFTERMARKET PRODUCTS	KM535
AFTERMARKET PRODUCTS	KM685
AFTERMARKET PRODUCTS	MH 3476
AFTERMARKET PRODUCTS	MR950
AFTERMARKET PRODUCTS	MH3476
AFTERMARKET PRODUCTS	MR685
AFTERMARKET PRODUCTS	MR778
ATLAS	MH3476
ATLAS	MH 3476
ATLAS CANADA	MH3476
AUTOZONEDAYCO	70839
CADNA ARMORMARK	80910
CADNA PRESTONE	80910
CARQUEST	20476
CARQUESTGATES	20476
CONTINENTAL ELITE	61327
CONTINENTAL ELITE	62621
CONTINENTAL ELITE	61311
CONTINENTAL ELITE	61241
CONTINENTAL ELITE	60809
CONTINENTAL ELITE	60631
CONTINENTAL ELITE	287
DAYCO PRIVATE LABEL	355
DAYCO PRIVATE LABEL	70355
DAYCO PRIVATE LABEL	B70839
DAYCO PRIVATE LABEL	B70817
DAYCO PRODUCTS LLC	B70817
DAYCO PRODUCTS LLC	B70839
DAYCO PRODUCTS LLC	70839
DAYCO PRODUCTS LLC	70355
DAYCO PRODUCTS LLC	70817
DAYCO PRODUCTS LLC	355
DURKEE	41327
DURKEE	41311
DURKEE	41241
DURKEE	MR685
DURKEE	MR778
DURKEE	MR950
FRESHSTART	62621
FRESHSTART	61311
FRESHSTART	287
GATES	MH0476
GATES	CH476
GATES CANADA	CH476
GATES CANADA	20476
GENERAL MOTORS AU	10032630
GENERAL MOTORS AU	10027448
GENERAL MOTORS AU	10023509
GENERAL MOTORS AU	3788533
GENERAL MOTORS AU	3780492
GENERAL MOTORS AU	3820508
GENERAL MOTORS AU	3790492
GENUINE GM PARTS CANADA	3780492
GENUINE GM PARTS CANADA	3788533
GENUINE GM PARTS CANADA	3790492
GENUINE GM PARTS CANADA	3820508
GENUINE GM PARTS CANADA	10023509
GENUINE GM PARTS CANADA	10027448
GENUINE GM PARTS CANADA	10032630
GOODYEAR TIRES	287
GOODYEAR TIRES	61311
GOODYEAR TIRES	60809
GOODYEAR TIRES	61241
GOODYEAR TIRES	62621
GOODYEAR TIRES	61327
GOODYEAR TIRES	60631
KUBOTA	1537172851
MIGHTY	287
MIGHTY ARCHIVE	287
MOPAR PARTS	BH904
MOPAR PARTS	BH1046
MOPAR PARTS	BH 1046
MOPAR PARTS	BH 904
MOPAR PARTS	H0061311
MOTORCRAFT	KM 1427
MOTORCRAFT	KM 535
MOTORCRAFT	KM 520
MOTORCRAFT	KM 1592
MOTORCRAFT	KM 1577
MOTORCRAFT	KM685
MOTORCRAFT	KM535
MOTORCRAFT	KM520
MOTORCRAFT	KM1592
MOTORCRAFT	KM1577
MOTORCRAFT	KM1427
MOTORCRAFT	KM 685
MOTORCRAFT BASE	KM 685
MOTORCRAFT BASE	KM1427
MOTORCRAFT BASE	KM1577
MOTORCRAFT BASE	KM1592
MOTORCRAFT BASE	KM520
MOTORCRAFT BASE	KM535
MOTORCRAFT BASE	KM685
MOTORCRAFT BASE	KM 1577
MOTORCRAFT BASE	KM 1592
MOTORCRAFT BASE	KM 520
MOTORCRAFT BASE	KM 535
MOTORCRAFT BASE	KM 1427
NAPA	7281
NAPA CANADABELTS AND HOSE URA	7281
NAPABELTS and HOSE NBH	7281
OETECHNOLOGY SERIES	80910
OPTIMA BATTERY PRIVATE LABEL	1416126
PARTS MASTERCADNA	80910
PRONTOCADNA	80910
STANT	20476
ULTRALAST	C0476
VERA	5400478
VERA	54 00478
WESTERN AUTO	7787765
WESTERN AUTO	77 8828 4
WESTERN AUTO	77 8776 5
WESTERN AUTO	7788284
